About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

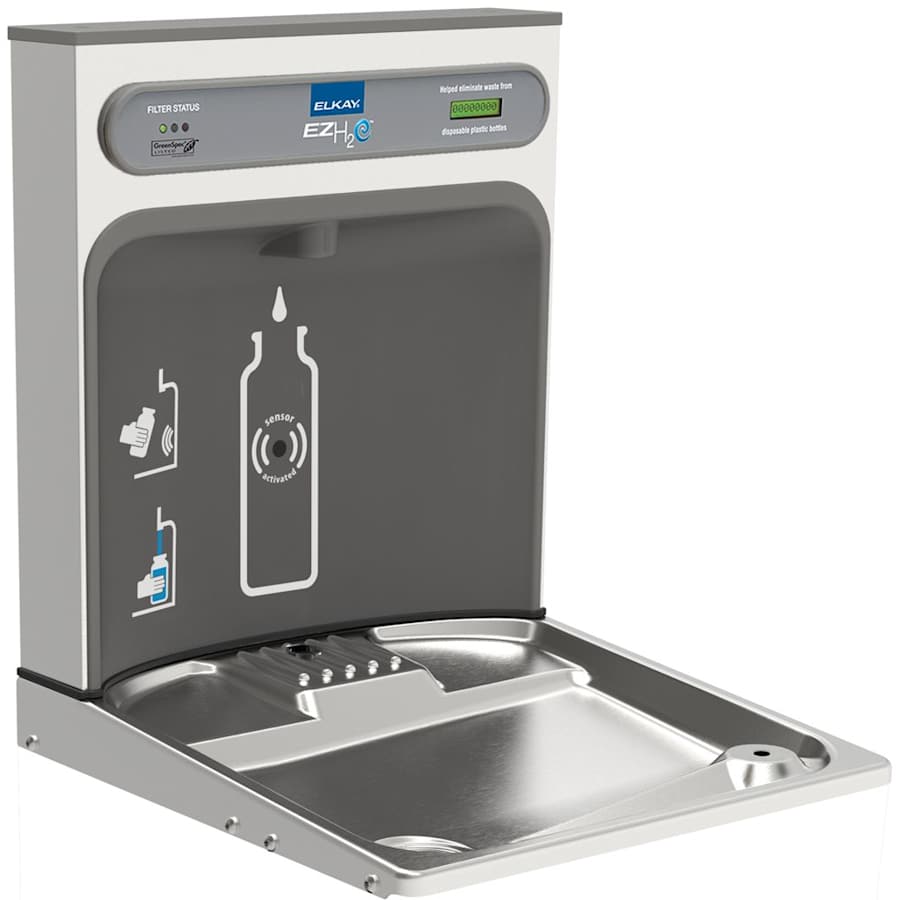

Elkay LMABFWS-RF Features:
Single bottle filler and drinking fountain RetroFit kit
Constructed of stainless steel, ensuring durability and dependability
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Sanitary, no-touch, sensor activation with automatic 20 second shut-off timer
Secure mounting frame assembly included
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Covered under Elkay’s 1 year limited warranty for electrical components
Elkay LMABFWS-RF Technologies / Benefits:
Filters
With wirelessly accessible sensors, ezH20 filters are easier to replace. Upon replacement, the filter monitor is automatically reset.
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay LMABFWS-RF Specifications:
Height: 18-7/8″ (measured from lowest rim to top rim of fixture)
Length: 17-7/8″ (measured from most left to most right rim of fixture)
Depth: 18-1/2″ (measured from back to front of fixture)
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.5
Voltage: 115V/60Hz
Filter: Yes
Number of Stations: 1
ADA Compliant: Yes
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 18.875 in. |
| Width | 3.5625 in. |
| Length | 17.875 in. |
| Product Weight | 23 lbs. |
| Flow Rate (GPM) | 0.13, 1.1 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Material | ABS, Stainless Steel |
| Thermostat | Modern |
| Insulation Type | Wall Mounted |
| Energy Efficient | Yes |
| Control Type | Electronic |
| Vandal Resistant | No |
| Antimicrobial | Yes |
| Pet Friendly | No |
| Filtered | Yes |
| Freeze Resistant | No |
| Hands Free | Yes |
| Number of Stations | 1 |
| Bi-Level | No |
| Wattage | 15 |
| Amperage | 1 |
| Collection | EZH2O |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Certifications | NSF, ANSI, ASME, UL |
| Manufacturer Warranty | 5 Year Limited |
| ASSE Code | A112.19.3 |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Cooling Unit | No |
| Bottle Filler Included | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
