About ezH20:
ezH20 Series
Combining energy savings, system diagnostics, and a clean sensor activated bottle filler, the EZH20 series offers an exceptional experience in any environment. With a wide array of single, bi-level, wall mounted, recessed, bottle filling combination or cooler units, this series will have something to suit your needs.

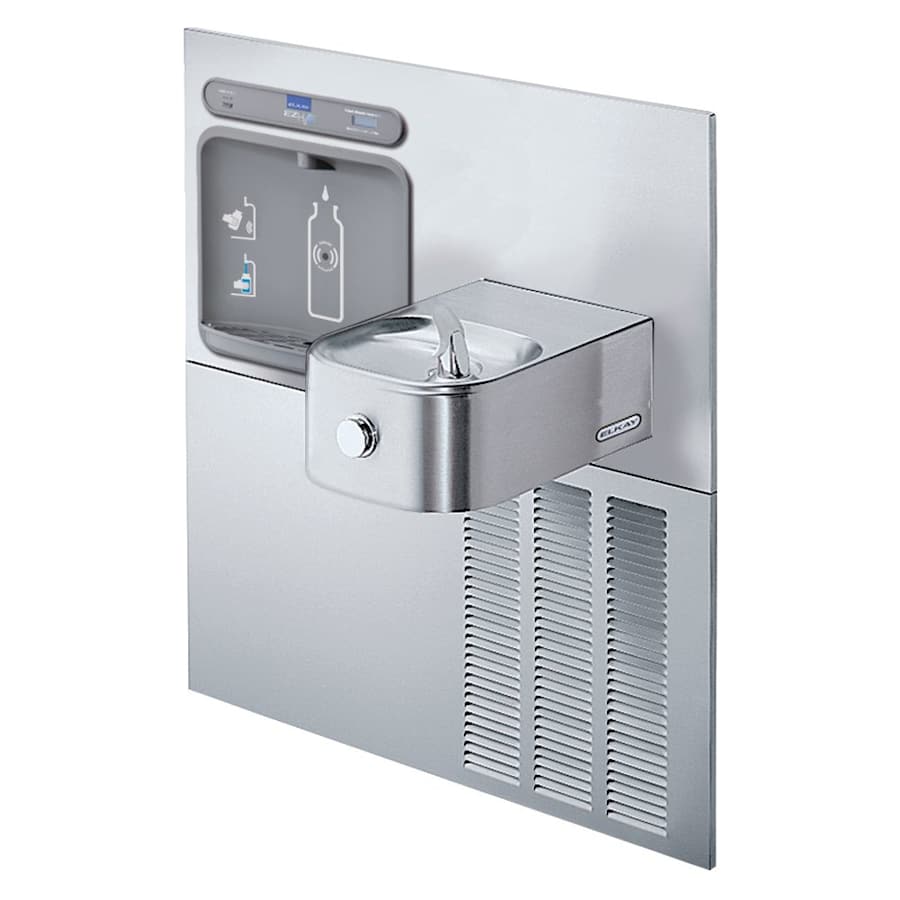

Elkay LZWS-ERFP8-RF Features:
Single non-refrigerated drinking fountain and bottle filler Retrofit kit in an ADA compliant design
Integrated Silver Ion Anti-microbial Protection in key areas
Vandal-resistant, easy to operate front push-button control
Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer
Visual user interface display includes Green Ticker that counts the quantity of bottles saved from the landfill
Ideal for use in educational facilities, healthcare facilities, sport and fitness centers, airports or other commercial buildings
Covered under Elkay’s 1 year limited warranty for electrical components
Secure mounting frame assembly included
Elkay LZWS-ERFP8-RF Technologies / Benefits:
Filters
With wirelessly accessible sensors, ezH20 filters are easier to replace. Upon replacement, the filter monitor is automatically reset.
Ease of Installation
The ezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System
With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display
Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay LZWS-ERFP8-RF Specifications:
Height: 40-13/16″ (measured from lowest rim to top rim of fixture)
Length: 38-1/2″ (measured from most left to most right rim of fixture)
Width: 19-1/4″ (measured from back to front of fixture)
Installation Type: Recessed/Wall Mounted
Fountain Type: Non-refrigerated
Hands Free Bottle Filler Operation: Yes
Bottle Filler Flow Rate(GPM): 1.1
Fountain Flow Rate(GPM): .13
Voltage: 115V/60Hz
Filter: Yes
Number of Stations: 2
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 40.8125 in. |
| Width | 19.25 in. |
| Length | 38.5 in. |
| Product Weight | 55 lbs. |
| Flow Rate (GPM) | 0.13, 1.1 |
| Gauge | 18 |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Material | ABS, Stainless Steel |
| Thermostat | Modern |
| Insulation Type | Wall Mounted, Recessed |
| Energy Efficient | Yes |
| Control Type | Push Button |
| Vandal Resistant | No |
| Antimicrobial | Yes |
| Pet Friendly | No |
| Filtered | Yes |
| Freeze Resistant | No |
| Hands Free | Yes |
| Number of Stations | 2 |
| Bi-Level | No |
| Bubbler Type | FlexiGuard Safety |
| Wattage | 15 |
| Voltage | 115 |
| Amperage | 1 |
| Frequency | 60 Hertz |
| Collection | EZH2O, Soft Sides |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Location Rating | Dry Location |
| Outdoor Approved | No |
| Certifications | NSF, ANSI, ASME, UL |
| Manufacturer Warranty | 5 Year Limited |
| ASSE Code | A112.19.3 |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Cooling Unit | Yes |
| Bottle Filler Included | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
