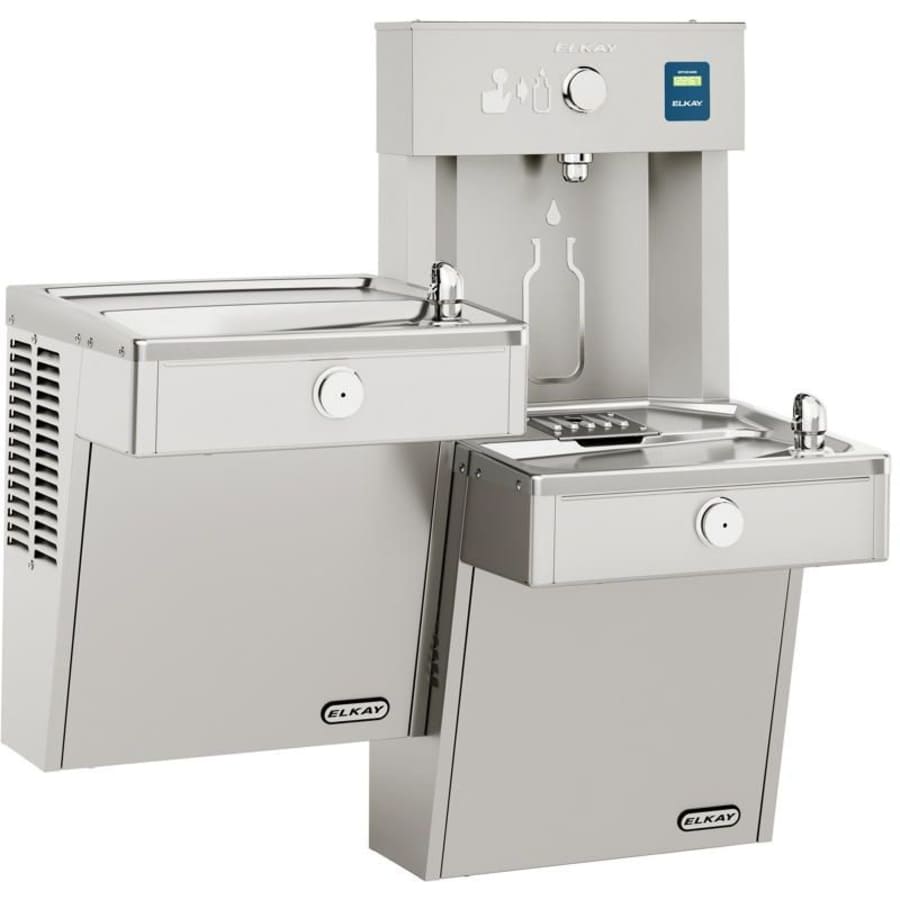

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles. Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation with automatic 20-second shut-off timer on bottle filler.
Elkay VRCTL8WSK Features:
Ideal for heavy-use installations such as educational and indoor recreational facilities
Vandal-resistant, push-button activation for both the bottle filler and the water cooler
Fill rate is 1.1 GPM
Green Ticker™ informs user of number of 20 oz plastic water bottles saved from waste
Laminar flow provides clean fill with minimal splash
Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering
Rated for indoor/outdoor use
Elkay VRCTL8WSK Technologies and Benefits:
Ease of Installation: TheezH20 are designed to be installed without any trouble. One connection is all you need to get operational and everything comes in one box.
Smart System: With new diagnostics, managers can monitor all stations and track savings across your facility.
Graphic Display: Graphic display shows water bottle count and provides user assistance to make maintenance easier.
Elkay VRCTL8WSK Specifications:
Height: 38-13/16″ (measured from lowest rim to top rim of fixture)
Length: 36-1/8″ (measured from most left to most right rim of fixture)
Width: 18-5/8″ (measured from back to front of fixture)
Fountain Type: Cooler
Installation Type: Wall Mounted
Bottle Filler Flow Rate(GPM): 1.1
Fountain Flow Rate(GPM): 0.13
Voltage: 115V/60Hz
Number of Stations: 2
ADA Compliant: Yes
Hands Free Operation: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Elkay EZH2O Collection
Specifications
| Height | 38.8125 in. |
| Product Weight | 114 lbs. |
| Width | 18.625 in. |
| Length | 36.125 in. |
| Flow Rate (GPM) | 0.13 |
| Gauge | 18 |
| Inside Diameter | 0.375 in. |
| Outside Diameter | 1.25 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Cooling Capacity | 8 GPH |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Energy Efficient | Yes |
| Control Type | Push Button |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | Yes |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| Collection | EZH2O |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| Made in America | Yes |
| Certifications | NSF, ANSI, ASME, UL, CSA |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Wet Location |
| Outdoor Approved | Yes |
| ASSE Code | A112.19.3 |
| Voltage | 115 |
| Wattage | 370 |
| Frequency | 60 Hertz |
| Amperage | 5 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
