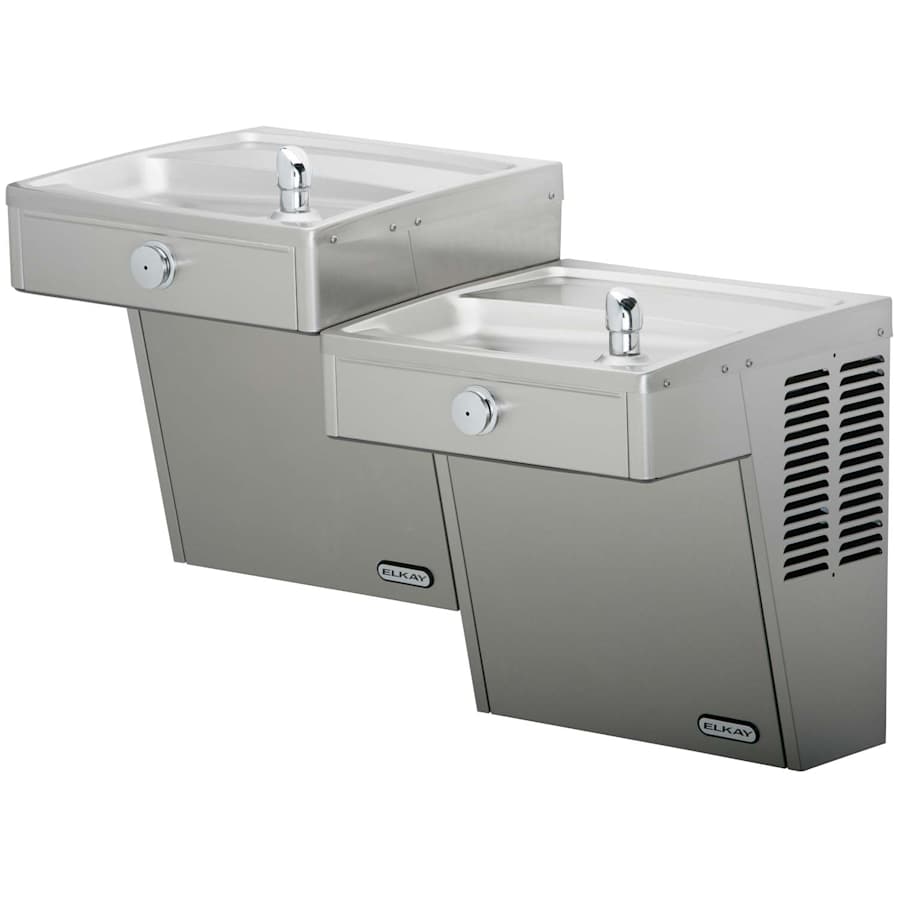

Elkay ADA Wall Mount Bi-Level Vandal Resistant Fountain
Elkay is sure to have a water cooler or drinking fountain that will meet or exceed your specifications.
Product Features:
Two-Level Wall mounted drinking fountain
Vandal-resistant unit
Rated for indoor or outdoor use
Flow regulator provides constant stream from 20 to 105 psi water pressure
Heavy duty push button control is vandal-resistant
Non-pressurized cooling tank is standard
Non-pressurized water tank is located after bubbler valve (so that tank is subject to line pressure only when valve button is pressed)
ADA compliant
No lead design
Construction
Frame – Galvanized structural steel chassis supports fountain top and cabinet panels
Fountain Top – One piece Stainless steel top. Basin has embossed bubbler pad
Vandal-Resistant Bubbler – Heavy duty, one piece construction. Keyed into position to prevent rotation
Cabinet – Cabinet design allows for flush to Wall mounting. No recess space is required. Includes bottom cover plate fastened with vandal-resistant screws
Product Specifications:
Base Flow Rate: 0
Rated Watts: 0
Full Load Amps: 0
Shipping Weight: 56 lbs
Fountain Type: Standard
Installation Type: Wall
Hands Free Operation: No
Voltage: 0
Height: 26-1/8″
Depth: 18-5/8″
Vandal Resistant Bubbler: Yes
Freeze Protection: No
Glass Filler: No
Filtered: No
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 38.8125 in. |
| Product Weight | 86 lbs. |
| Width | 18.625 in. |
| Length | 36.125 in. |
| Flow Rate (GPM) | .13 |
| Gauge | 18 |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 20 PSI |
| Material | Stainless Steel |
| Insulation Type | Wall Mounted |
| Control Type | Push Button |
| Filtered | No |
| Freeze Resistant | No |
| Number of Stations | 2 |
| Pet Friendly | No |
| Vandal Resistant | Yes |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| Made in America | Yes |
| Certifications | NSF, ANSI, ASME, UL |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Location Rating | Wet Location |
| Outdoor Approved | Yes |
| ASSE Code | A112.19.3 |
| Voltage | 115 |
| Wattage | 15 |
| Frequency | 50 Hertz |
| Amperage | 1 |
| Bottle Filler Included | No |
| Cooling Unit | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
