All Emtek items are made to order.
Double Cylinder Function: The deadbolt is thrown and retracted by a key from either side. As you will not be able to unlock this from the inside without a key, please check your local fire code to ensure this is allowed before purchasing.
Features:
Constructed of solid brass for premium feel and durability
Installs on doors with 1-1/2″ to 1-7/8″ thickness
Includes a selection of round corner or square corner faceplate
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Solid BrassConstruction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″ to 2-5/8″
Trim Width: 2-1/2″
Trim Height: 2-1/2″
Latch Faceplate: Square Corner, Round Corner
Material: Brass
Cylinder: 5 Pin Schlage C
Product Variations:
8580: One Sided Deadbolt
8426: Single Cylinder Deadbolt

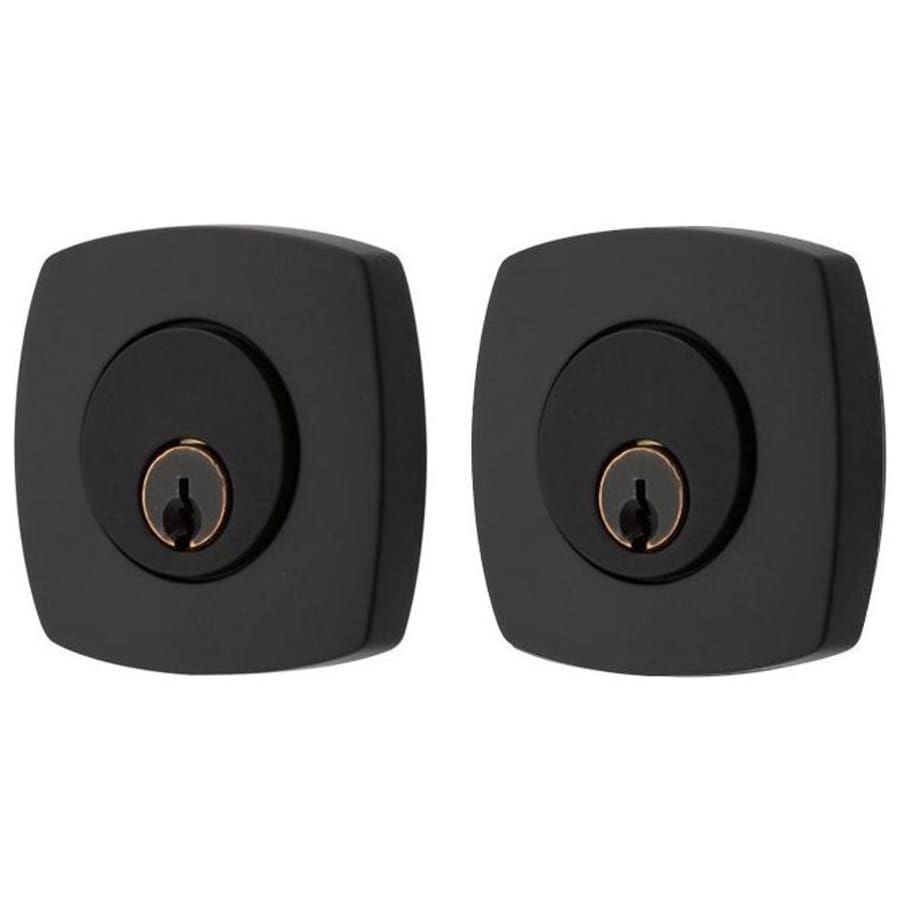

8326 (This Model): Double Cylinder Deadbolt
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Urban Modern Collection
Specifications
| Thermostat | Modern |
| Material | Brass |
| Concealed Screws | No |
| Function | Keyed Entry |
| Latch Faceplate | Round Corner, Square Corner |
| Rosette Shape | Square |
| Solid Construction | Solid Brass |
| Keyway | C |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Double Cylinder |
| Removable Core | No |
| Collection | Urban Modern |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Approved for Commercial Use | No |
| Series | Urban Modern |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/8", 2-5/8" |
| Backset | 2-3/4", 2-3/8" |
| Edge Bore | 1" |
| Exterior Height | 2.5 in. |
| Exterior Projection | 0.5 in. |
| Exterior Width | 2.5 in. |
| Interior Height | 2.5 in. |
| Interior Projection | 0.5 in. |
| Interior Width | 2.5 in. |
| Cylinder Included | Yes |
| Color | Flat Black, Oil Rubbed Bronze, Polished Chrome, Polished Nickel, Satin Brass, Satin Nickel, Unlacquered Brass |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
