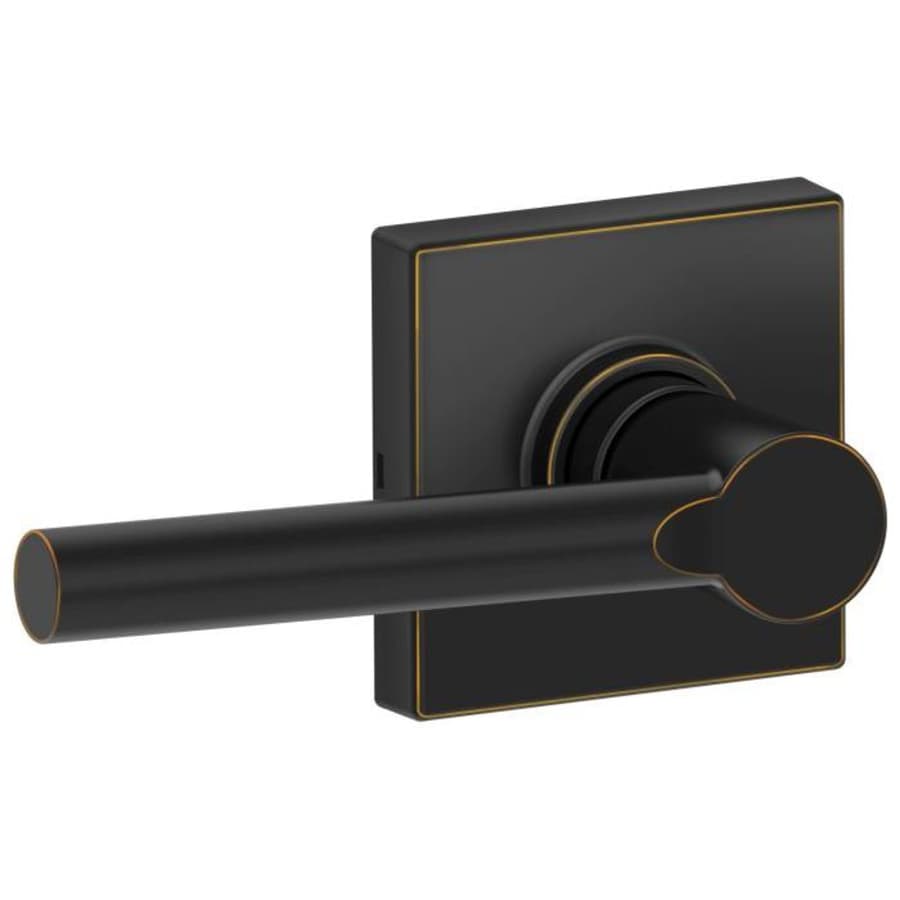

Passage Function: Both sides of this lever are always free and there is no locking function making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. A passage lever can also be used in conjunction with a deadbolt to secure a back door or entrance.
Â
Features:
Exceeds criteria for BHMA Grade 3 certification
Quality craftsmanship ensures durability and premium feel
Reversible handing installs on both left and right handed doors
Easily installs on any standard prepared door with one screwdriver
Includes a round corner and drive-in latch faceplate
Covered under a limited lifetime mechanical and 5 year finish warranty
Complies with standards of the Americans with Disabilities Act (ADA)
All necessary mounting hardware is included
Product Technologies:
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
These levers are field reversible allowing this leverset to be used for both right and left handed applications with ease and eliminating any chance of getting a wrong handed product.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Handing: Reversible Left or Right
Door Thickness: 1-3/8″ to 1-3/4″
Handle Length: 4-3/8″
Handle Projection: 2-1/4″
Latch Faceplate: Drive-In or Round Corner
Material: Zinc
Product Variations:
J170-BRW-COL: Single Dummy Lever
J10-BRW-COL (This Model): Passage Door Lever Set
J40-BRW-COL: Privacy Door Lever Set
J54-BRW-COL: Single Cylinder Keyed Entry Door Lever Set
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Broadway Collection
Specifications
| Thermostat | Modern |
| Material | Zinc |
| Concealed Screws | No |
| Function | Passage |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner |
| Rosette Shape | Square |
| Lever Shape | Round, Straight |
| Handle Design | Broadway |
| Trim Design | Collins |
| Collection | Broadway |
| Certifications | ANSI |
| ADA | Yes |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Approved for Commercial Use | No |
| ANSI Certification | A156.2 |
| Fire Rated | No |
| Series | J-Series |
| BHMA Certification | Grade 3 |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Handle Projection | 2.25 in. |
| Trim Height | 2.5 in. |
| Trim Width | 2.5 in. |
| Handle Length | 4.375 in. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Edge Bore | 1" |
| 28 Degree Latch | No |
| Color | Aged Bronze, Bright Chrome, Matte Black, Satin Chrome, Satin Nickel |
| Color Tone | Blacks, Bronze Tones, Nickel Tones, Silver Tones |
