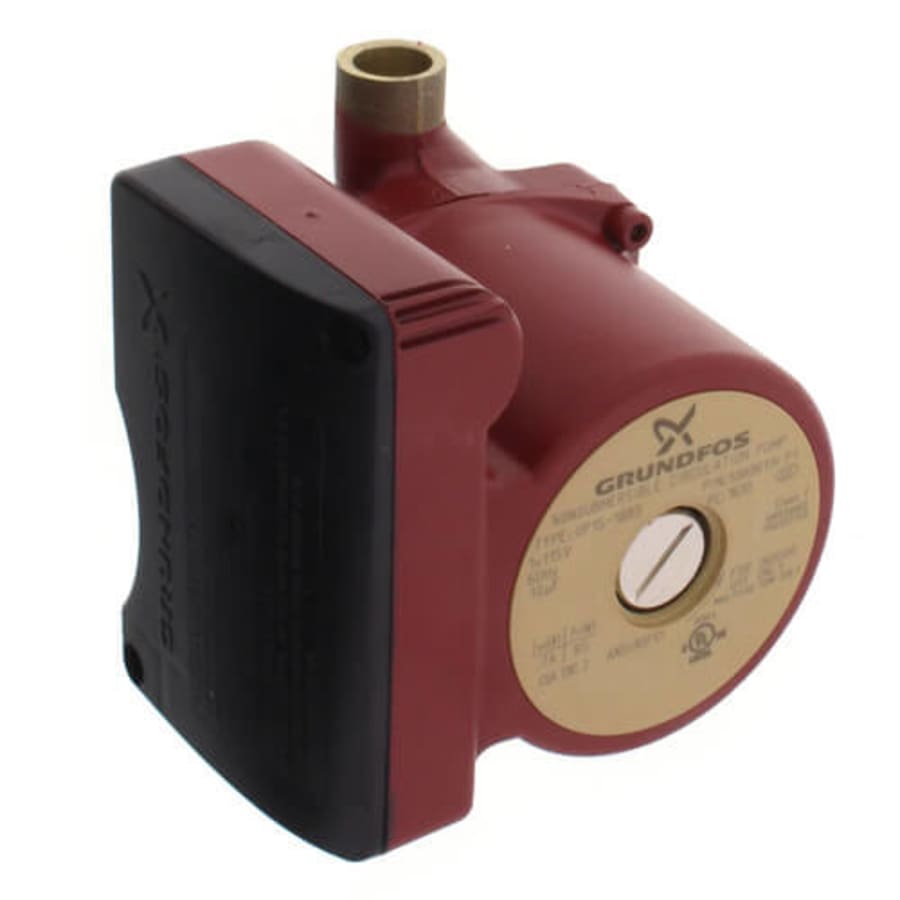

Grundfos UP Series 1/25 Horsepower Bronze Hot Water Recirculation Pump 115V

Grundfos UP 15-18 B5 Features:

Ceramic shaft and radial bearings
Carbon axial bearing
Stainless steel rotor can and bearing plate
Corrosion-resistant impeller constructed of composite and PES
Bronze pump housing
1-phase motor
No additional motor protection is required
UL and CSA approved

Grundfos UP 15-18 B5 Specifications:

Liquid temperature range: 36 to 230 Degrees F
Maximum operating pressure: 145 psi
Flange standard: USA Sweat
Type of connection: Bronze Sweat
Pipe connection: 1/2″
Pressure stage: 10
Port-to-port length: 5″
Number of poles: 2
Max. power input: 86 watts
Rated power: 1/25 HP
Main frequency: 60 Hz
Rated voltage: 115 V
Current in speed 3: 0.74 AMP
Capacitor size – run: 10 F/180 V
