Features:

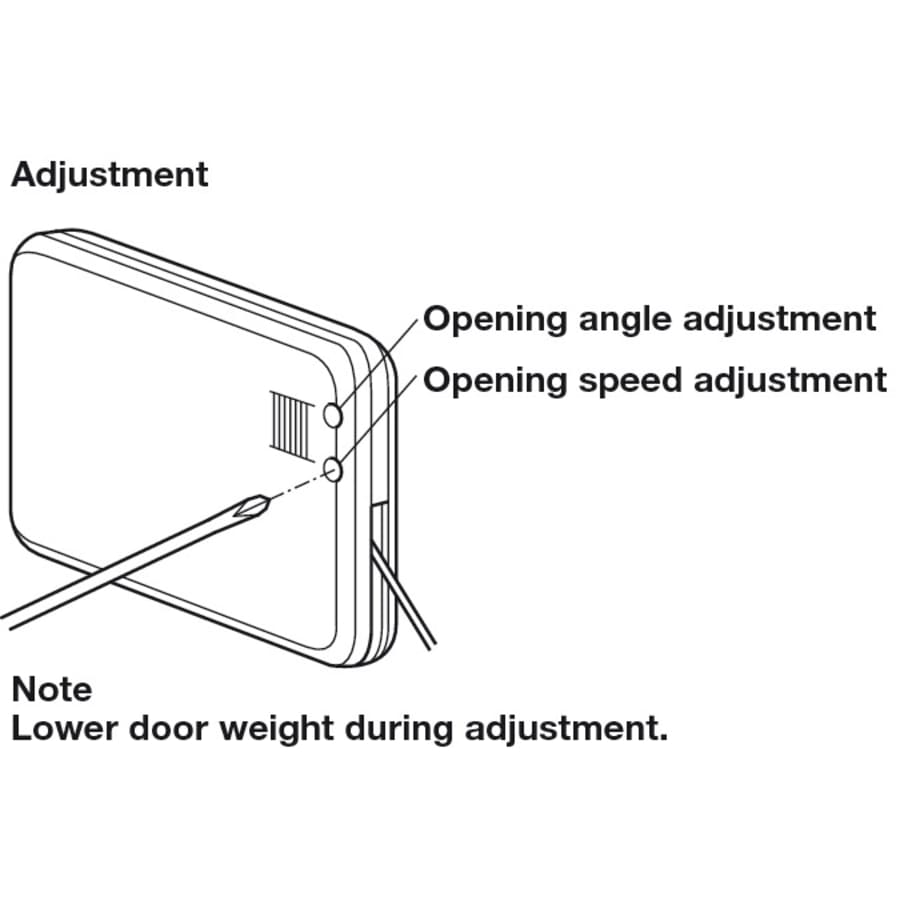

Adjustable opening angle and braking system
Equipped with soft open and close mechanism
Can be set up for left or right handed use
For flaps up to 16-15/16″ tall
Supports between 3.7 and 4.5 lbs (vertical) and 4.4 and 5.4 lbs (horizontal)
Specifications:
Height: 6-7/16″
Width: 3-1/2″
Depth: 15/16″

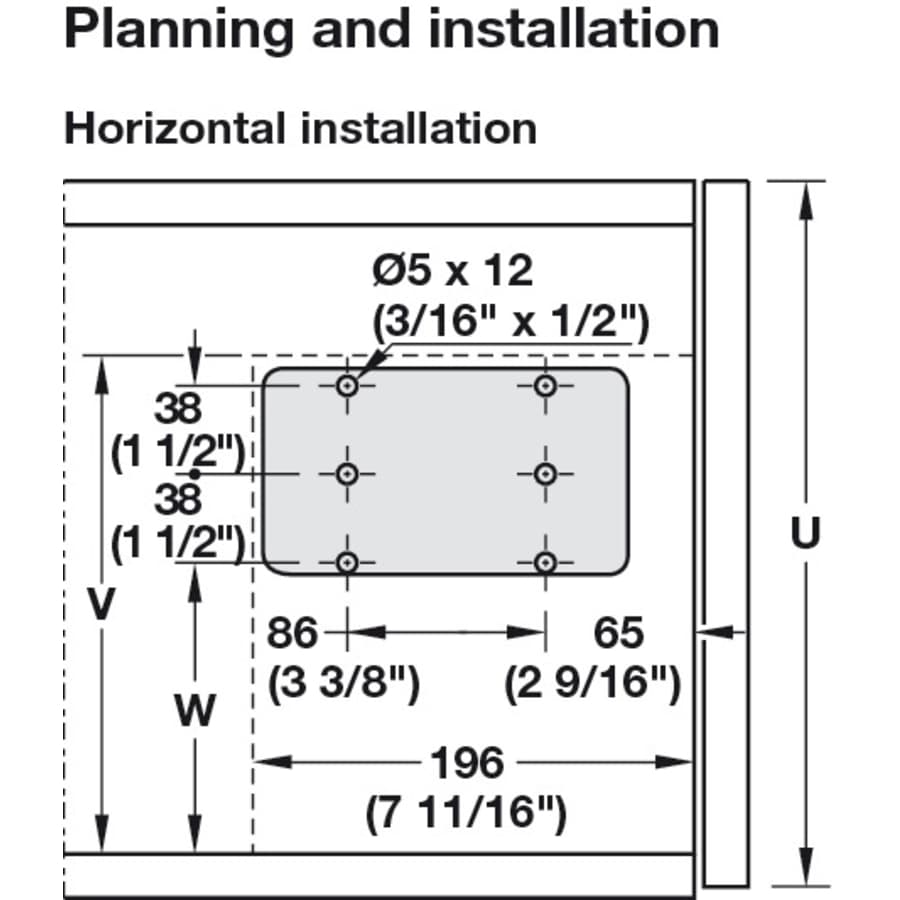

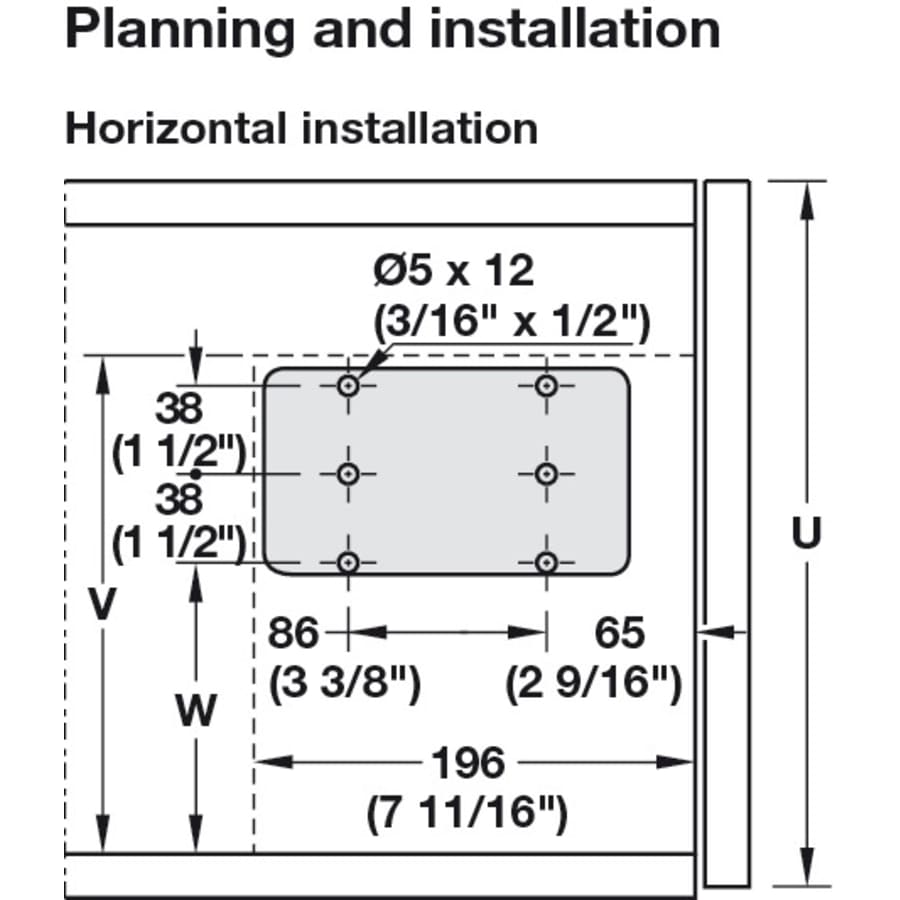

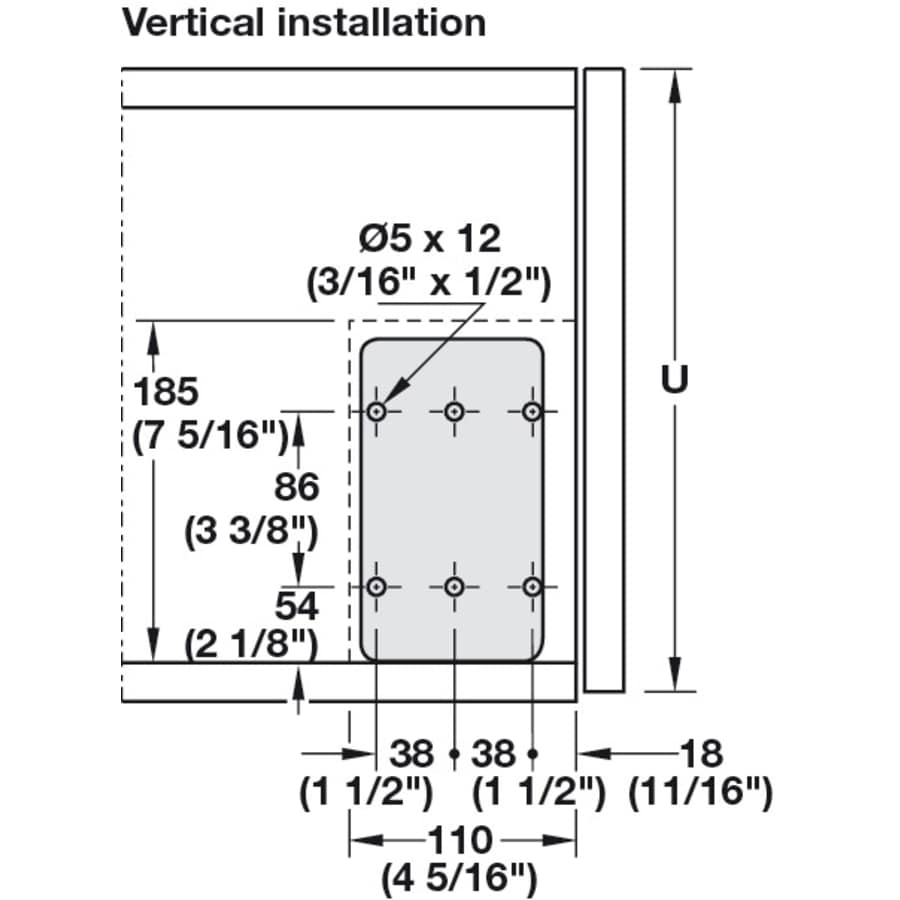

Minimum Cabinet Depth: 4-5/16″ (Vertical Installation) or 7-11/16″ (Horizontal Installation)
Weight Capacity (Vertical Installation) 3.7 lbs to 4.5 lbs
Weight Capacity (Horizontal Installation): 4.4 to 5.4 lbs
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele Miniwinch Collection
Specifications
Characteristics and Features
| Material | Plastic, Zinc |
| Soft Close | Yes |
| Self Closing | Yes |
Warranty and Product Information
| Approved for Commercial Use | No |
Dimensions and Measurements
| Depth | 0.9375 in. |
| Height | 6.4375 in. |
| Width | 3.5 in. |
| Max Capacity (Pounds) | 5.4, 4.5 lbs. |
| Color | Matte Silver |
| Color Tone | Silver Tones |
