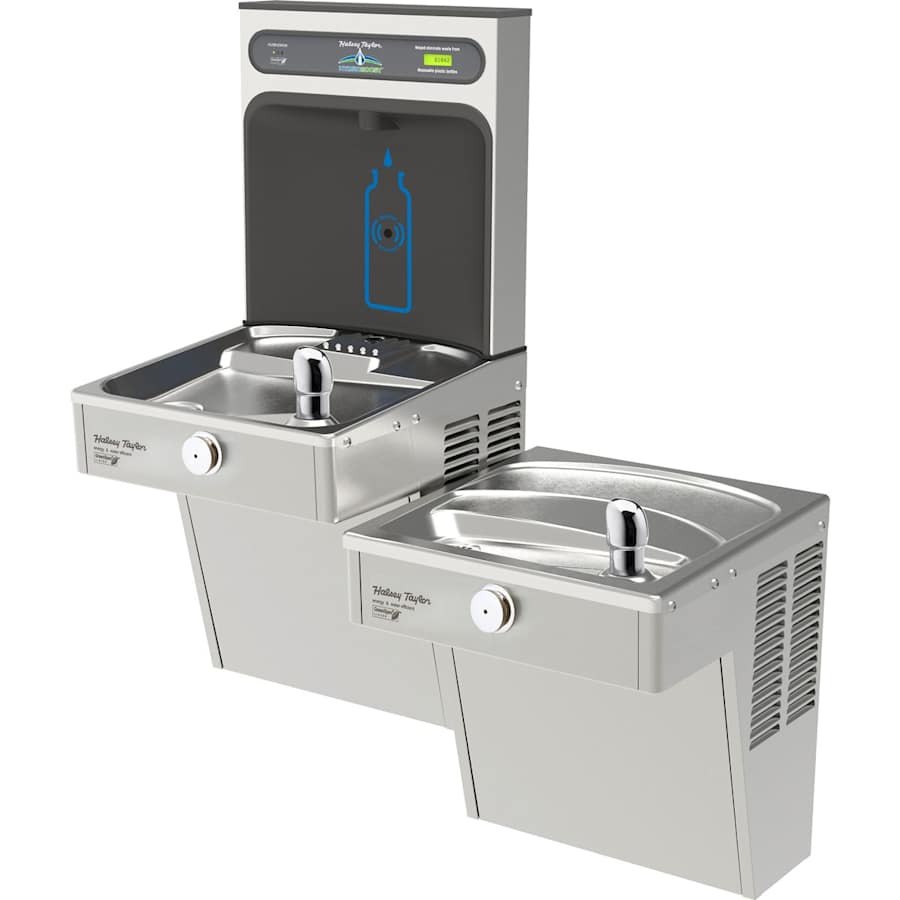

Halsey Taylor HTHB-HVRGRN8BL-WF Features:
Covered under Halsey Taylor’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
Bi-level drinking fountain station with wall panel
A cleanable strainer screen is provided to trap waterborne particulate of 140 microns or bigger prior to entering the cooler
Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew
Filter included
Sensor activated HydroBoost® bottle filling station with 1.1/1.5 GPM flow rate included
Vandal-resistant, easy to operate front push-button control
Valve with built-in flow regulator to provide constant stream from 40 to 105 psi water pressure
Barrier-free drinking station complies with ADA regulations
Halsey Taylor HTHB-HVRGRN8BL-WF Construction:
300 series nickel bearing stainless steel basin polished to a lustrous satin finish
Contoured basin offers large area to minimize splashing when in use
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Mounting frame is manufactured of corrosion resistant, galvanized steel. Open construction designed for ease of installation.
Vandal-resistant bubbler is one-piece with chrome plating
Halsey Taylor HTHB-HVRGRN8BL-WF Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Halsey Taylor HTHBHVRGRN8BLWF Specifications:
Base Cooling Capacity (GPH): 8
Rated Watts: 260
Full Load Amps: 3.8
Fountain Type: Non-Refrigerated
Installation: Wall Mounted
Voltage: 115
Height: 46-1/4″ (base to top of fixture)
Length: 36″ (left to most right rim of fixture)
Width: 18-5/8″ (back to front of fixture)
Bottle Filler: Yes
Vandal Resistant Bubbler: Yes
Additional Halsey Taylor Links
Browse all Halsey Taylor Products
Halsey Taylor HydroBoost Collection
Specifications
| Product Weight | 112 lbs. |
| Height | 46.25 in. |
| Width | 18.625 in. |
| Length | 36 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 40 PSI |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.5 in. |
| Cooling Capacity | 8 GPH |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Control Type | Push Button |
| Vandal Resistant | Yes |
| Antimicrobial | Yes |
| Bi-Level | Yes |
| Filtered | Yes |
| Hands Free | Yes |
| Number of Stations | 2 |
| Pet Friendly | No |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Collection | Yes |
| Certifications | NSF, ASME, UL |
| Location Rating | Dry Location |
| ADA | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Outdoor Approved | No |
| ASSE Code | A112.19.3 |
| Voltage | 115 |
| Wattage | 260 |
| Frequency | 60 Hertz |
| Amperage | 3.8 |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
