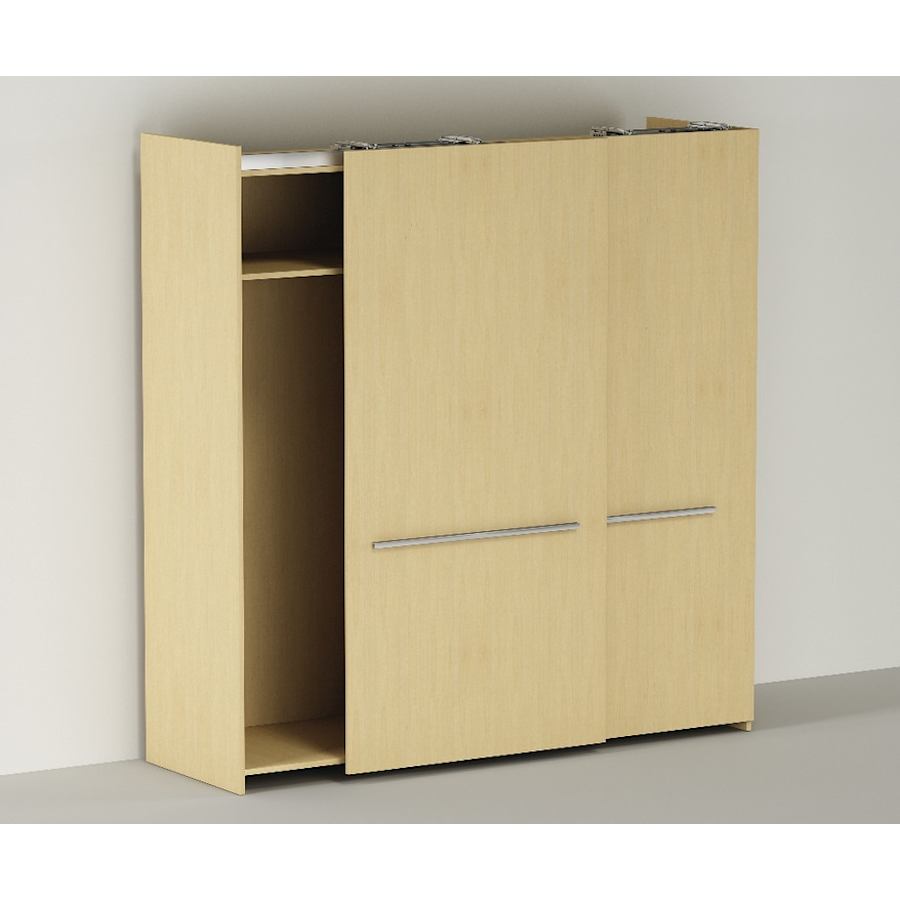

Hafele Frontino 40 Fitting Set for Two Coplanar Sliding Doors from the EKU Series

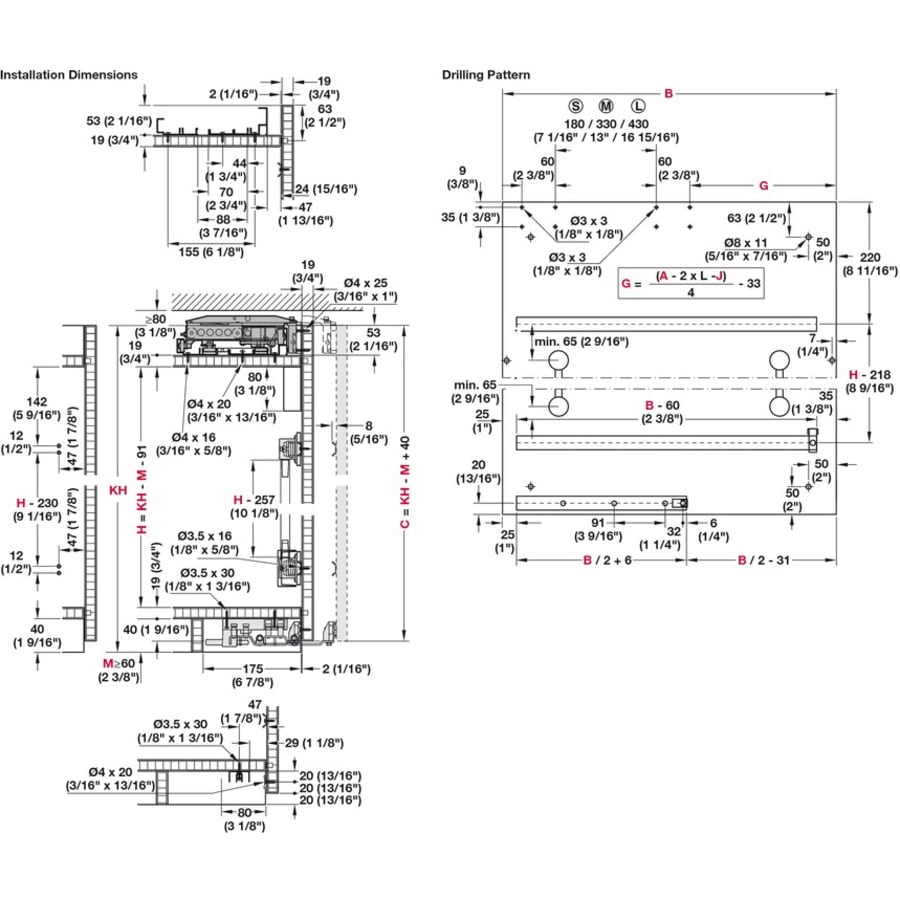

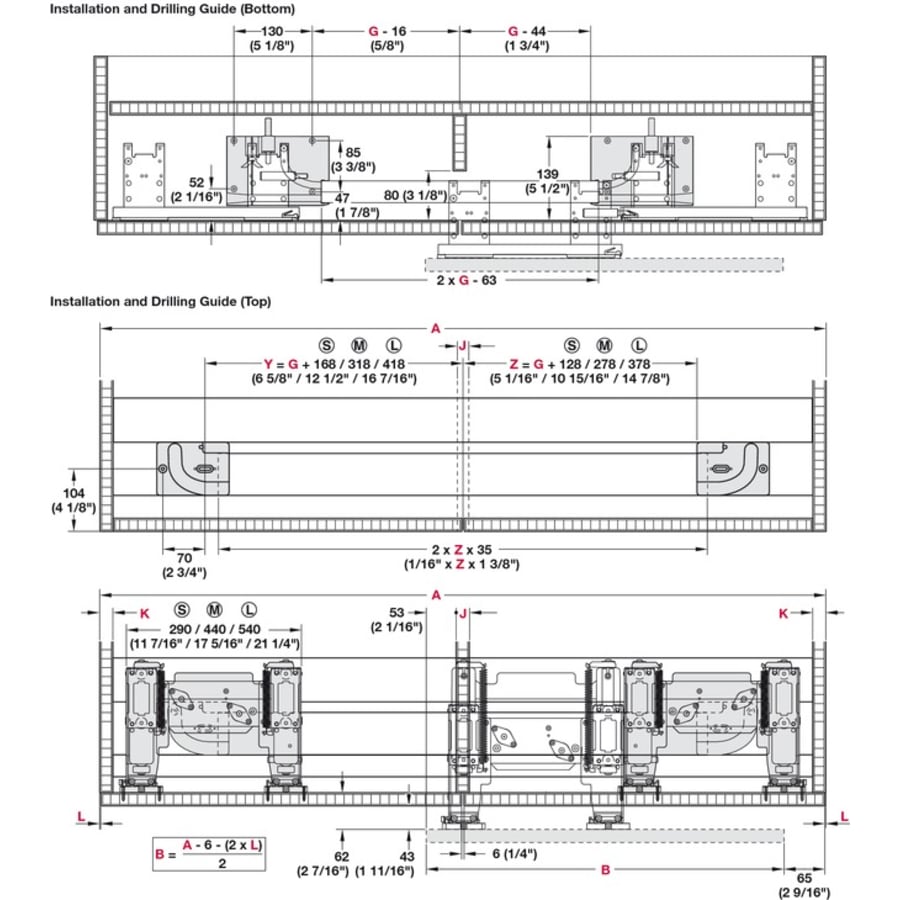

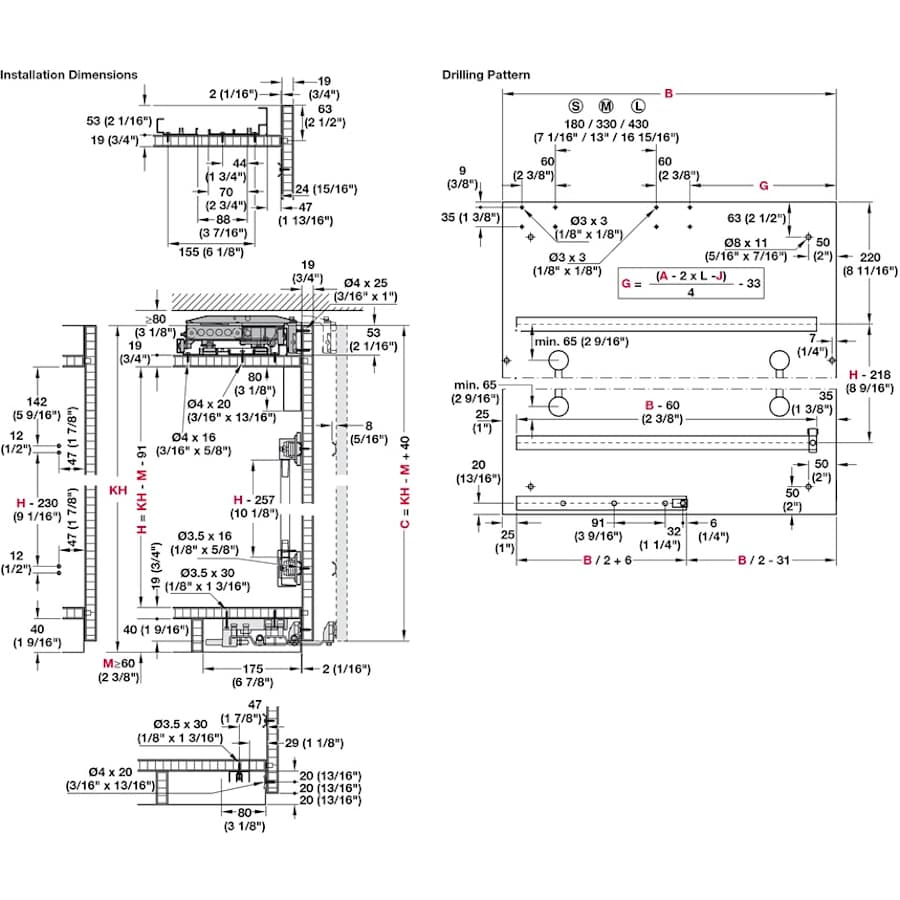

Cabinet doors must have identical dimensions. If the dimensions on the installation sheet are not adhered to the product may not work properly.

Features:

For cabinets from 47-1/4″ to 70-13/16″ wide
Intended for 3/4″ thick doors from 23-3/8″ to 35-3/16″ wide
Soft close technology is built in to prevent slamming
Supports doors up to 88 lbs
Mounts two sliding doors per kit

Kit Includes:

Running gears
Guides
Stopper
Soft Closing Mechanism
Running and Guide Track

Specifications:

Minimum Cabinet Width: 47-1/4″
Maximum Cabinet Width: 70-13/16″
Minimum Door Width: 23-3/8″
Maximum Door Width: 35-3/16″
Maximum Handle Height: 1-3/16″
Door Thickness: 3/4″
Max Capacity: 88 lbs
Number of Doors: 2
