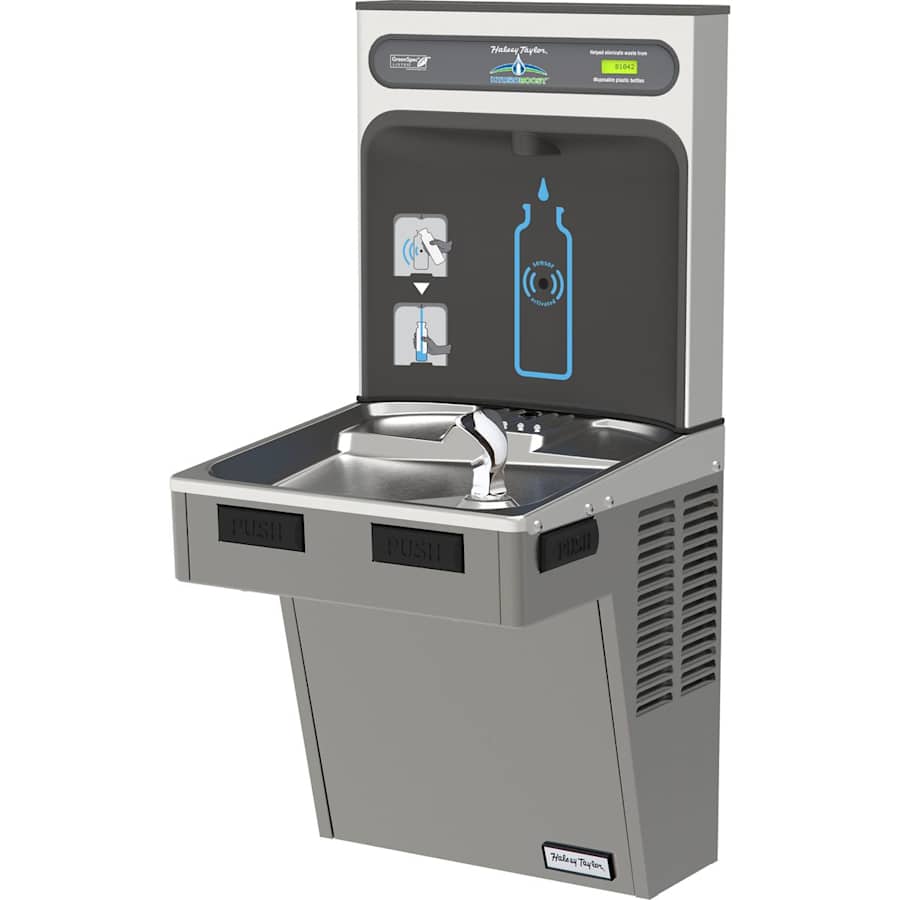

Halsey Taylor HTHB-HAC8-NF Features:
Covered under Halsey Taylor’s 5 year limited warranty on any refrigeration systems or 12 month limited warranty for electrical/water system components
Single station drinking fountain
A cleanable strainer screen is provided to trap waterborne particulate of 140 microns or bigger prior to entering the cooler
Key plastic components are integrated with silver ion anti-microbial protection to inhibit growth of mold and mildew
Sensor activated HydroBoost® bottle filling station with 1.1/1.5 GPM flow rate included
Front and side self-closing light-touch push-bars with raised letters for the visually impaired
Valve with built-in flow regulator to provide constant stream from 40 to 105 psi water pressure
Barrier-free drinking station complies with ADA regulations
Halsey Taylor HTHB-HAC8-NF Construction:
300 series nickel bearing stainless steel basin polished to a lustrous satin finish
Contoured basin offers large area to minimize splashing when in use
Stainless Steel Basin – One piece basin has integral drain grid, embossed bubbler pad. No exposed fasteners
Mounting frame is manufactured of corrosion resistant, galvanized steel. Open construction designed for ease of installation.
Double Bubbler™ with non-removable anti-squirt feature and integral hood
Halsey Taylor HTHB-HAC8-NF Cooling System:
Motor Compressor – Hermetically sealed, reciprocating type, single phase. Sealed in lifetime oil supply. Equipped with electric cord and three prong molded rubber plug
Condenser – Fan cooled, copper tube with aluminum fins. Fan motor is permanently lubricated
Cooling Unit – Combination tube-tank type. Tube portion is continuous coil of copper tubing. Fully insulated with EPS foam (UL listed for self-extinguishing material)
Refrigerant Control – Refrigerant type HFC-134a is controlled by accurately calibrated capillary tube for positively trouble free performance
Temperature Control – Enclosed adjustable thermostat is factory preset. Requires no adjustment other than for altitude requirements
Halsey Taylor HTHBHAC8NF Specifications:
Base Cooling Capacity (GPH): 8
Rated Watts: 260
Full Load Amps: 3.8
Fountain Type: Refrigerated
Installation: Wall Mounted
Voltage: 115
Height: 39-9/16″ (base to top of fixture)
Length: 18″ (left to most right rim of fixture)
Width: 18-1/2″ (back to front of fixture)
Bottle Filler: Yes
Additional Halsey Taylor Links
Browse all Halsey Taylor Products
Halsey Taylor HydroBoost Collection
Specifications
| Height | 39.5625 in. |
| Product Weight | 89 lbs. |
| Width | 18.5 in. |
| Length | 18 in. |
| Water Pressure (Max) | 105 PSI |
| Water Pressure (Min) | 40 PSI |
| Inside Diameter | .375 in. |
| Outside Diameter | 1.25 in. |
| Cooling Capacity | 8 GPH |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Control Type | Bar, Electronic |
| Antimicrobial | Yes |
| Vandal Resistant | No |
| Bi-Level | Yes |
| Filtered | No |
| Number of Stations | 1 |
| Pet Friendly | No |
| Hands Free | Yes |
| Approved for Commercial Use | Yes |
| Collection | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Location Rating | Dry Location |
| ADA | Yes |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Outdoor Approved | No |
| Certifications | NSF, ASME, UL |
| ASSE Code | A112.19.3 |
| Voltage | 115 |
| Wattage | 260 |
| Amperage | 3.8 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Bottle Filler Included | Yes |
| Cooling Unit | Yes |
| Color | Platinum Vinyl |
| Color Tone | Silver Tones |
