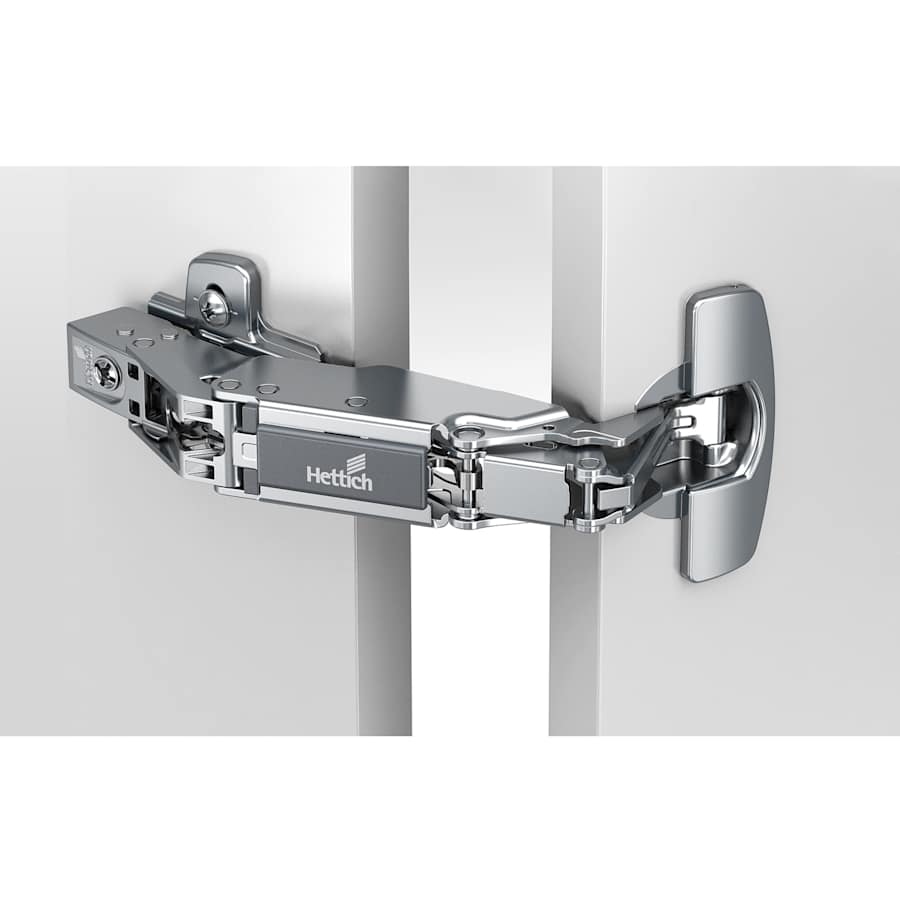

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel and zinc for durability and dependability
Doweled installation securely fastens hinges to material
Soft close function ensures your cabinet door will close quietly
3-way adjustable hinge for easy and customizable installation
Designed for a 165 degree opening angle
Specifications:

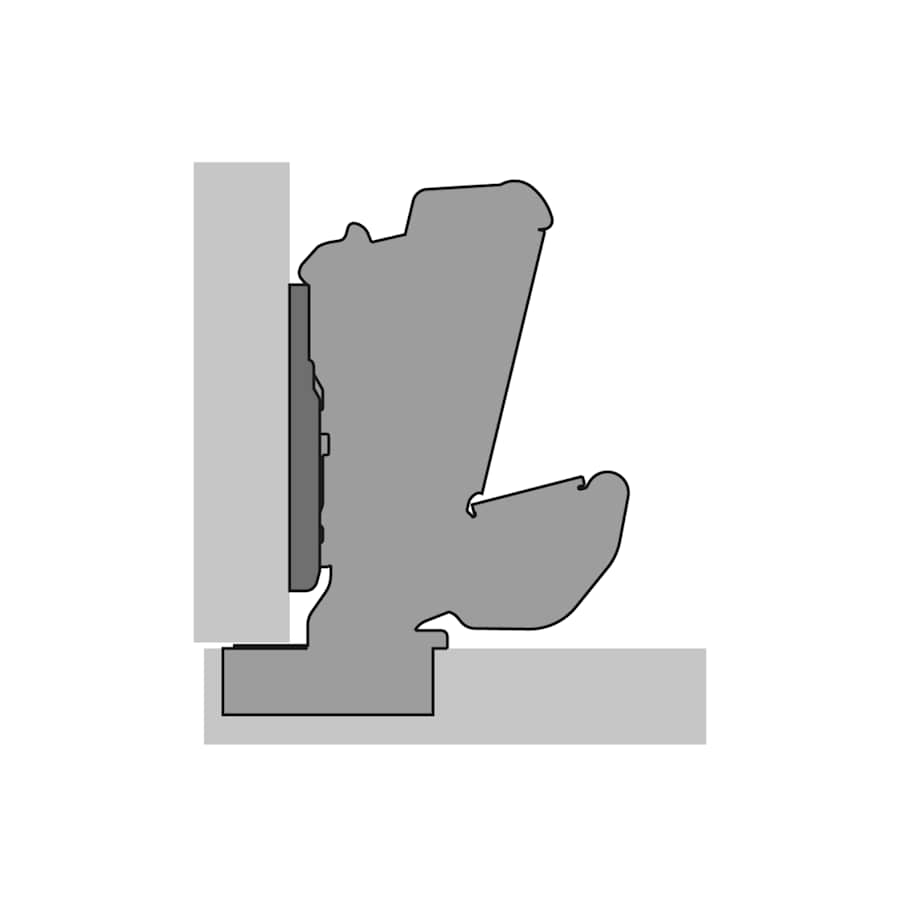

Hinge Mount: Full Overlay
Opening Angle: 165
Material: Steel, Zinc

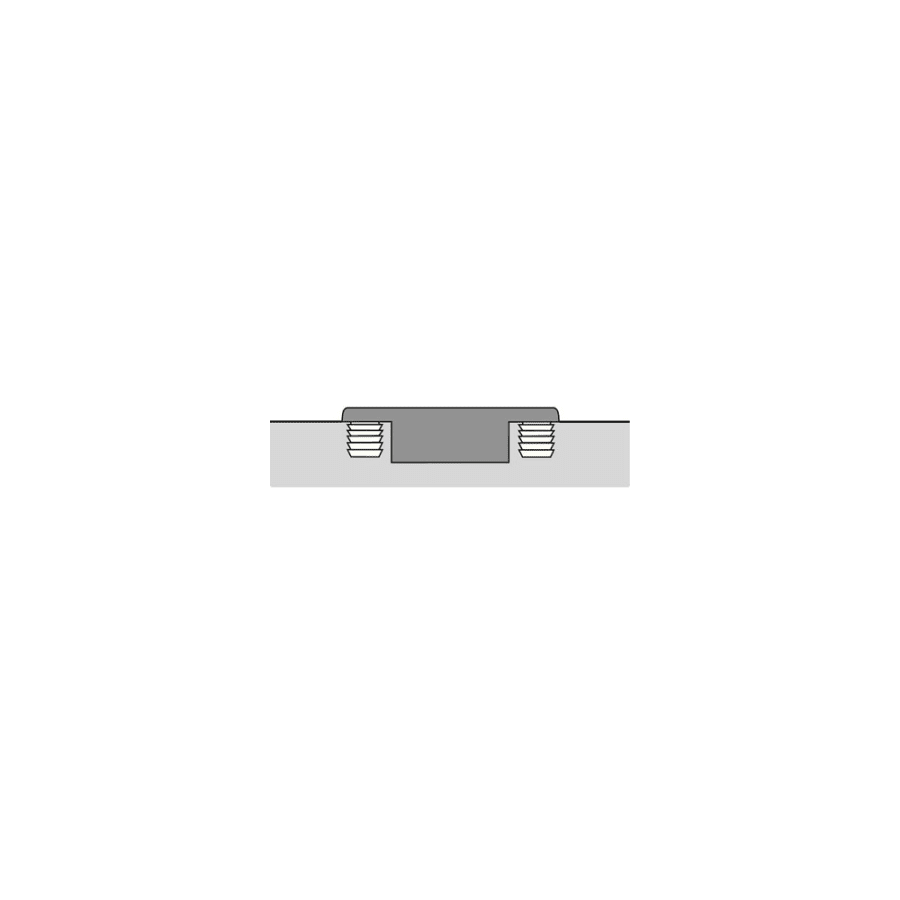

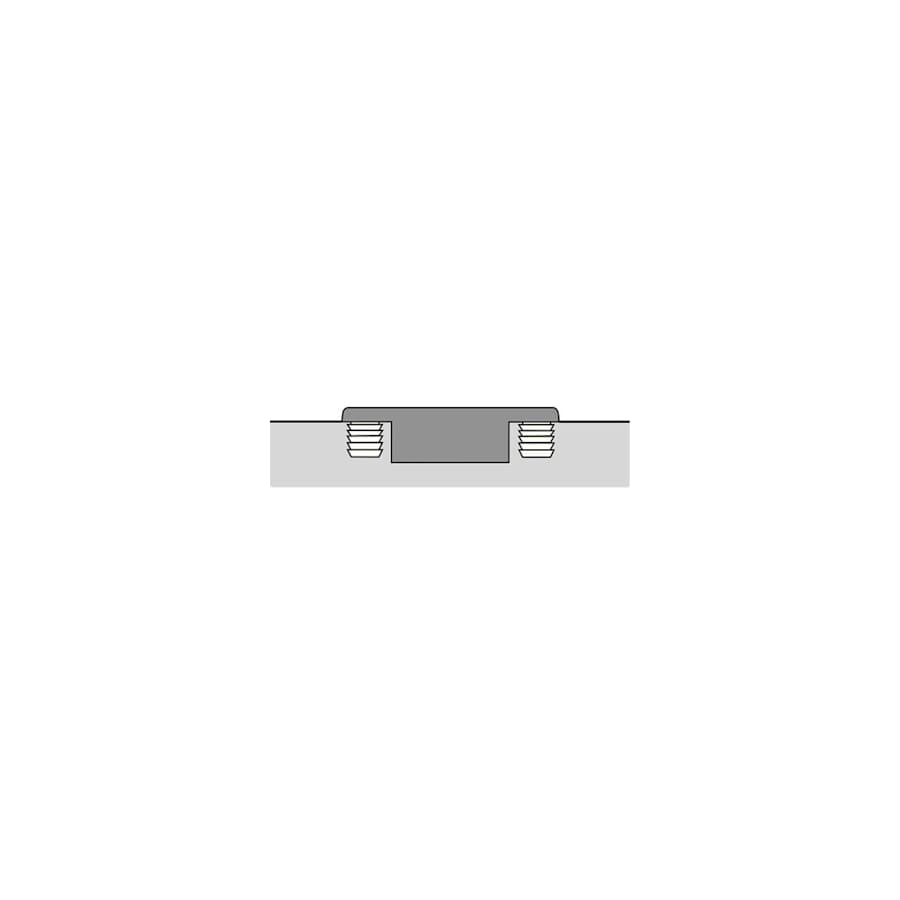

Installation Type: Screw Expanding Dowel

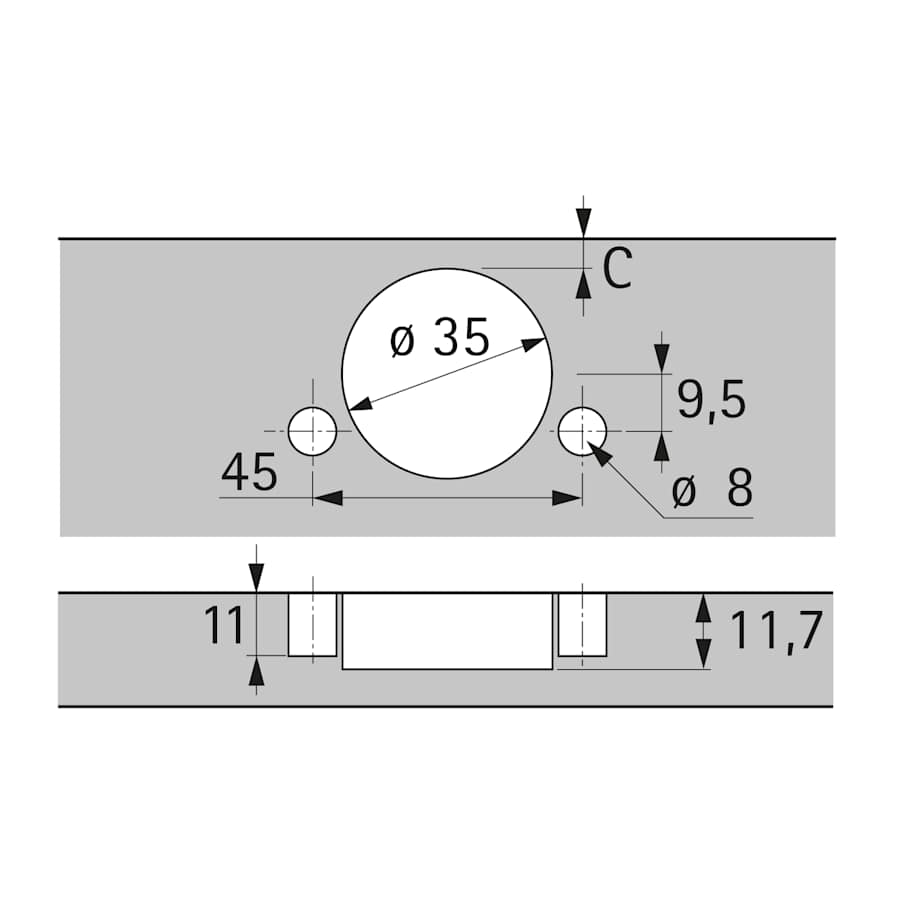

Cup Diameter: 1-3/8″
Bore Distance: 3/16″
Cup Depth: 7/16″
Mount Centers: 1-3/4″
Additional Hettich Links
Browse all Hettich Products
Hettich Sensys Collection
Specifications
Warranty and Product Information
| Collection | Sensys |
Characteristics and Features
| Insulation Type | Screw Expanding Dowel |
| Material | Steel, Zinc |
| Self Closing | No |
| Hinge Type | Concealed Euro |
| Bulk Pack | No |
| Soft Close | Yes |
| Arm Type | Straight Arm |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Adjustable Height | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Full Overlay |
Dimensions and Measurements
| Quantity | 1 |
| Opening Angle | 165 |
| Cup Depth | 0.46 in. |
| Cup Depth mm | 11.6 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.75 in. |
| Mount Centers mm | 45 mm |
| Overlay | 5/8 Inch |
| Bottom Diameter | 0.2 mm |
| Max Cabinet Door Thickness | 1.26 in. |
| Color | Zinc |
| Color Tone | Greys |
