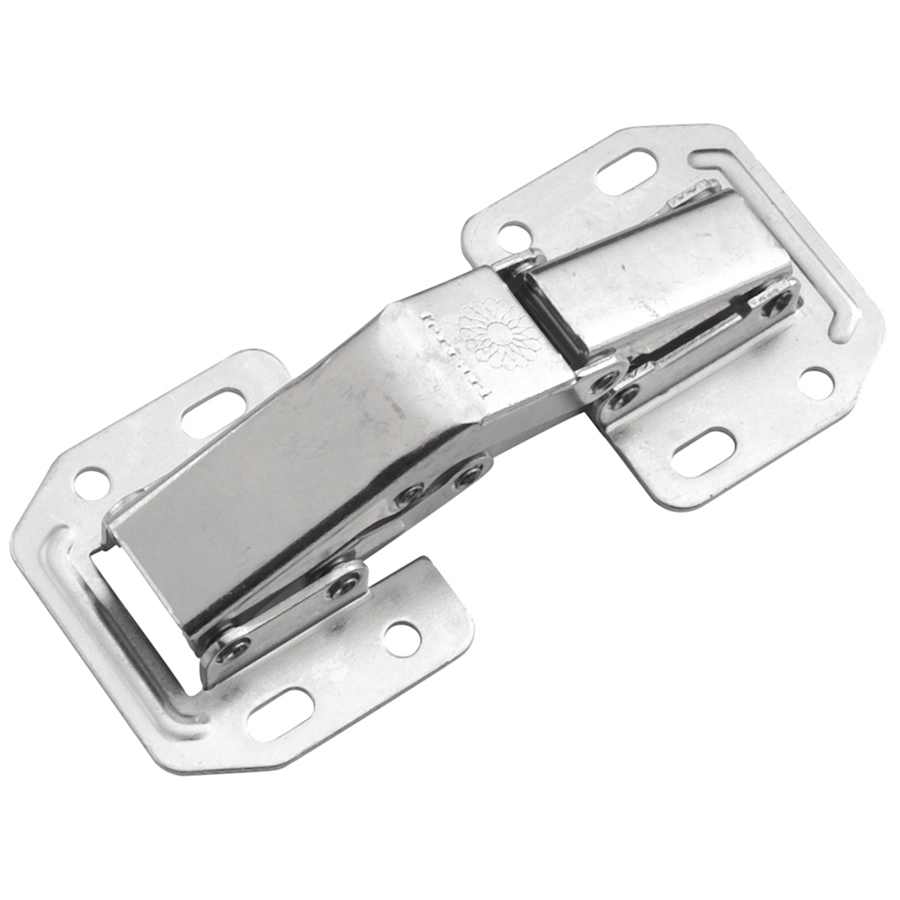

This concealed hinge is easy on because there are no cup holes to mortise. Simply mount to cabinet surfaces with the included hardware. Highly adaptable, it can work with a variety of door overlays or be used for inset doors as well. Mounting hardware and instructions included for DIY friendly installation.
Features:
Variable overlay or inset for frameless cabinets

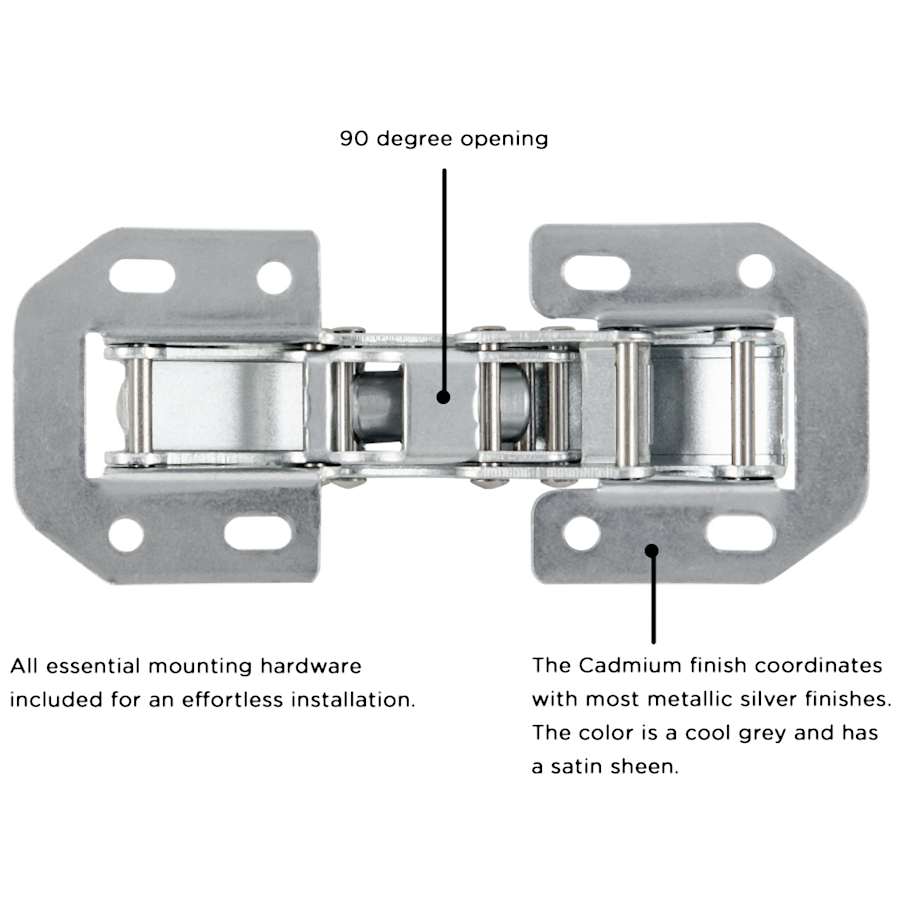

90 degree opening angle with self-closing action
Package of twenty (20) / (10) pairs

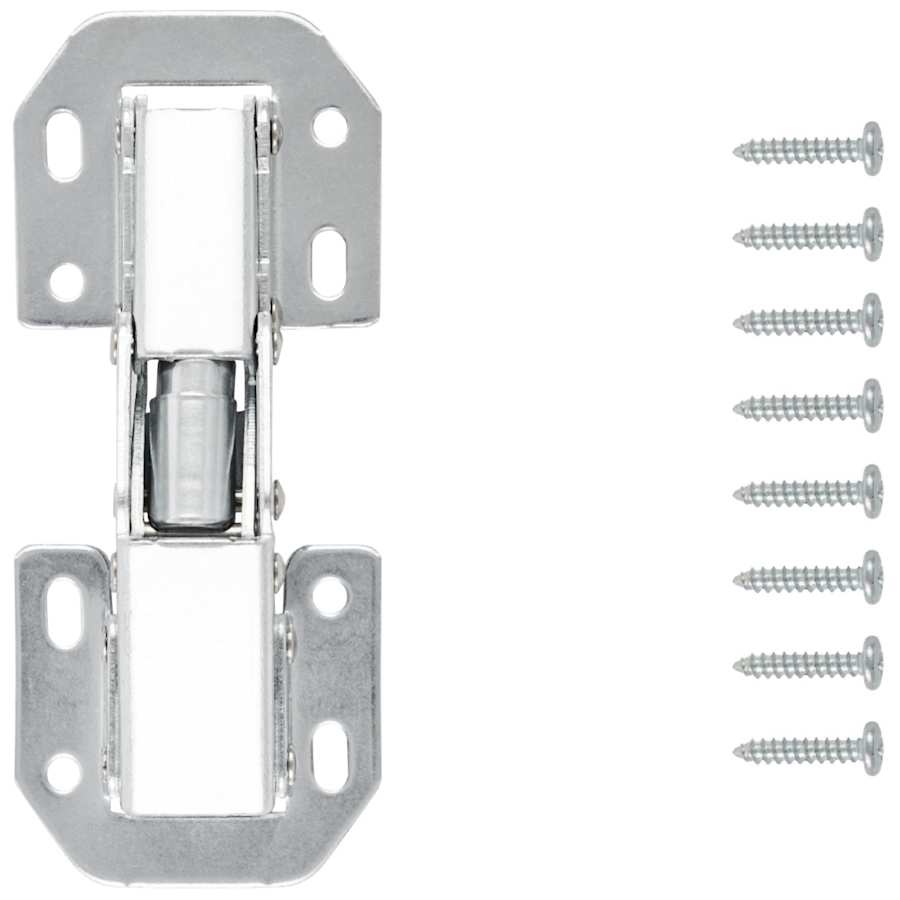

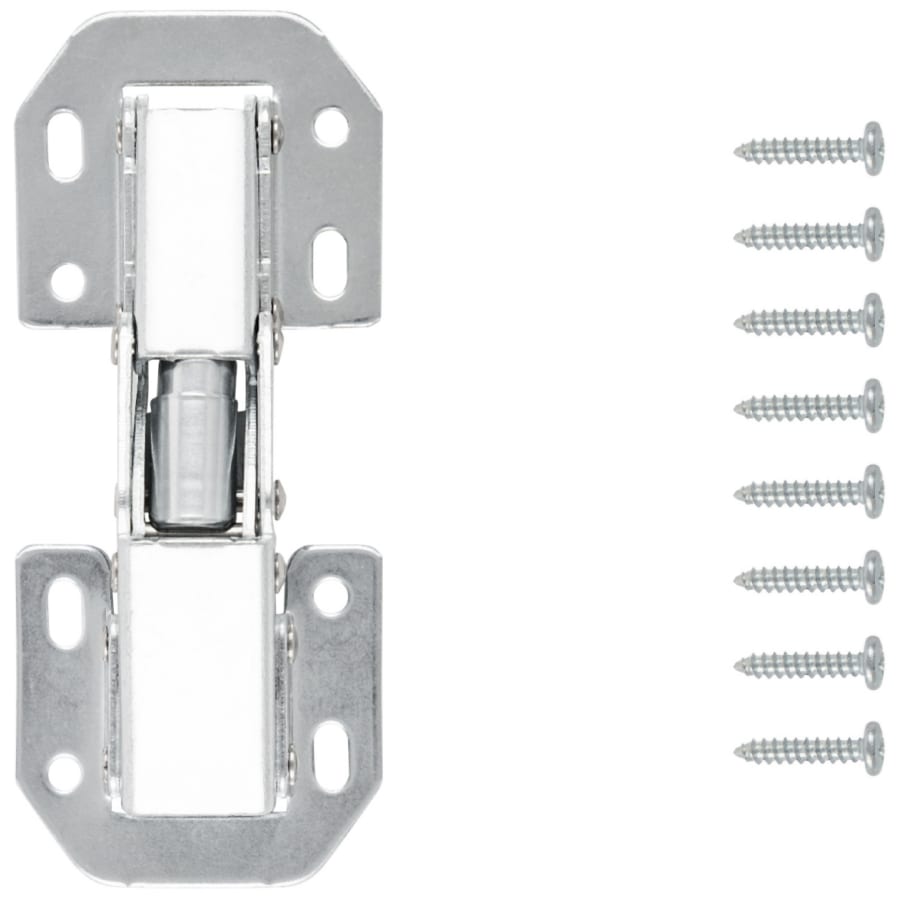

All essential mounting hardware included for an effortless installation

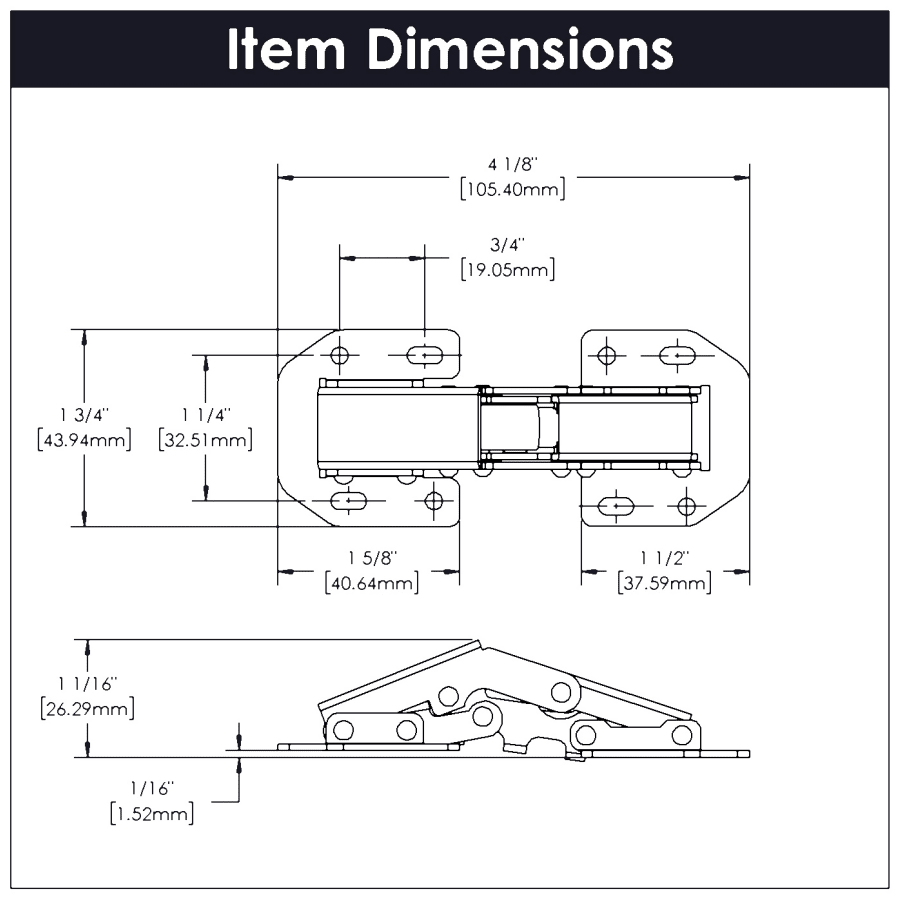

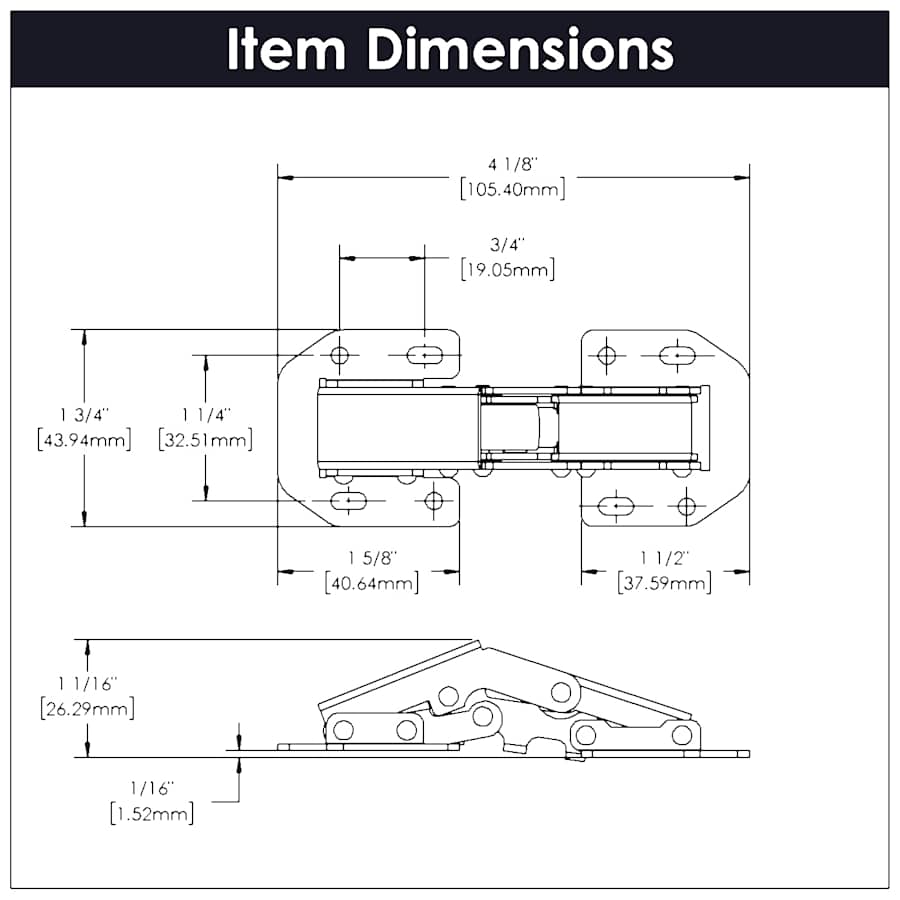

Specifications:
Width: 1-3/4″
Length: 4-1/16″
Hinge Mount: Partial Overlay
Opening Angle: 90
Material: Steel
Installation Type: Screws
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Material | Steel |
| Insulation Type | Screw |
| Hinge Type | Concealed Euro |
| Bulk Pack | Yes |
| Cabinet Type | Panel (Frameless) |
| Adjustable Height | No |
| Arm Type | Half Cranked |
| Soft Close | No |
| Self Closing | No |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | No |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | China |
| Product Weight | 2.5 lbs. |
| Quantity | 20 |
| Mount Centers | 0.93 in. |
| Mount Centers mm | 23.5 mm |
| Opening Angle | 90 |
| Max Cabinet Door Thickness | 0.75 in. |
| Overlay | Variable |
| Installation Hardware Included | Yes |
| Color | Cadmium |
