Product Features:
Durable high-gloss acrylic material
Pure Air® bubbles provide gentle embracing massage
Balanced 360° balanced air flow system for a whole body experience
Sidewall, floor and/or TLC (Thermal Lumbar Comfort ) air inlets
Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.

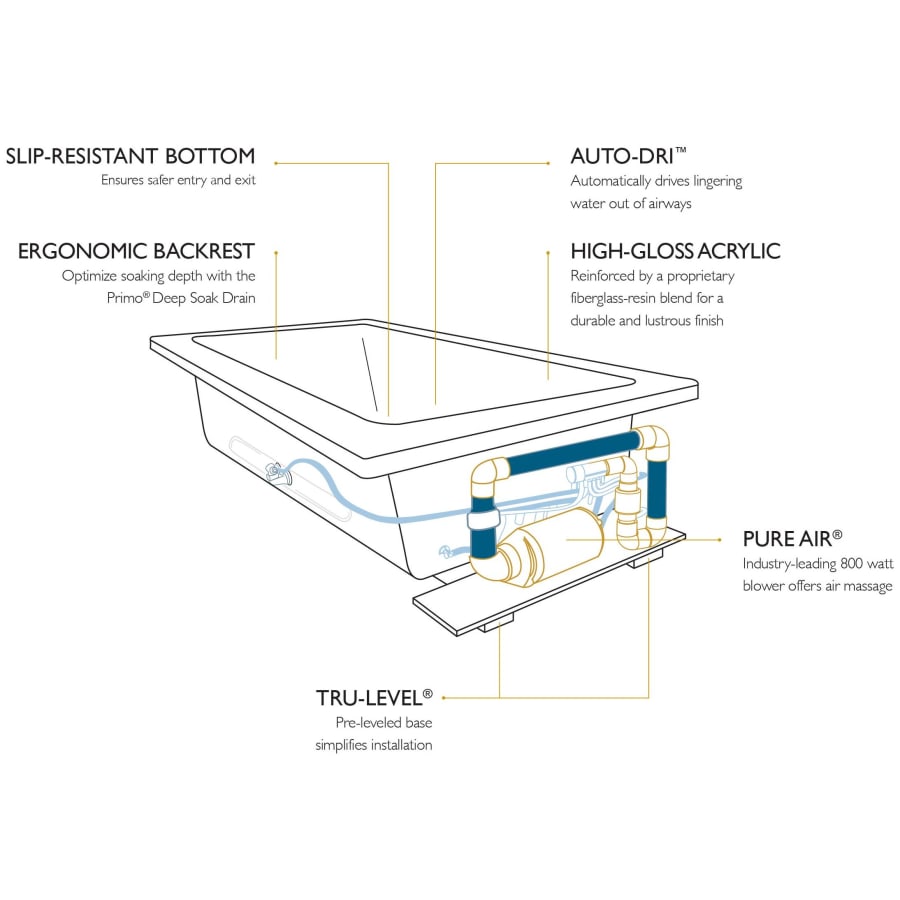

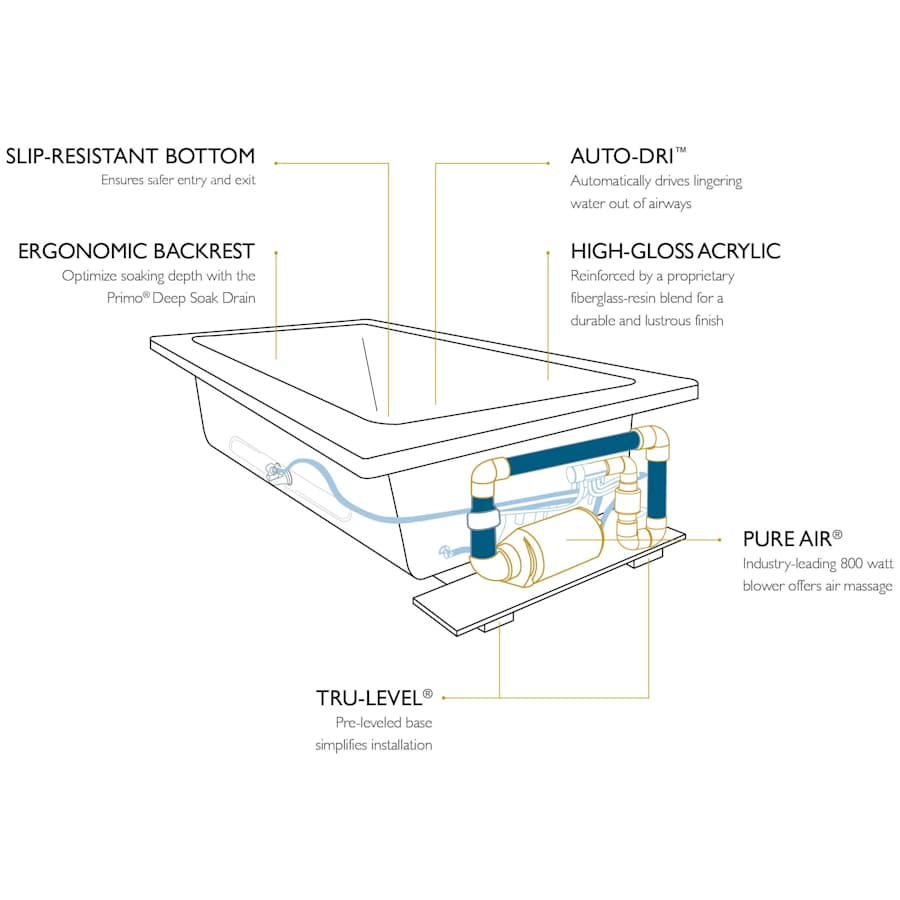

Jacuzzi® Technology:
SlimPro Jets: The ultra low-profile design is nearly flush with the bathing surface to provide maximum comfort.
Sleek Linear Overflow: The linear overflow offers a contemporary look to your bath while providing exceptional overflow protection.
Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.
Silent Air Induction: Jacuzzi’s patented air induction system silently mixes air into the water creating that legendary Jacuzzi® Whirlpool experience without a hissing sound.
Pure Air® Features:
Automatic Purge: Drain activated system purges the air blowers after each use
360° Balanced Air Flow: A unique network of channels that push heated air evenly into the bath
TLC: Thermal Lumbar Comfort area delivers heated air to your back
Pure Air® Wave Mode: Cycles blower from its minimum to a user defined maximum
Product Specifications:
Overall Height: 19-1/2″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 32″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 22-7/10″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 25″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52″ (right to left measurement of the top of basin walls)
Water Depth: 15-1/5″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 70 – gallons
Drain Location: Right
Blower Location: Left
Operating Gallons: 70
Drop-In Cutout Required: 58″ x 30″
Variations:
ELL6032ARL2XX: This model
ELL6032WRL2HX: This model with Whirlpool Experience and Heater
ELL6032WRL4CH: This mode with Luxury Controls, Whirlpool Experience, Chromatherapy Lighting, and Heater
About Jacuzzi® Jacuzzi® has become the world’s most recognized and largest selling brand of jetted / whirlpool baths and spas. In addition to the first whirlpool bath patent, Jacuzzi® has 250 worldwide patents for advancements in pump systems, jet technology, air controls and product design. This ongoing commitment to innovative product development ensures Jacuzzi’s leadership position in the industry, and sets standards the world over.
Additional Jacuzzi Links
View the Manufacturer Warranty
Browse all Jacuzzi Products
Jacuzzi Elara Collection
Specifications
| Height | 19.5 in. |
| Width | 32 in. |
| Nominal Width | 32 in. |
| Length | 60 in. |
| Nominal Length | 60 in. |
| Backplate Depth | 18.0125 in. |
| Capacity (Gallons) | 70 |
| Overflow Height | 16.5 in. |
| Water Capacity | 70 |
| Water Depth | 15.2 in. |
| Nominal Tub Length / Width | 60 in. |
| Insulation Type | Drop In, Undermount |
| Material | Acrylic |
| Thermostat | Modern |
| Drain Placement | Right |
| Control Type | Electronic |
| Sound Dampening | No |
| Apron Front | No |
| Number Of Bathers | 1 |
| Self Leveling Base | Yes |
| Slip Resistant | Yes |
| Tub Shape | Rectangular |
| Number of Jets | 10 |
| Pump Placement | Left |
| Soaking | No |
| ADA | No |
| Collection | Luxury |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UPC |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Made in America | Yes |
| Drain Assembly Included | No |
| Heater Included | No |
| Light Included | No |
| Walk-In Tub | No |
| Voltage | 240 |
| Frequency | 60 Hertz |
| Amperage | 15 |
| Color | Oyster, White |
| Color Tone | Whites |
