Product Features:
Durable high-gloss acrylic material
Ergonomic design cradles the bather in a comfortable position
The foundation of hydrotherapy – quiet and calming
The combination of heat and water relaxes muscles and calms the senses
Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.
Jacuzzi® Technology:

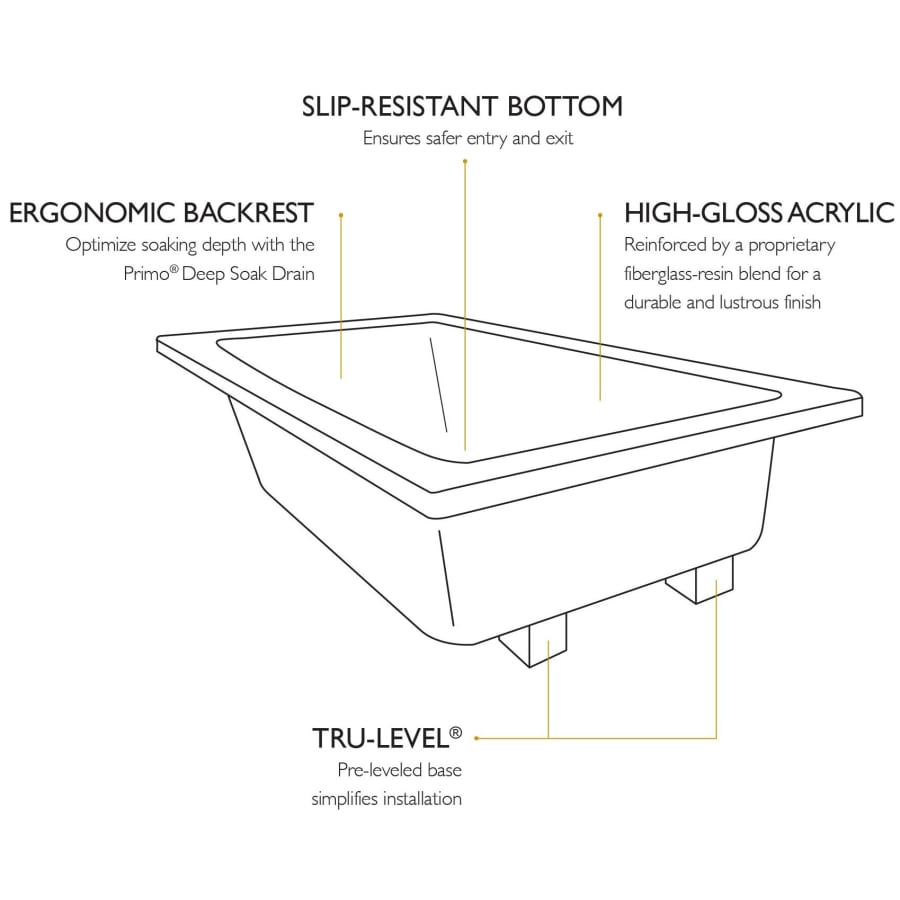

Sleek Linear Overflow: The linear overflow offers a contemporary look to your bath while providing exceptional overflow protection.
Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.
Lighting:
Chromatherapy: LED lighting that is able to produce a total of 256 mood-setting colors. Jacuzzi’s Chromatherapy lighting serves to not only enhance your bathing experience, but also provide for safe entry and exists in and out of the tub.
Product Specifications:
Overall Height: 22-1/2″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 36″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 21-4/5″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 40-1/3″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 28″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52″ (right to left measurement of the top of basin walls)
Water Depth: 16-1/5″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 72 – gallons
Drain Location: Reversible
Operating Gallons: 72
Drop-In Cutout Required: 58″ x 34″
Variations:
ELL6036BUX2CX: This model
ELL6036BUXXXX: This model without Chromatherapy Lighting
About Jacuzzi® Jacuzzi® has become the world’s most recognized and largest selling brand of jetted / whirlpool baths and spas. In addition to the first whirlpool bath patent, Jacuzzi® has 250 worldwide patents for advancements in pump systems, jet technology, air controls and product design. This ongoing commitment to innovative product development ensures Jacuzzi’s leadership position in the industry, and sets standards the world over.
Additional Jacuzzi Links
View the Manufacturer Warranty
Browse all Jacuzzi Products
Jacuzzi Elara Collection
Specifications
| Height | 22.5 in. |
| Width | 36 in. |
| Nominal Width | 36 in. |
| Length | 60 in. |
| Nominal Length | 60 in. |
| Backplate Depth | 19.0125 in. |
| Capacity (Gallons) | 72 |
| Overflow Height | 16.5 in. |
| Water Capacity | 72 |
| Water Depth | 16.2 in. |
| Nominal Tub Length / Width | 60 in. |
| Insulation Type | Drop In, Undermount |
| Material | Acrylic |
| Thermostat | Modern |
| Drain Placement | Reversible |
| Control Type | Electronic |
| Sound Dampening | No |
| Apron Front | No |
| Number Of Bathers | 1 |
| Self Leveling Base | Yes |
| Slip Resistant | Yes |
| Tub Shape | Rectangular |
| Soaking | Yes |
| ADA | No |
| Collection | Luxury |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UPC |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Made in America | Yes |
| Drain Assembly Included | No |
| Heater Included | No |
| Light Included | Yes |
| Walk-In Tub | No |
| Color | Oyster, White |
| Color Tone | Whites |
