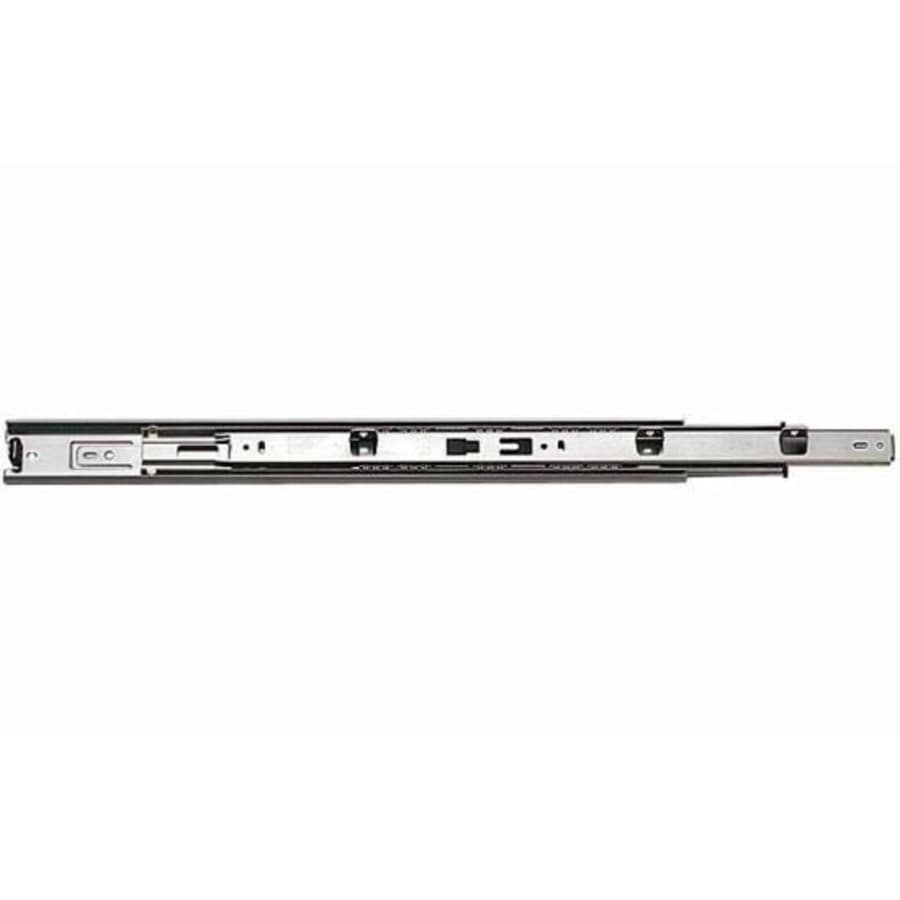

Features:
Designed to support up to 100 pounds of weight
Mounts to the side of the drawer
Provides maximum access to the drawer with overtravel slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 16-1/2″
Slide Length: 16″
Extension: Type: Over Travel
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Mounting hardware not included
Product Variations:
8407B 14: 14 Inch Drawer Slide
8407B 16 (This Model): 16 Inch Drawer Slide
8407B 18: 18 Inch Drawer Slide
8407B 20: 20 Inch Drawer Slide
8407B 22: 22 Inch Drawer Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8407 Collection
Specifications
| Approved for Commercial Use | Yes, No |
| Series | 8407 |
| BHMA Certification | Grade 1 |
| Collection | 8407 |
| Manufacturer Warranty | Limited Lifetime |
| Height | 1.79 in. |
| Width | 0.5 in. |
| Length | 16 in. |
| Quantity | 2 |
| Nominal Length | 16 in. |
| Width mm | 13 mm |
| Max Capacity (Pounds) | 100 lbs. |
| Height mm | 46 mm |
| Drainboard Length | 16.5 in. |
| Maximum Drawer Width | 24 in. |
| Minimum Cabinet Depth | 16 in. |
| Minimum Clearance | 0.5 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | No |
| Soft Close | No |
| Adjustable | No |
| Extension Type | Over Travel |
| Detent | Yes |
| Disconnect Style | Lever |
| Push to Open | No |
| Slide Type | Ball Bearing |
| Color | Anochrome |
| Color Tone | Silver Tones |
