Features:
Made to support a maximum weight capacity of 150 pounds

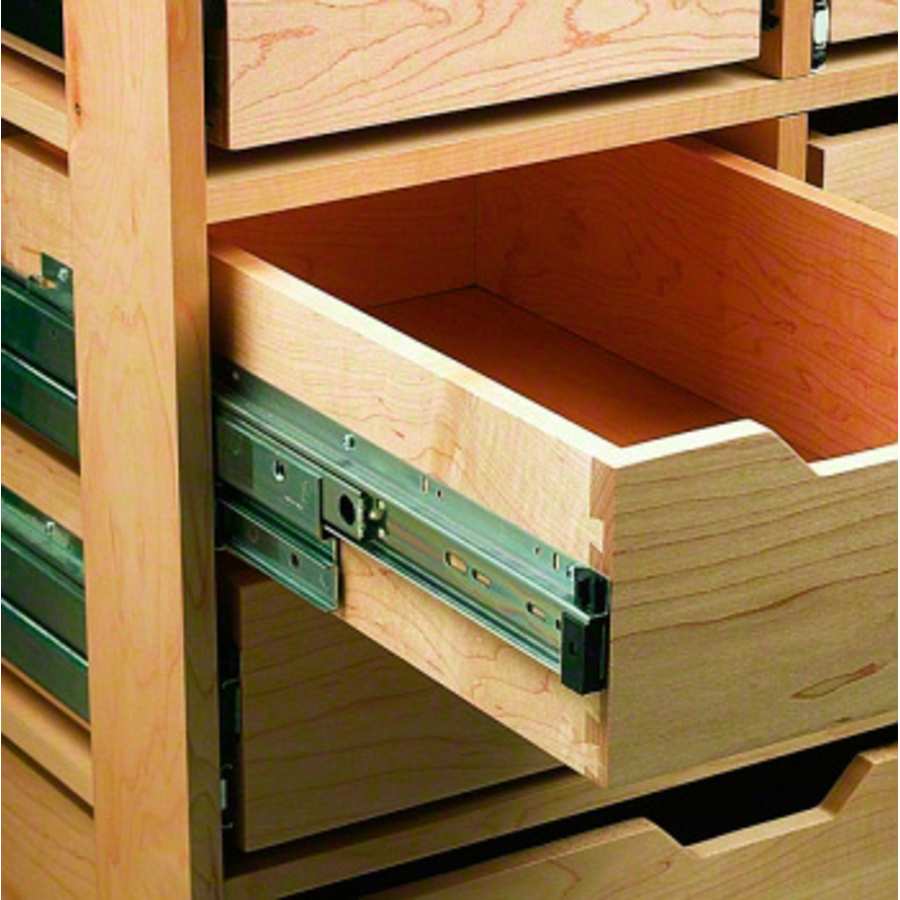

Sleek design installs on the sides of the drawer
Full extension slides allow for maximum drawer accessibility
Easily disconnects with push-in lever
Intended for use in panel or frameless cabinets
Includes a Limited Lifetime Warranty
Product Technologies:
Anti-Rebound: Also known as slide detent, Anti-Rebound acts like a brake: ensuring your drawers do not roll back open when closed with too much force.
Specifications:
Slide Length: 30″ (762 mm)
Material: Steel
Extension Type: Over Travel
Anti-Rebound/Detent: Yes
Slide Type: Ball Bearing
Weight Capacity: 150 lbs
Maximum Drawer Width: 30″
Product Variations:
8505B 12: 12 Inch Over Travel Ball Bearing Slides
8505B 14: 14 Inch Over Travel Ball Bearing Slides
8505B 16: 16 Inch Over Travel Ball Bearing Slides
8505B 18: 18 Inch Over Travel Ball Bearing Slides
8505B 20: 20 Inch Over Travel Ball Bearing Slides
8505B 22: 22 Inch Over Travel Ball Bearing Slides
8505B 24: 24 Inch Over Travel Ball Bearing Slides
8505B 26: 26 Inch Over Travel Ball Bearing Slides
8505B 28: 28 Inch Over Travel Ball Bearing Slides
8505B 30 (This Model): 30 Inch Over Travel Ball Bearing Slides
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8505 Collection
Specifications
| Height | 3.79 in. |
| Width | 0.5 in. |
| Length | 30 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 150 lbs. |
| Height mm | 96 mm |
| Width mm | 13 mm |
| Minimum Clearance | 0.5 in. |
| Minimum Cabinet Depth | 30 in. |
| Maximum Drawer Width | 30 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Extension Type | Over Travel |
| Detent | Yes |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Collection | 8505 |
| Approved for Commercial Use | No, Yes |
| Manufacturer Warranty | Limited Lifetime |
| Series | 8505 |
| Color | Anochrome |
| Color Tone | Silver Tones |
