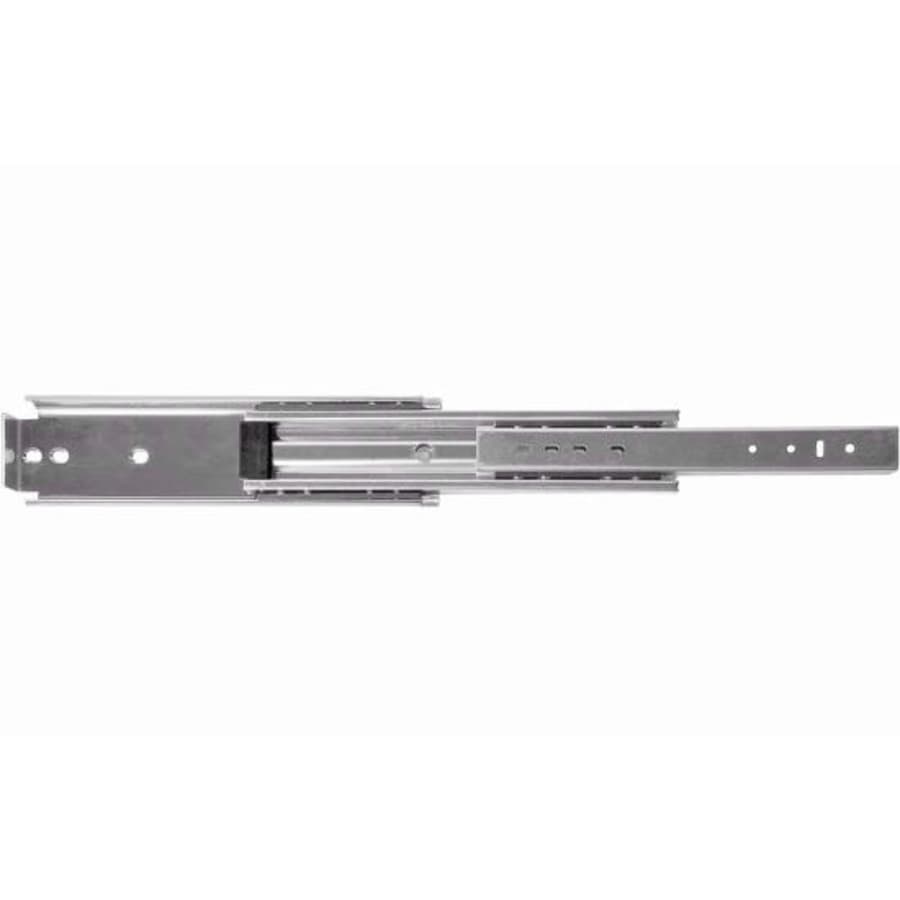

Features:
Designed to support up to 350 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Non disconnect slides do not have a quick removal ability
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 32-1/2″
Slide Length: 32″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 350 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Mounting hardware not included
Product Variations:
8900P 32 (This Model): 32 Inch Drawer Slide
8900P 34: 34 Inch Drawer Slide
8900P 36: 36 Inch Drawer Slide
8900B 40: 40 Inch Drawer Slide
8900B 42: 42 Inch Drawer Slide
8900B 48: 48 Inch Drawer Slide
8900B 60: 60 Inch Drawer Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8900 Collection
Specifications
| Height | 3 in. |
| Max Capacity (Pounds) | 350 lbs. |
| Width | 0.75 in. |
| Length | 32 in. |
| Extension | 32 in. |
| Quantity | 2 |
| Nominal Length | 32 in. |
| Height mm | 76 mm |
| Width mm | 19 mm |
| Minimum Clearance | 0.75 in. |
| Drainboard Length | 32.5 in. |
| Minimum Cabinet Depth | 32 in. |
| Maximum Drawer Width | 48 in. |
| Adjustable | No |
| Insulation Type | Side Mount |
| Material | Steel |
| Extension Type | Full Extension |
| Soft Close | No |
| Mounting Type | Side Mount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | No |
| Detent | No |
| Disconnect Style | Non Disconnect |
| Push to Open | No |
| Slide Type | Ball Bearing |
| Approved for Commercial Use | Yes, No |
| Collection | 8900 |
| Manufacturer Warranty | Limited Lifetime |
| Series | 8900 |
| BHMA Certification | Grade 1 |
| Color | Zinc |
| Color Tone | Greys |
