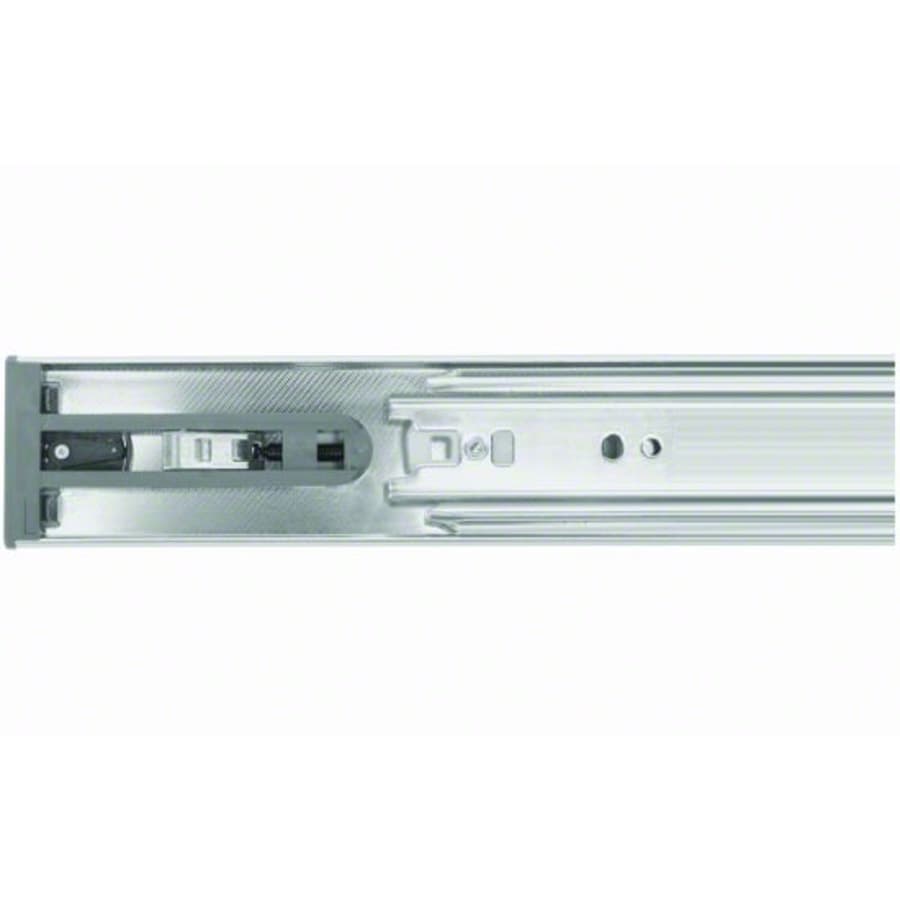

Features:
Designed to support up to 100 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:
Push to Open: A gentle push on the drawer front engages the “push to open mechanism”; extending the slides and opening the drawer in one smooth motion.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 14-1/2″
Slide Length: 14″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Mounting hardware not included
Product Variations:
GS4260 12: 12 Inch Drawer Slide
GS4260 14 (This Model): 14 Inch Drawer Slide
GS4260 16: 16 Inch Drawer Slide
GS4260 18: 18 Inch Drawer Slide
GS4260 20: 20 Inch Drawer Slide
GS4260 22: 22 Inch Drawer Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt Gslide Collection
Specifications
| Height | 1.79 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Width | 0.5 in. |
| Length | 14 in. |
| Extension | 14 in. |
| Quantity | 2 |
| Nominal Length | 14 in. |
| Height mm | 46 mm |
| Width mm | 13 mm |
| Minimum Clearance | 0.5 in. |
| Drainboard Length | 14.5 in. |
| Minimum Cabinet Depth | 14 in. |
| Maximum Drawer Width | 24 in. |
| Adjustable | No |
| Insulation Type | Side Mount |
| Material | Steel |
| Extension Type | Full Extension |
| Soft Close | Yes |
| Mounting Type | Side Mount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | No |
| Detent | No |
| Disconnect Style | Lever |
| Push to Open | No |
| Slide Type | Ball Bearing |
| Approved for Commercial Use | Yes, No |
| Collection | GSlide |
| Manufacturer Warranty | Limited Lifetime |
| Series | GSlide |
| BHMA Certification | Grade 1 |
| Color | Zinc |
| Color Tone | Greys |
