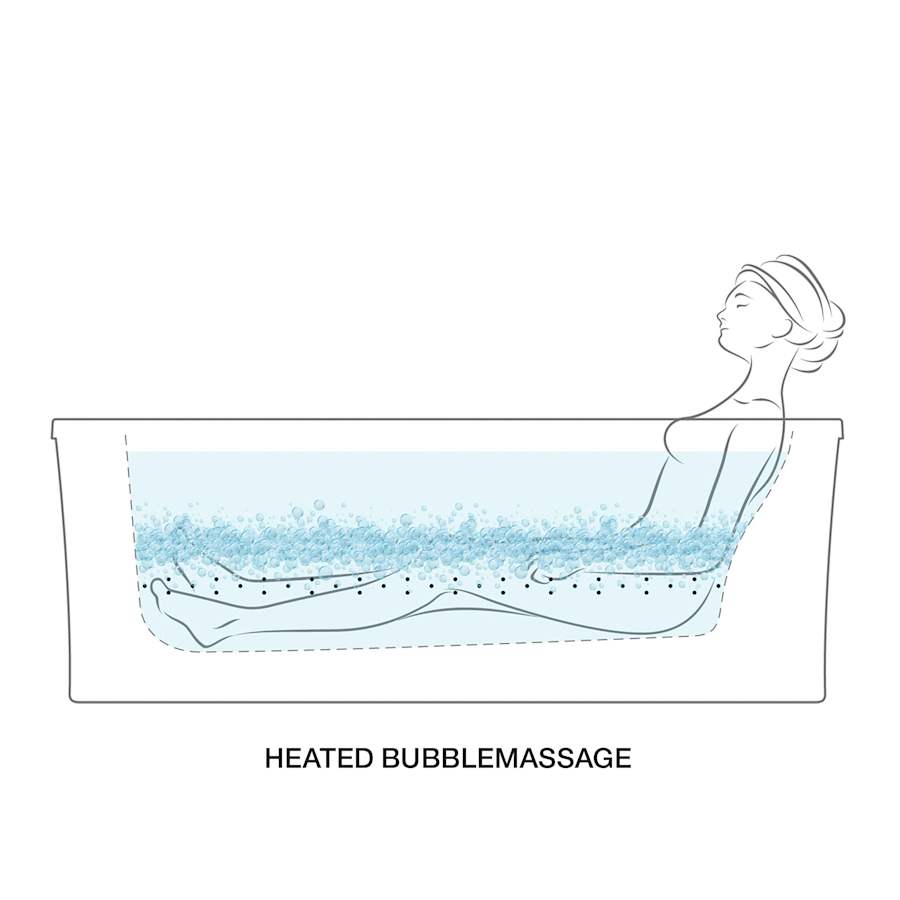

With heated BubbleMassage hydrotherapy, air jets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage experience. Taking its design cues from traditional craftsman furniture, the Archer line of baths reveals beveled and curved bases for a clean, sophisticated style. This air bath offers a low step-over height while allowing for deep, comfortable soaking.
Kohler K-1949-GHLAW Features:
Molded lumbar support offers extra comfort
Self-cleaning purge cycles remove residual water from channels
Bask heated surface creates spa-like relaxation with soothing warmth on your back, shoulders and neck
Three heat settings allow you to customize the surface temperature
120 air jets release thousands of heated bubbles that surround and support the body in a warm massage
Variable-speed blower lets you adjust massage intensity to 18 levels
Comfort Depth design offers a convenient 19-in step-over height while retaining the same depth as a standard 21-in bath
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
K-1949-GHLAW Specifications:
Overall Height: 20-1/4″ (bottom to top of tub)
Overall Length: 66″ (left to right of tub)
Overall Width: 32″ (back to front of tub)
Basin Length: 50-3/8″ (left to right of bottom basin)
Basin Width: 19-5/8″ (front to back of bottom basin)
Basin Depth: 19-1/4″ (bottom of basin to tub rim)
Maximum Water Capacity: 66 gallons
Water Depth: 19-1/4″
Frequency: 60 Hz
Amperage: 15 A
Number of Jets: 120
Drain Connections: 1-1/2″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Archer Collection
Specifications
| Depth | 19.25 in. |
| Height | 20.25 in. |
| Nominal Width | 32 in. |
| Product Weight | 125 lbs. |
| Width | 32 in. |
| Length | 66 in. |
| Nominal Length | 66 in. |
| Capacity (Gallons) | 66 |
| Overflow Height | 15.5 in. |
| Water Depth | 15.3125 in. |
| Material | Acrylic |
| Thermostat | Modern |
| Insulation Type | Three Wall Alcove |
| Control Type | Electronic |
| Drain Placement | Left |
| Overflow | Yes |
| Accepts Deck Mount Faucet | No |
| Apron Front | Yes |
| Jet Type | Air |
| Number Of Bathers | 1 |
| Number of Jets | 120 |
| Tub Shape | Rectangular |
| Pump Placement | Right |
| Voltage | 120 |
| Wattage | 600 |
| Amperage | 15 |
| Speeds | 18 |
| Frequency | 60 Hertz |
| Certifications | ANSI, ASME, CSA |
| Collection | Archer |
| Manufacturer Warranty | Limited Lifetime |
| ADA | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.19.7 |
| CSA Code | B45.5, C22.2, B45.10 |
| Light Included | No |
| Drain Assembly Included | No |
| Handshower Included | No |
| Faucet Included | No |
| Heater Included | Yes |
| Tile Flange | Yes |
| Blower | Yes |
| Color | Almond, Biscuit, Black Black, Dune, Ice Grey, Thunder Grey, White |
