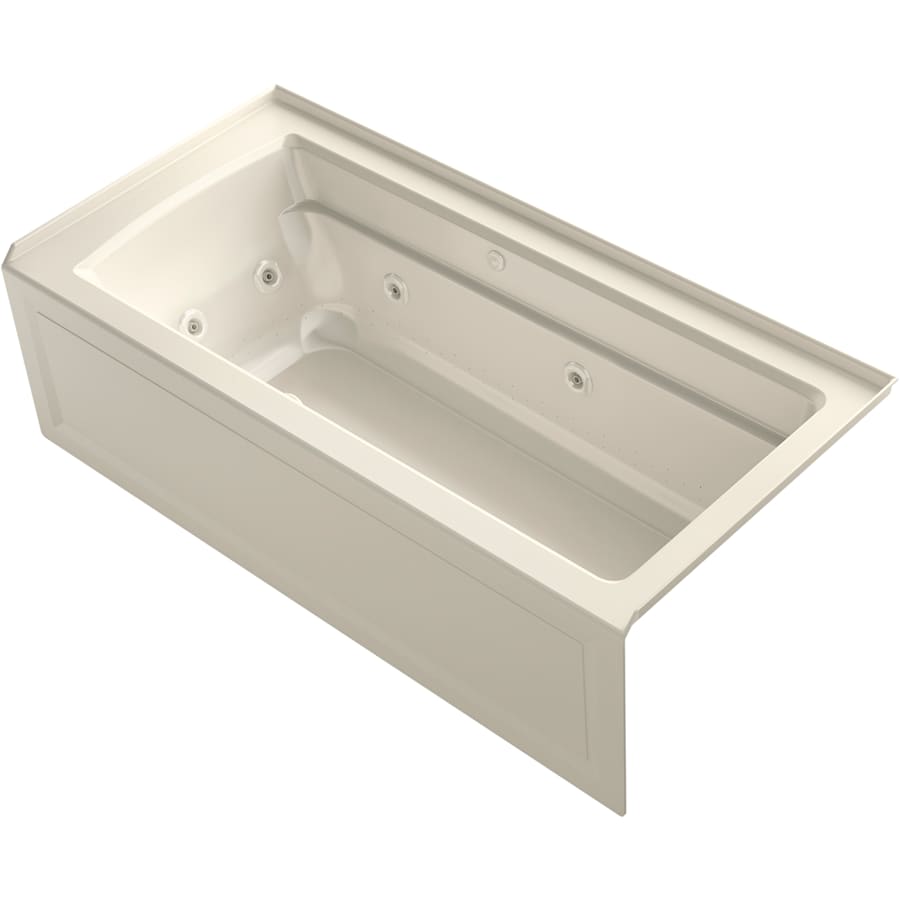

This Archer bath offers both a relaxing whirlpool hydromassage and a soothing heated BubbleMassage, with each experience controlled independently. Whirlpool jets relax away the day’s tension as you surround your body in a cushion of heated massaging bubbles delivering a blissfully warm and invigorating full body massage. This bath has a low step-over height while allowing deep, comfortable soaking.
Kohler K-1949-XGHRA Features:
Molded lumbar support offers extra comfort
Self-cleaning purge cycles remove residual water from channels
The K-1949-XGHRA bath offers both a whirlpool hydromassage and heated BubbleMassage air bubbles for a truly relaxing bathing experience

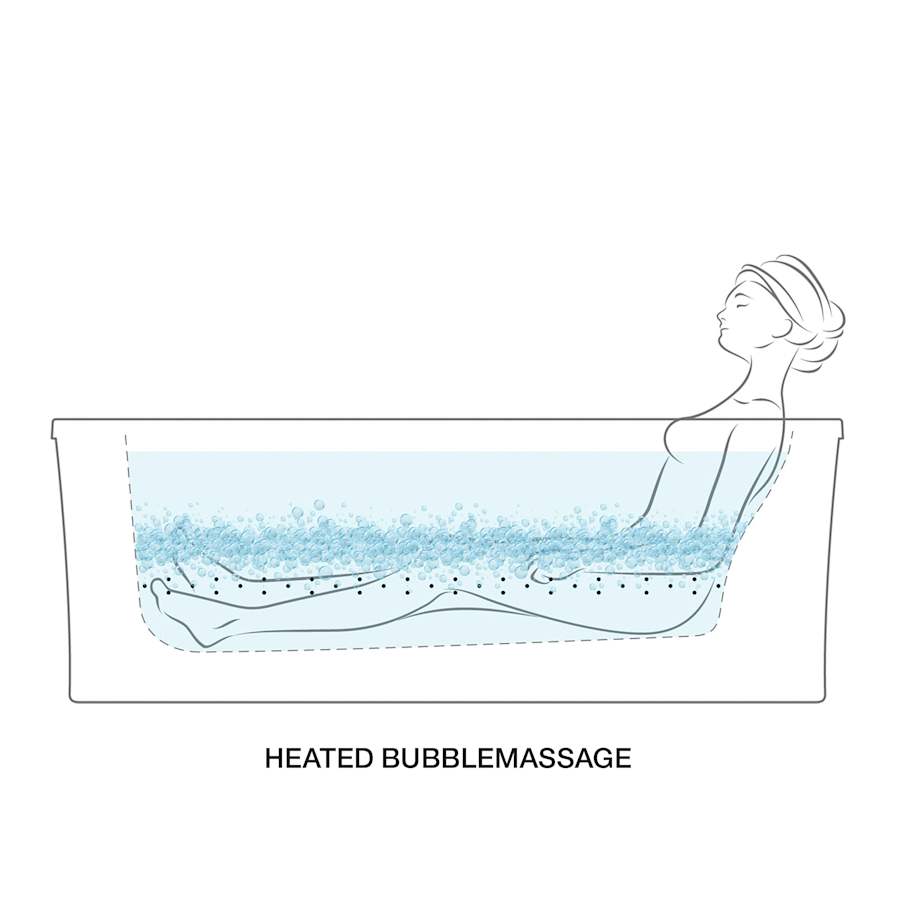

118 air jets release thousands of heated bubbles that surround and support the body in a warm massage
Variable-speed blower lets you adjust heated BubbleMassage massage intensity to 18 levels
Single-speed whirlpool revitalizes sore muscles
8 fully adjustable whirlpool jets allow users to customize hydromassage flow and direction at each jet
Comfort Depth design offers a convenient 19-in step-over height while retaining the same depth as a standard 21-in bath
Slotted overflow allows for deep soaking
Integral apron
K-1949-XGHRA Specifications:
Overall Height: 20-1/4″ (bottom to top of tub)
Overall Length: 66″ (left to right of tub)
Overall Width: 32″ (back to front of tub)
Basin Length: 50-3/8″ (left to right of bottom basin)
Basin Width: 19-5/8″ (front to back of bottom basin)
Basin Depth: 19-1/4″ (bottom of basin to tub rim)
Maximum Water Capacity: 66 gallons
Water Depth: 19-1/4″
Frequency: 60 Hz
Amperage: 15 A
Number of Jets: 118
Drain Connections: 1-1/2″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Archer Collection
Specifications
| Depth | 19.25 in. |
| Height | 20.25 in. |
| Nominal Width | 32 in. |
| Product Weight | 165 lbs. |
| Width | 32 in. |
| Length | 66 in. |
| Nominal Length | 66 in. |
| Capacity (Gallons) | 66 |
| Overflow Height | 15.5 in. |
| Water Depth | 15.3125 in. |
| Material | Acrylic |
| Thermostat | Modern |
| Insulation Type | Three Wall Alcove |
| Control Type | Electronic |
| Drain Placement | Right |
| Overflow | Yes |
| Accepts Deck Mount Faucet | No |
| Apron Front | Yes |
| Jet Type | Air |
| Number Of Bathers | 1 |
| Number of Jets | 118 |
| Tub Shape | Rectangular |
| Pump Placement | Left |
| Voltage | 120 |
| Wattage | 600 |
| Amperage | 15 |
| Speeds | 18 |
| Frequency | 60 Hertz |
| Certifications | ANSI, ASME, CSA |
| Collection | Archer |
| Manufacturer Warranty | Limited Lifetime |
| ADA | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.19.7 |
| CSA Code | B45.5, C22.2, B45.10 |
| Light Included | No |
| Drain Assembly Included | No |
| Handshower Included | No |
| Faucet Included | No |
| Heater Included | Yes |
| Tile Flange | Yes |
| Blower | Yes |
| Color | Almond, Biscuit, Black Black, Dune, Ice Grey, Thunder Grey, White |
