FEATURES

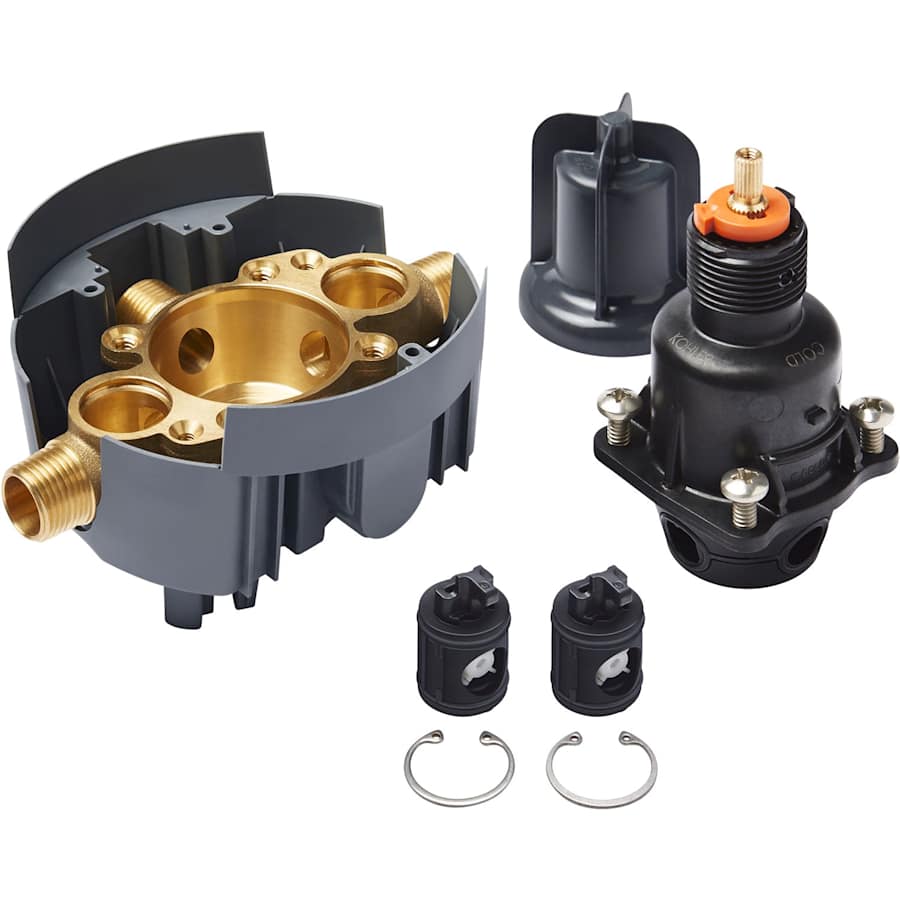

Includes valve body, pressure balance cartridge, rough-in guide and mud guard
1/2″ Universal NPT & direct sweat inlets & outlets, with stops
Service stops supplied loose (not factory installed in valve body) – ready for making sweat connections to valve inlets
Service stops include integral check valves
5.0 gpm (18.9 l/min) maximum flow rate at 45 psi
Single lever design cycles from off through cold to hot
Provides temperature regulation and automatic anti-scald protection
One piece cartridge design simplifies installation and maintenance
Adjustable high temperature limit stop to control maximum water temperature
Requires valve trim to complete installation (sold separately).
Material
Forged De-zincification Resistant Brass body provides long term reliability and resistance to aggressive water conditions
Technology

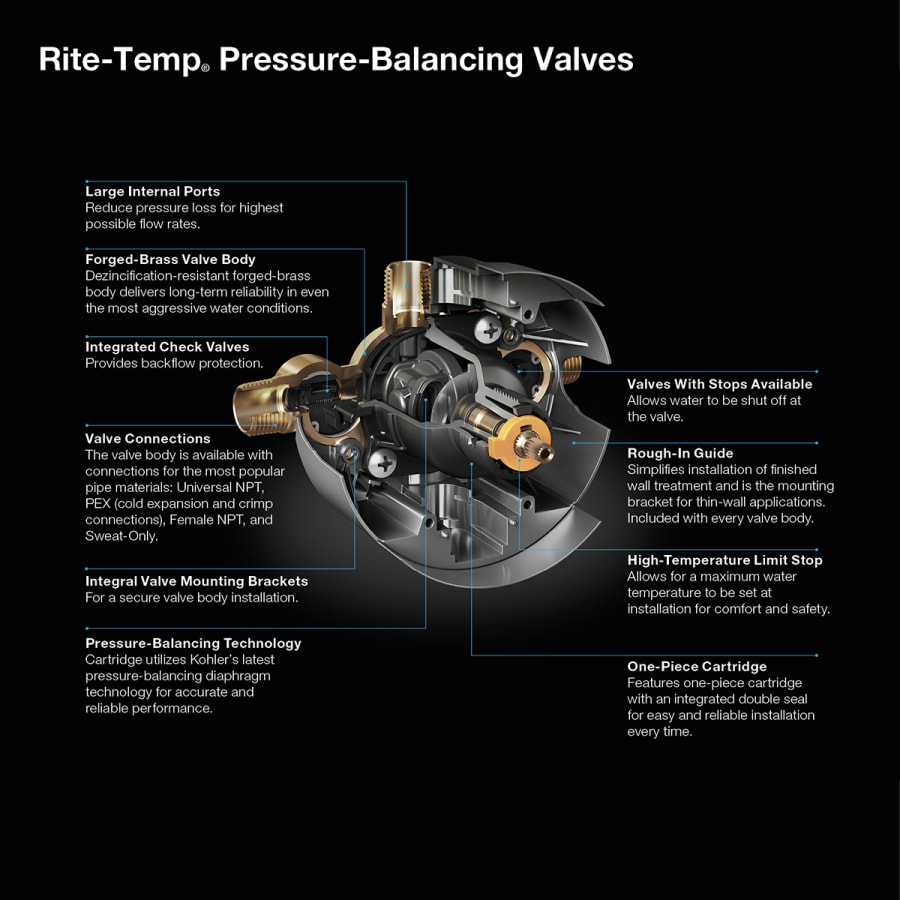

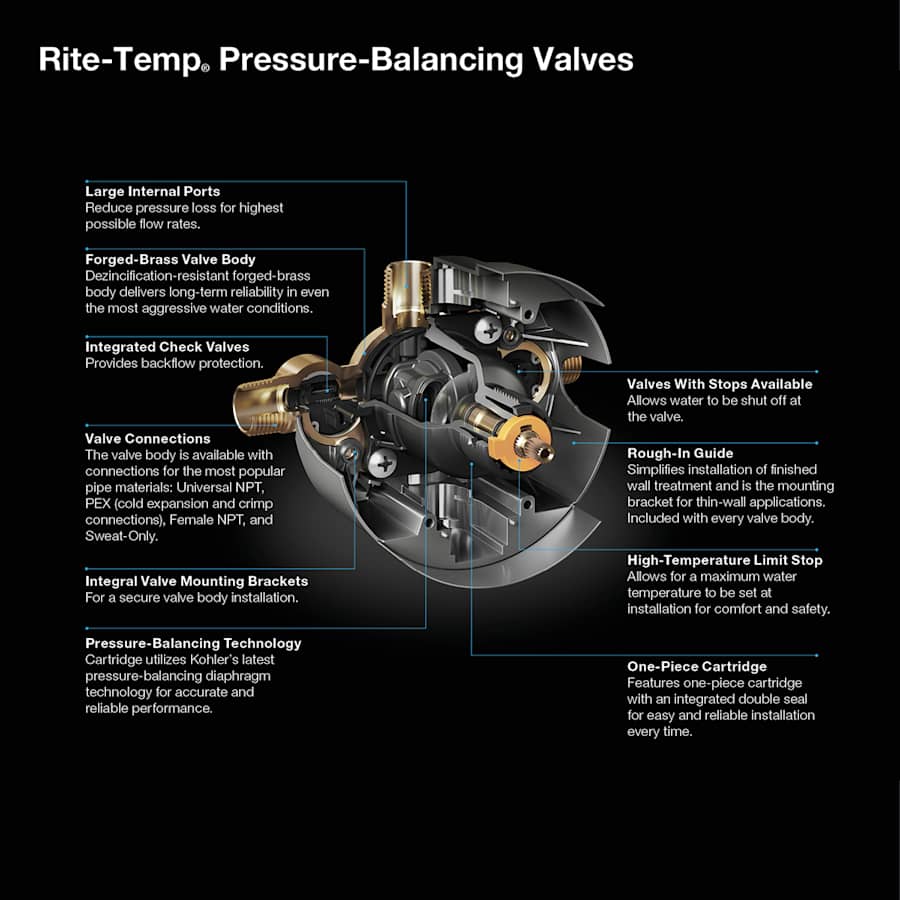

Pressure-balancing diaphragm technology maintains outlet temperature within +/- 3 degrees Fahrenheit during water pressure fluctuations
Installation
Designed for use in standard, back to back and thin wall installations
Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
Cartridge is reversible for installations where hot and cold supplies are reversed.
Rough-in guide designed for both standard and thin wall installations
Installed valve rough-in can be flushed and pressure tested to 150psi max (air or water) without cartridge, using K-10351 Test Cap
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Rite Temp Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Water Connection Type | NPT |
| Valve Type | Pressure Balanced |
| Scald Guard | Yes |
| Number Of Ports | 4 |
| Collection | Rite Temp |
| Manufacturer Warranty | Limited Lifetime |
| Height | 5 in. |
| Water Connection | 1/2" |
| Max Deck Thickness | 0.75 in. |
| Volume Control | No |
| Service Stops Included | Yes |
