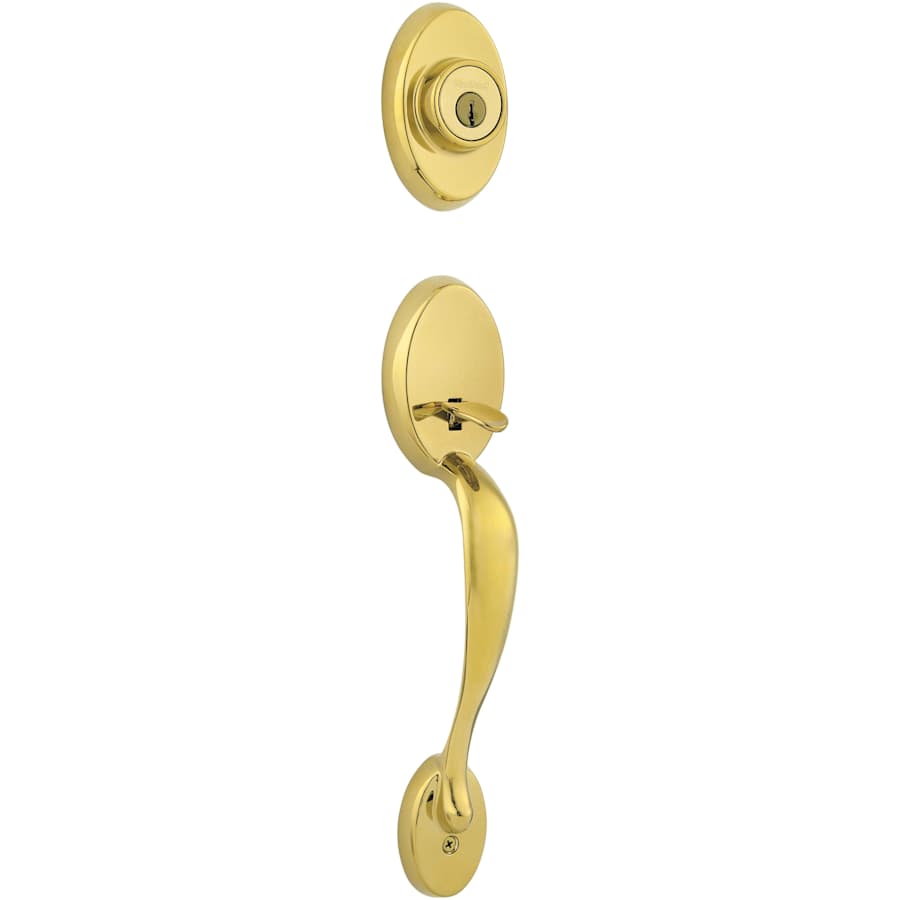

Single Cylinder Keyed Entry (Exterior Only): Exterior only single cylinder handlesets feature the exterior trim of a working mechanical lock set, and require an associated interior pack for full installation. Single cylinder handlesets lock and unlock from the exterior with a key, and from the interior with an associated thumb turn.
Features:
Tested to exceed ANSI/BHMA Grade 1 security requirements
Constructed of solid brass for durability and dependability
Required installation hardware included with interior pack (sold separately)
Covered by Kwikset’s limited lifetime manufacturer warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″”
Handing: Reversible Left or Right
Latch Faceplate: Drive-In, Round Corner, or Square Corner

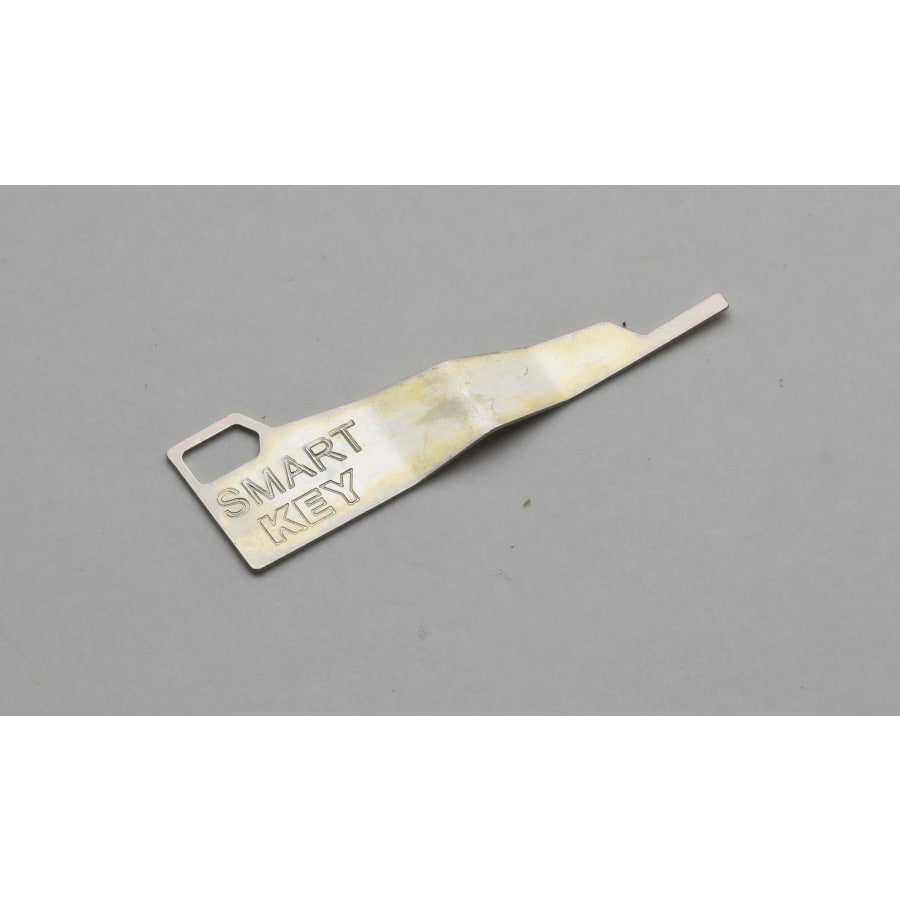

Cylinder: SmartKey 5 Pin KW1, SmartKey
Mounting Center to Center: 5-1/2″
Grip Center to Center: 9-11/16″
Overall Height: 18-1/2″
Handle Projection: 2-1/8″
Trim Height: 13″
Trim Width: 2-13/16″
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Chelsea Collection
Specifications
| Thermostat | Transitional |
| Function | Keyed Entry |
| Material | Brass |
| Shape | Oval |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | KW1 |
| Handle Style | Grip |
| Concealed Screws | No |
| Handle Material | Metal |
| Adjustable Throughbolt | No |
| Handle Design | Chelsea |
| Interconnected | No |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Lock Style | Single Point |
| Mounting | Sectional |
| Panic Proof | No |
| Solid Construction | Solid Brass |
| Certifications | ANSI |
| Collection | Chelsea |
| Series | Signature Series |
| Approved for Commercial Use | No |
| ADA | No |
| Manufacturer Warranty | Limited Lifetime |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 1 |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-3/4" |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.15625 in. |
| Trim Height | 13 in. |
| Trim Width | 2.8125 in. |
| Grip Center to Center | 9.6875 in. |
| Overflow Height | 18.5 in. |
| Cylinder Included | Yes |
| Interior Included | No |
| Color | Lifetime Polished Brass, Polished Chrome, Satin Nickel, Venetian Bronze |
