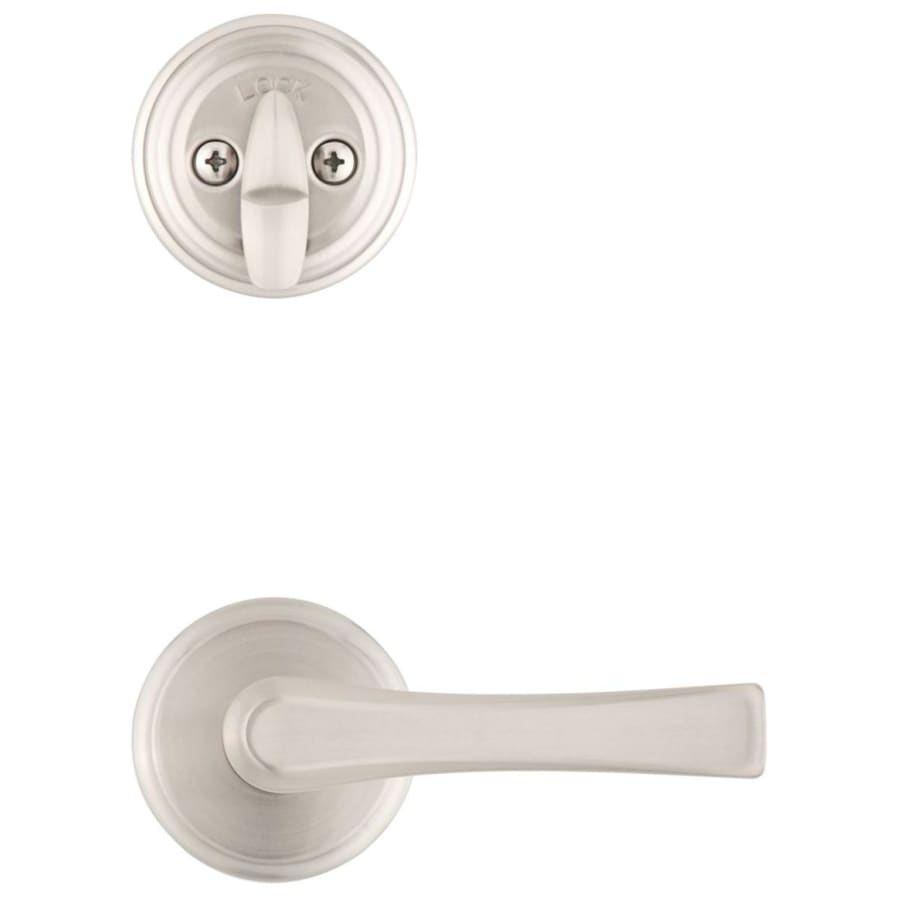

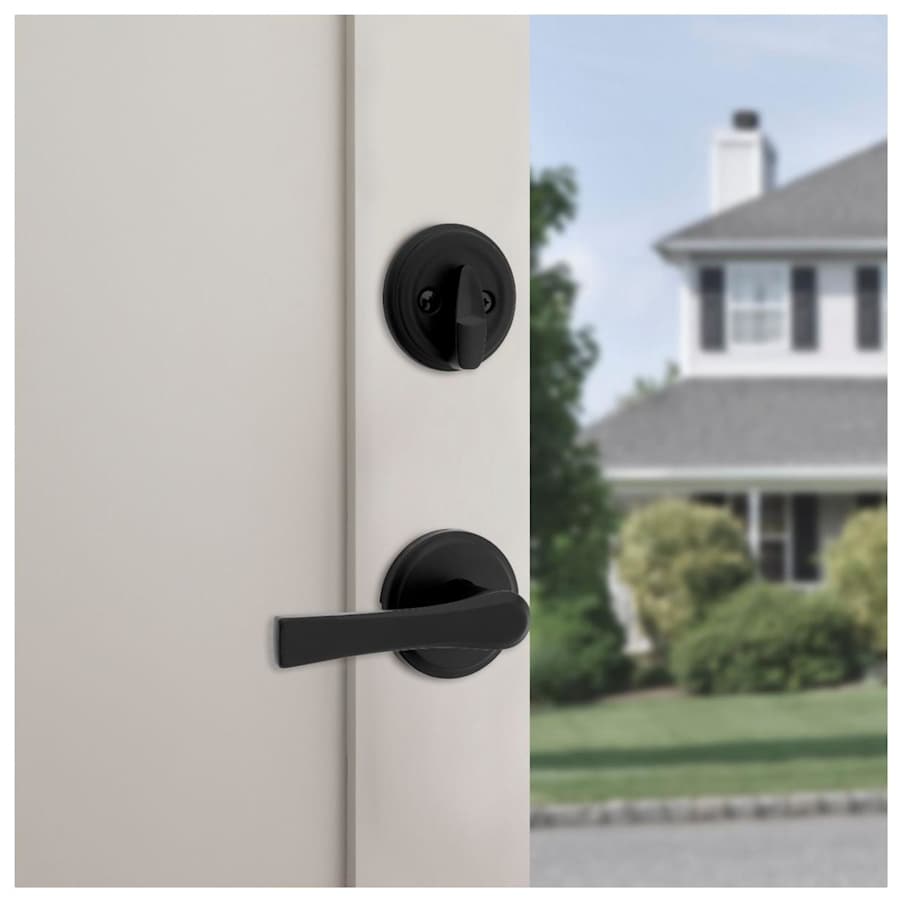

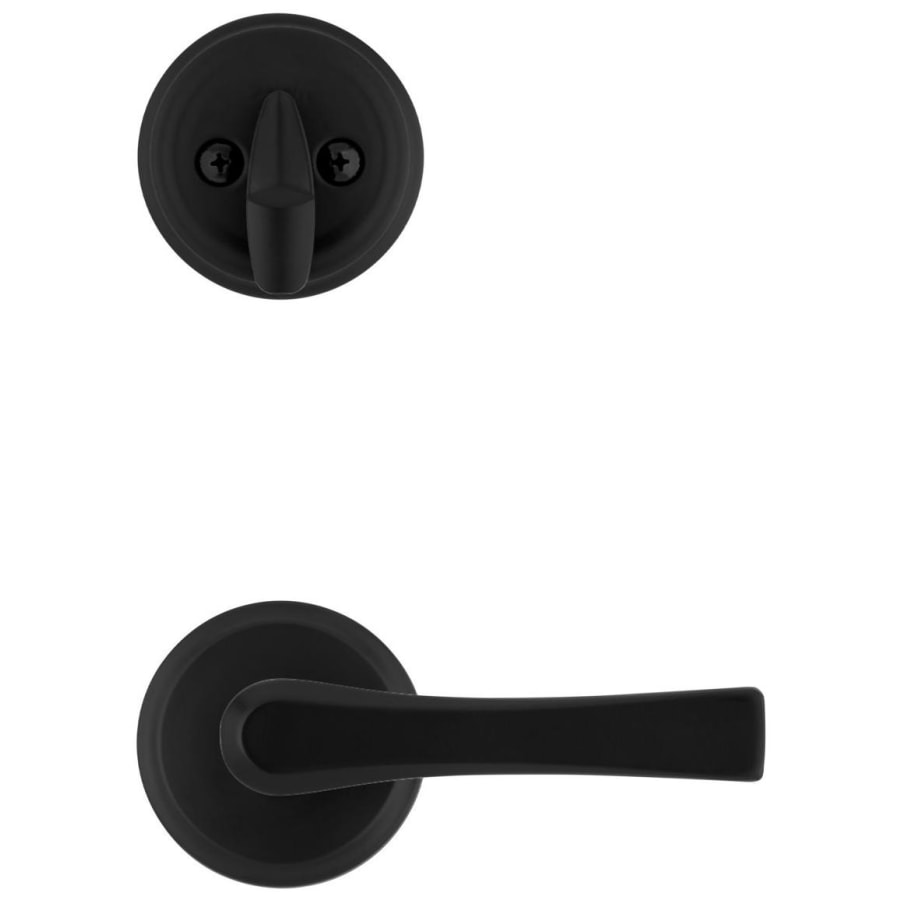

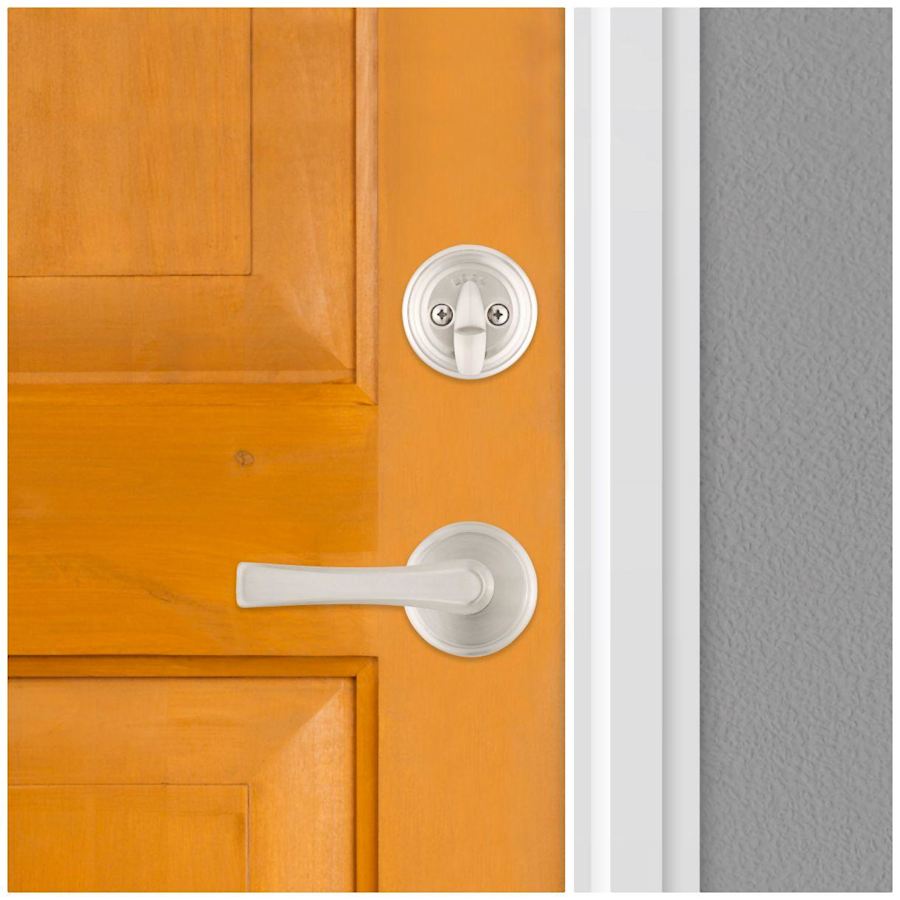

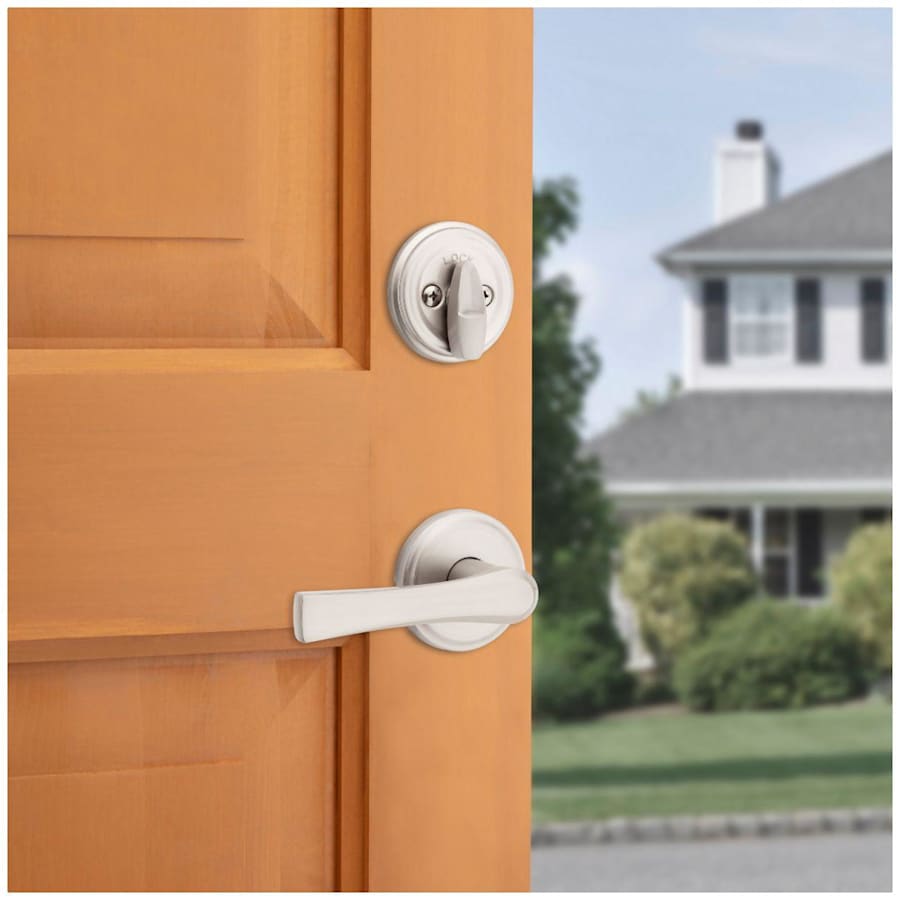

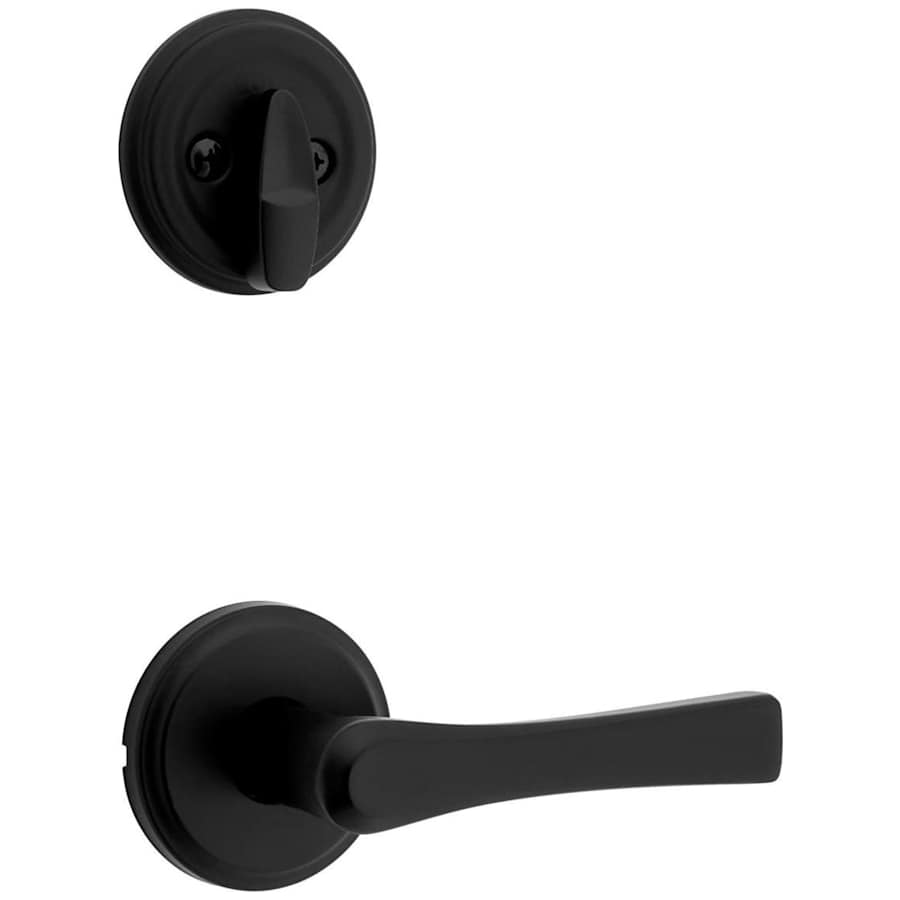

Single Cylinder Keyed Entry (Interior Only):Single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation. Includes a thumbturn for the interior side of the deadbolt and a knob or lever for the inside of the door.
Â
Features:
Tested to exceed ANSI/BHMA Grade 3 security requirements
Constructed of solid brass for durability and dependability
Installs easily with all necessary mounting hardware included
Covered by Kwikset’s limited lifetime manufacturer warranty
ADA compliant lever
Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Latch Faceplate: Drive-In, Round Corner, or Square Corner
Mounting Center to Center: 5-1/2″
Handle Projection: 2-1/2″
Trim Height: 2-5/8″
Trim Width: 2-5/8″
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Katella Collection
Specifications
| Thermostat | Contemporary |
| Function | Keyed Entry |
| Material | Brass |
| Shape | Straight |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Keyway | KW1 |
| Handle Style | Lever |
| Concealed Screws | No |
| Handle Material | Metal |
| Handle Design | Katella |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Panic Proof | No |
| Solid Construction | Solid Brass |
| Rosette Shape | Round |
| Collection | Katella |
| Series | Signature Series |
| Approved for Commercial Use | No |
| ADA | Yes |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| BHMA Certification | Grade 3 |
| Product Weight | 1.25 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Center to Center | 5.5 in. |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.46875 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Cylinder Included | No |
| Color | Matte Black, Satin Nickel |
