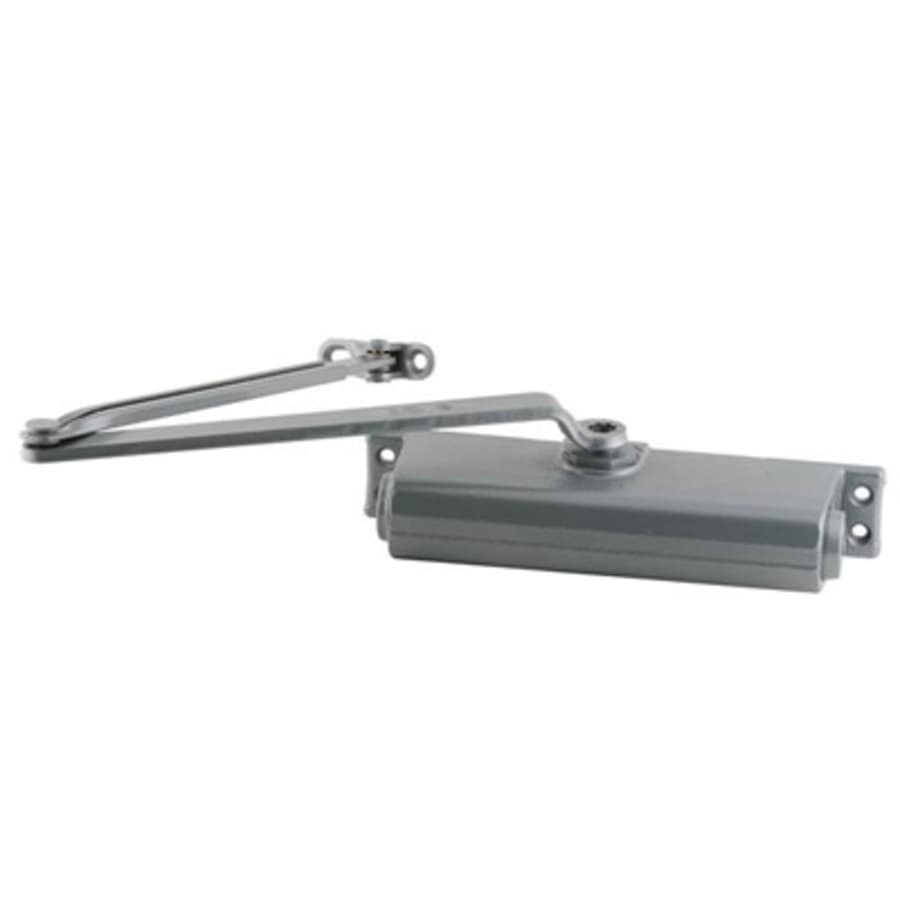

1260 Series Surface Mount Door Closer Adjustable from sizes 1 to 5
The LCN No Leak Commercial Series Closers are designed especially for the unique opening needs of the commercial market. Each of the closers in the No Leak Series features solid, cast iron cylinder construction and special V-Shield™ sealing technology; so your closers are guaranteed for 10 years not to leak even under the most demanding conditions. The 1260 Series combines the best features from the previous 1070 and 1370 into a single versatile and economical cast iron closer, with dual mounting capability. The 1260 is adjustable spring sizes 1-4 and includes LCN’s peel-n-stick installation templates and a convenient spring adjust pointer.
Certifications: Having been tested under ANSI Standard A156.4, with a BHMA Grade 1 rating, options that meet ADA requirements, and being UL and cUL listed when the hold open function isn’t selected, the LCN 1260 Series validates that it’s up to the specifications you’re required to fill, is backed by industry standards, and has the versatility to work with a wide array of installation and application needs.
Features:
Hinge, Top Jamb and Parallel Mounting Available for Right or Left Handed Doors
Multiple Arm Options
For 42 Inch Exterior Doors and 54 Inch Interior Doors
Most Options Meet ADA Requirements
UL and cUL Listed for Self-Closing Doors without Open Hold Arm
ANSI Standard A156.4, Grade One.
For Commercial Applications
Special Rust Inhibitor (SRI) Option for More Durable Finish
Mounts to Most Common Commercial Footprint (3/4″ x 9-1/16″)
Includes Screw Pack
Since its founding in 1926, LCN has specialized in solving door control problems through the use of high quality, innovative door control products. By adhering to high standards of performance, LCN has earned a leadership role within the industry and is committed to meeting door control challenges of the future. With representatives located throughout the world, LCN provides the products and services necessary to solve your door control problems.
Additional LCN Links
View the Manufacturer Warranty
Browse all LCN Products
LCN 1260 Collection
Specifications
| Height | 2.5 in. |
| Door Thickness | 1-3/4" |
| Projection | 2.875 in. |
| Closer Body Length | 9.9375 in. |
| Closer Size | 1-5 |
| Horizontal Mounting Holes | 9.0625 in. |
| Max Door Opening | 180 Degrees |
| Max Door Width | 54 in. |
| Vertical Mounting Holes | 9.0625 in. |
| Material | Cast Iron |
| Handshower | Left, Reversible, Right |
| Adjustable Backcheck | No |
| Adjustable Spring | Yes |
| Arm Type | Hold Open |
| Barrier Free | Yes |
| Delay Action | No |
| Hold Open | Optional |
| Mounting | Parallel, Regular, Top Jamb, Tri-Pack |
| Operation Mode | Hydraulic |
| Shell Material | Plastic |
| ADA | Yes |
| Collection | 1260 |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 10 Year |
| Certifications | ANSI, UL10C, UL |
| Series | 1260 |
| Fire Rated | Yes |
| ANSI Certification | A156.4 |
| Usage Level | Standard Duty |
| BHMA Certification | Grade 1 |
| Cushion Stop | Optional |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum, Black, Dark Bronze, Light Bronze, Sprayed Brass, Statuary Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Neutrals |
