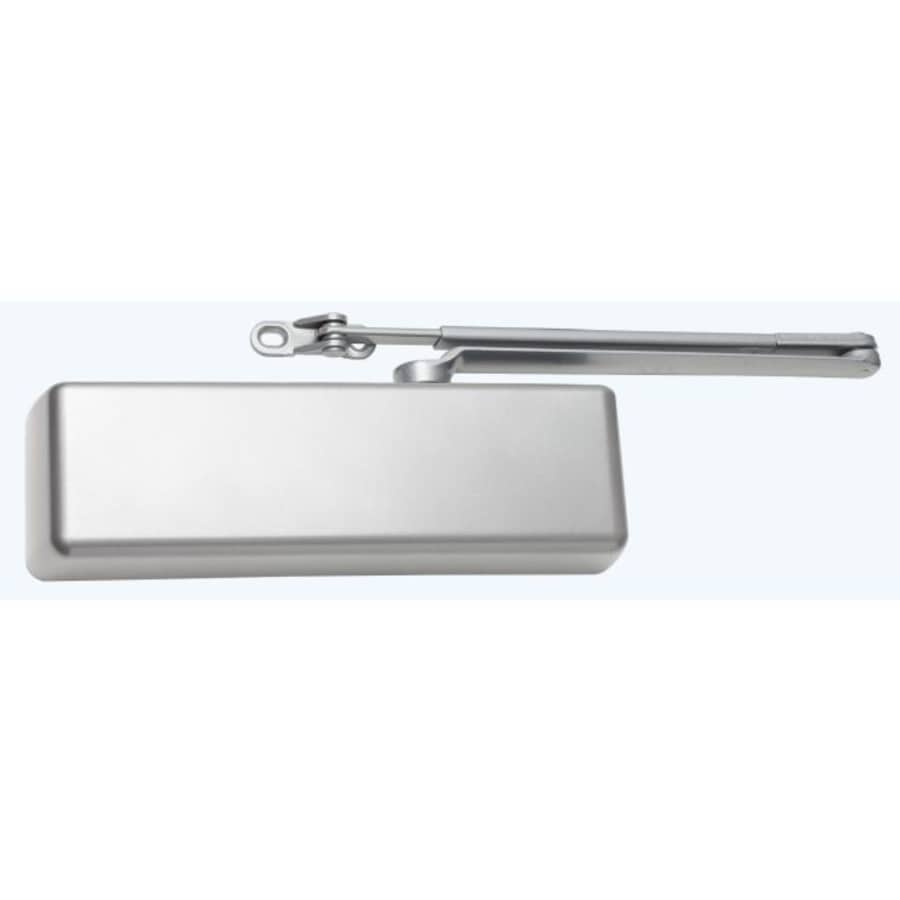

Features:
Constructed of high quality cast iron
Grade 1 standard duty adjustable hydraulic door closer
Tri-pack mounting for left or right handed doors
Installs easily with all mounting hardware included
Adjustable spring size 1-4 door closer
Covered under a 1 year limited warranty
Specifications:
Closer Body Length: 10-3/8″
Horizontal Mounting Holes: 7-1/16″
Vertical Mounting Holes: 1-3/4″
Max Door Width: 48″
Max Door Opening: 180°
ADA Barrier Free: Yes
UL Listed: Yes
Fire Rated: Yes
Hold Open: No
Cushion Stop: No
Delay Action: No
Additional LCN Links
View the Manufacturer Warranty
Browse all LCN Products
LCN 4030 Series Collection
Specifications
Dimensions and Measurements
| Height | 2.875 in. |
| Product Weight | 7.9 lbs. |
| Projection | 1.75 in. |
| Door Thickness | 1-3/4" |
| Closer Body Length | 10.375 in. |
| Closer Size | 1-4 |
| Horizontal Mounting Holes | 7.0625 in. |
| Max Door Opening | 180 Degrees |
| Max Door Width | 48 in. |
| Vertical Mounting Holes | 1.72 in. |
Characteristics and Features
| Material | Cast Iron |
| Handshower | Left, Reversible, Right |
| Barrier Free | Yes |
| Adjustable Backcheck | No |
| Adjustable Spring | Yes |
| Arm Type | Standard |
| Delay Action | No |
| Hold Open | No |
| Mounting | Tri-Pack |
| Operation Mode | Hydraulic |
| Shell Material | Cast Iron |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Collection | 4031 |
| Country Of Origin | USA |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| Series | 4030 Series |
| Certifications | ANSI, UL10C, UL |
| BHMA Certification | Grade 1 |
| Usage Level | Standard Duty |
| ANSI Certification | A156.4 |
| Fire Rated | Yes |
Included Components
| Cushion Stop | No |
Electrical and Operational Information
| Adjustable Closing Speed | No |
| Adjustable Latching Speed | No |
| Color | Aluminum, Black, Dark Bronze, Sprayed Brass, Statuary Bronze |
| Color Tone | Blacks, Brass Tones, Bronze Tones, Neutrals |
