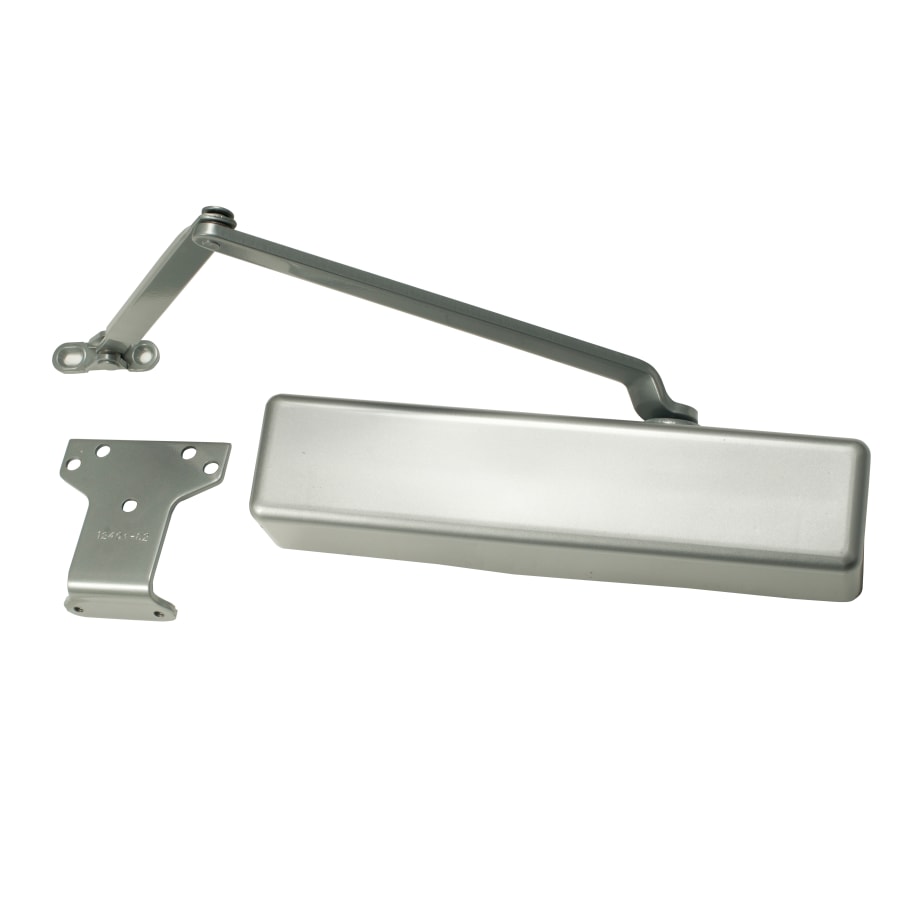

1460T Series Surface Mount Slim Line Track Door Closer for Interior Doors up to 34″
Specially designed for interior doors with narrow head frames and top rails, the LCN 1460T series is a great complement to modern styles. With a variety of powder coated finish options, that can have a special rust inhibitor applied for increased durability, and standard, hold open and bumper track options to assure this top quality product can fit your application, the 1460T series meets the needs for commercial and institutional applications with unique door frames.
Certifications: Having been tested under ANSI Standard A156.4, with a BHMA Grade 1 rating, options that meet ADA requirements, and being UL and cUL listed when the hold open function isn’t selected, the LCN 1460T Series validates that it’s up to the specifications you’re required to fill, is backed by industry standards, and has the versatility to work with a wide array of installation and application needs.
Features:
Hinge, Top Jamb and Stop Face Surface Mount Capabilities
Cylinder Suited for Size 2 Doors (ADA)
Multiple Track Options
For Interior Doors 34 Inches Wide
UL and cUL Listed for Self-Closing Doors without Open Hold Track
ANSI Standard A156.4, Grade One.
Special Rust Inhibitor (SRI) Option for More Durable Finish
Includes Screw Pack
Since its founding in 1926, LCN has specialized in solving door control problems through the use of high quality, innovative door control products. By adhering to high standards of performance, LCN has earned a leadership role within the industry and is committed to meeting door control challenges of the future. With representatives located throughout the world, LCN provides the products and services necessary to solve your door control problems.
Additional LCN Links
View the Manufacturer Warranty
Browse all LCN Products
LCN 1460T Collection
Specifications
| Height | 2 in. |
| Projection | 2.375 in. |
| Door Thickness | 1-3/4" |
| Closer Body Length | 12.25 in. |
| Closer Size | 1-2 |
| Horizontal Mounting Holes | 7.5 in. |
| Max Door Opening | 180 Degrees |
| Max Door Width | 34 in. |
| Vertical Mounting Holes | 7.5 in. |
| Material | Cast Iron |
| Handshower | Left, Reversible, Right |
| Adjustable Backcheck | Yes |
| Adjustable Spring | Yes |
| Arm Type | Standard |
| Barrier Free | Yes |
| Delay Action | No |
| Hold Open | No |
| Mounting | Regular, Stop Face, Top Jamb |
| Operation Mode | Hydraulic |
| Shell Material | Plastic |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 10 Year |
| Collection | 1460 |
| Series | 1460 |
| Certifications | ANSI, UL10C, UL |
| ANSI Certification | A156.4 |
| Usage Level | Standard Duty |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Cushion Stop | No |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum, Dark Bronze, Light Bronze, Sprayed Brass, Statuary Bronze |
| Color Tone | Brass Tones, Bronze Tones, Neutrals |
