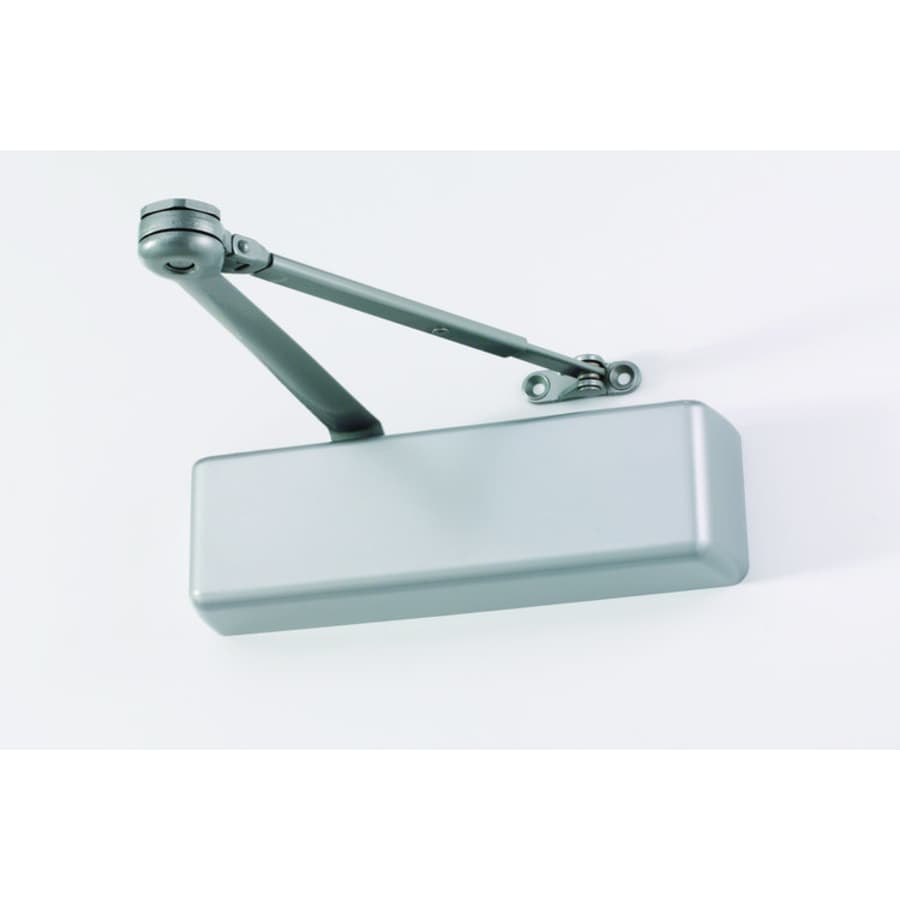

4010T Series Surface Mount Interior Track Door Closer for 34 to 48 Inch Doors
LCN 4010T Series closers feature a modern design engineered for easy installation and superior performance in an institutional application and other high traffic areas. The 4010 SMOOTHEE is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications with fast and accurate installation.
The 4010T series is tested and certified under ANSI Standard A156.4, grade one and is UL & cUL Listed. These certifications along with the combination of cast iron and forged steel construction with all weather fluid go to show that LCN has left nothing out in the design and durability of this popular heavy duty track closer, not to mention, the 4011 cylinder also meets ADA requirements.
Features:
Hinge Mounted
Cylinder Size Options for Added Versatility
Multiple Track Options
For Interior Doors 34 to 48 Inches Wide
Cylinder Choice 4011T-3071 Meets ADA Requirements
UL and cUL Listed for Self-Closing Doors without Open Hold Track
ANSI Standard A156.4, Grade One.
For Institutional and other Rugged High Traffic Applications
Special Rust Inhibitor (SRI) Option for More Durable Finish
Includes Screw Pack
Fast and Accurate Installation
Since its founding in 1926, LCN has specialized in solving door control problems through the use of high quality, innovative door control products. By adhering to high standards of performance, LCN has earned a leadership role within the industry and is committed to meeting door control challenges of the future. With representatives located throughout the world, LCN provides the products and services necessary to solve your door control problems.
Additional LCN Links
View the Manufacturer Warranty
Browse all LCN Products
LCN 4010T Collection
Specifications
| Door Thickness | 1-3/4" |
| Height | 3.5 in. |
| Projection | 2.25 in. |
| Closer Size | 6 |
| Max Door Width | 48 in. |
| Closer Body Length | 12.25 in. |
| Horizontal Mounting Holes | 6 in. |
| Max Door Opening | 180 Degrees |
| Vertical Mounting Holes | 6 in. |
| Material | Cast Iron |
| Arm Type | Hold Open |
| Handshower | Left, Reversible, Right |
| Barrier Free | No |
| Adjustable Backcheck | Yes |
| Adjustable Spring | No |
| Delay Action | No |
| Hold Open | Optional |
| Mounting | Regular |
| Operation Mode | Hydraulic |
| Shell Material | Plastic |
| Approved for Commercial Use | Yes |
| Collection | 4010T |
| Series | 4010 |
| ADA | No |
| Manufacturer Warranty | 30 Year |
| ANSI Certification | A156.4 |
| Certifications | ANSI, UL10C, UL |
| BHMA Certification | Grade 1 |
| Usage Level | Heavy Duty |
| Fire Rated | Yes |
| Cushion Stop | No |
| Adjustable Closing Speed | Yes |
| Adjustable Latching Speed | Yes |
| Color | Aluminum, Sprayed Brass |
| Color Tone | Brass Tones, Neutrals |
