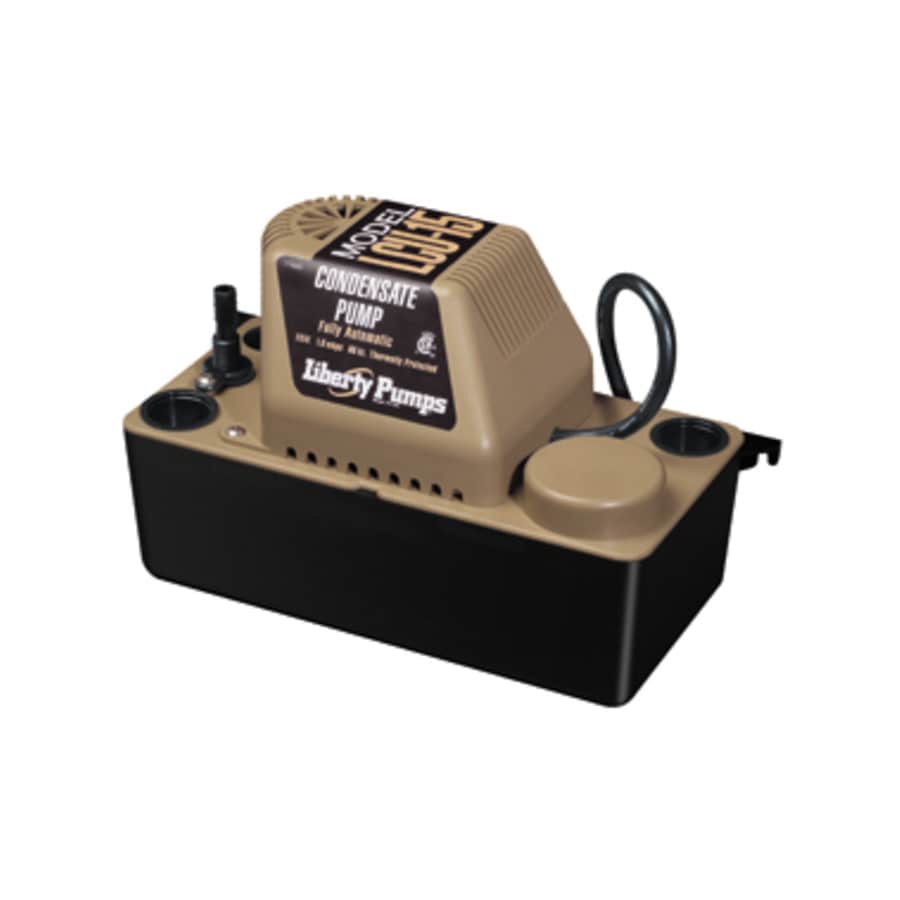

LCU 1/50 HP Condensate Pump for 15′ Head
The new LCU-Series Condensate Pumps from Liberty are designed to handle removal of condensate from high efficiency furnaces, A/C equipment, dehumidifiers, ice machines and other applications producing condensate.
Features include a corrosion-resistant stainless steel shaft, high-impact ABS tank and fully automatic operation.
Liberty Pump LCU-15 Features:
Wall mounted
Tank constructed of high impact ABS plastic
Three intake holes
3/8″ O.D. outlet
Barbed and threaded discharge connection
Removable check valve
Stainless steel shaft
72″ power cord with ground
Thermally protected
Fully automatic
Quiet operation
Liberty Pump LCU-15 Specifications:
Height: 6.5″
Width: 5″
Length: 11.125″
Category: Condensate Removal Pump
Connection Size: 3/8″
Flow Rate (GPM): 1.5
Maximum Head Height: 15
Motor HP: 1/50
Maximum Fluid Temperature(F): 150 Degrees
Voltage: 115 V
Weight: 4 lbs.
Additional Liberty Pumps Links
View the Manufacturer Warranty
Browse all Liberty Pumps Products
Liberty Pumps LCU Collection
Specifications
| Flow Rate (GPM) | 1.5 |
| Maximum Head Height | 15 in. |
| Voltage | 115 |
| Horsepower | .02 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 150 °F |
| Shutoff Head in Feet | 15 |
| Automatic | Yes |
| Material Casing | Plastic |
| Material Shaft | Stainless Steel |
| CARB approved | Yes |
