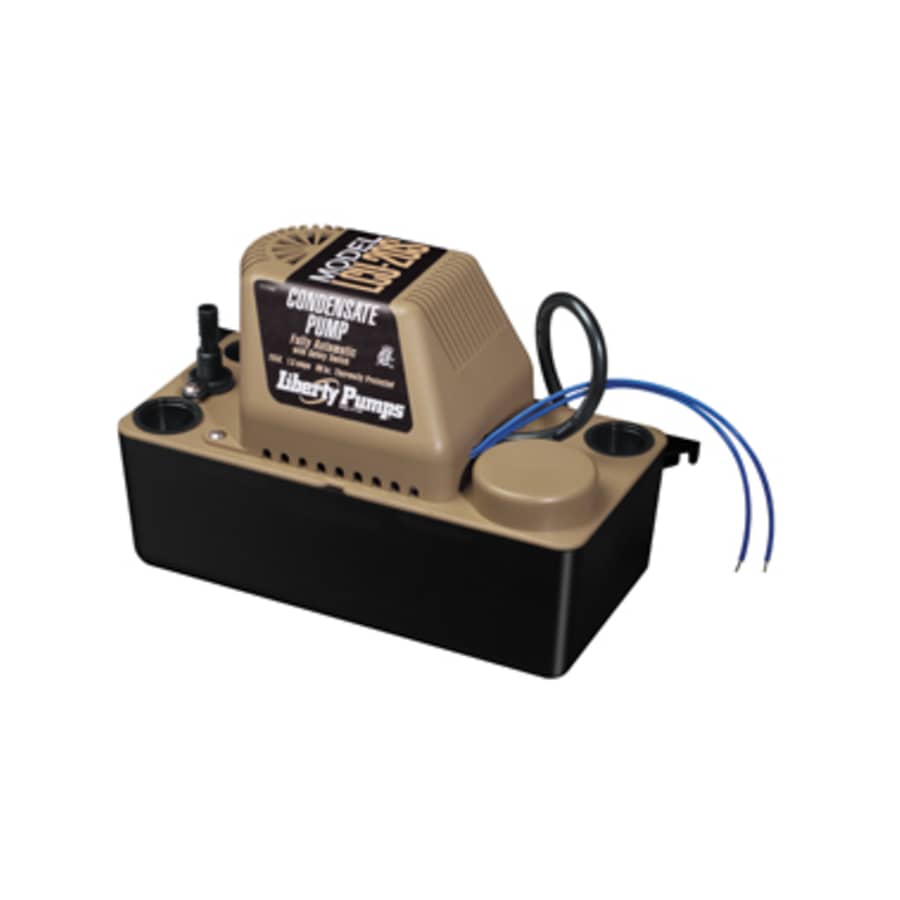

LCU 1/30 HP Condensate Pump with Safety Switch for 20′ HeadLiberty Pump LCU-20S Features:
Wall mounted
Tank constructed of high impact ABS plastic
Built in safety switch
Three intake holes
3/8″ O.D. outlet
Barbed and threaded discharge connection
Removable check valve
Stainless steel shaft
72″ power cord with ground
Thermally protected
Fully automatic
Quiet operation
Liberty Pump LCU-20S Specifications:
Height: 6.5″
Width: 5″
Length: 11.125″
Category: Condensate Removal Pump
Connection Size: 3/8″
Flow Rate (GPM): 1.8
Maximum Head Height: 20
Motor HP: 1/30
Maximum Fluid Temperature(F): 150 Degrees
Voltage: 115 V
Weight: 5 lbs.
Additional Liberty Pumps Links
View the Manufacturer Warranty
Browse all Liberty Pumps Products
Liberty Pumps LCU Collection
Specifications
| Flow Rate (GPM) | 1.8 |
| Maximum Head Height | 20 in. |
| Voltage | 115 |
| Horsepower | .033 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 150 °F |
| Automatic | Yes |
| Shutoff Head in Feet | 21 |
| Material Casing | Plastic |
| Material Shaft | Stainless Steel |
| CARB approved | Yes |
