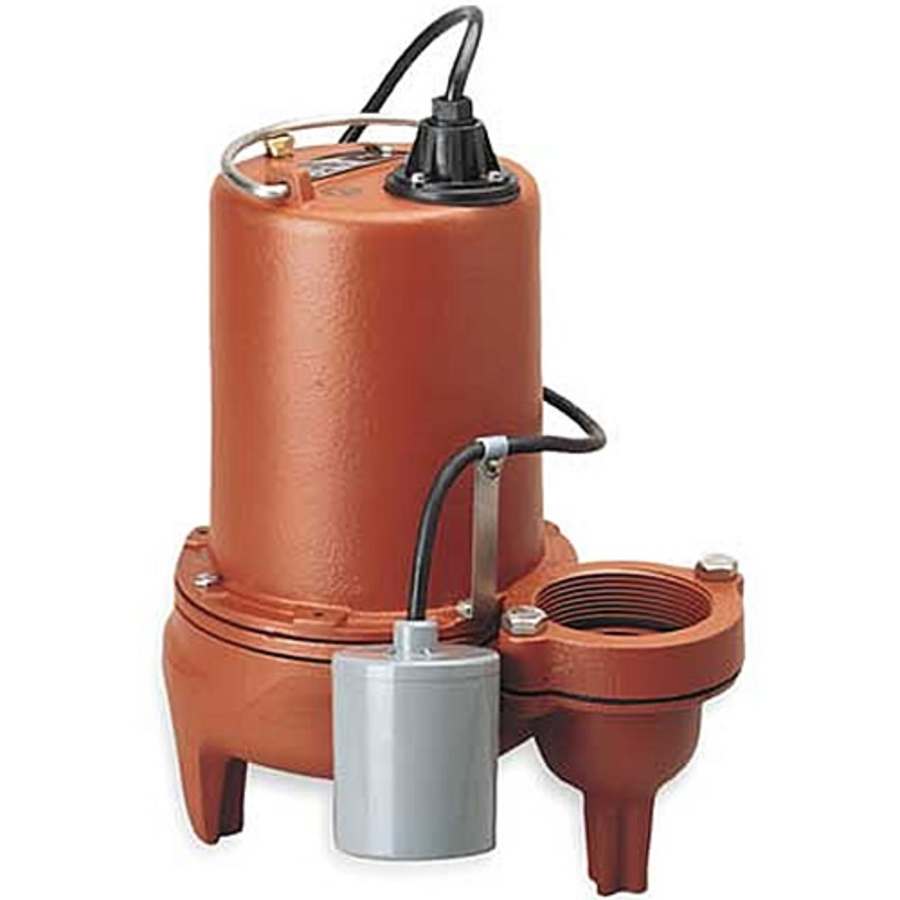

Automatic Submersible Cast Iron Sewage Pump
A workhorse for residential and light commercial sewage apps.
Heavy-Duty Epoxy Powder Coated Cast Iron Construction
Designed to provide years of reliable performance
Adjustable, Mercury-Free, Wide Angle Tether Float Switch
Provides automatic or manual operation via piggyback plug
Rugged and Thermally Protected 3/4 HP Motor
Hermetically sealed, permanently lubricated design
2-Vane Semi-Open Cast Iron Impeller
Heavy-duty design, passes spherical solids up to 2″
High Capacity 3″ Discharge
Easily connect to your existing 3-inch discharge line
Quick-Disconnect 10′ Power Cord
Allows for easy replacement of cord without breaking motor seals
Stainless Steel Rotor Shaft with Unitized Ceramic Carbon Seal
With permanently lubricated bearings for extended pump life
Non-Corrosive Stainless Steel Fasteners
Increases the lifespan of the pump even in the harshest systems
3-Year Limited Warranty
Additional Liberty Pumps Links
View the Manufacturer Warranty
Browse all Liberty Pumps Products
Specifications
| Height | 16.4 in. |
| Width | 9 in. |
| Length | 12.6 in. |
| Cord Length | 10 in. |
| Discharge Diameter | 3 in. |
| Flow Rate by Feet of Head | 6300 gal / 15 ft, 7560 gal / 10 ft, 9480 gal / 0 ft, 4500 gal / 20 ft, 8640 gal / 5 ft |
| Maximum Diameter Solids | 2 in. |
| Manufacturer Warranty | 3 Year Residential |
| Automatic | Yes |
| Shutoff Head in Feet | 28 |
| Flush Type | Tether Switch |
| Housing Material | Cast Iron |
| Solid Handling | 2 Inch |
| Built-In Check Valve | No |
