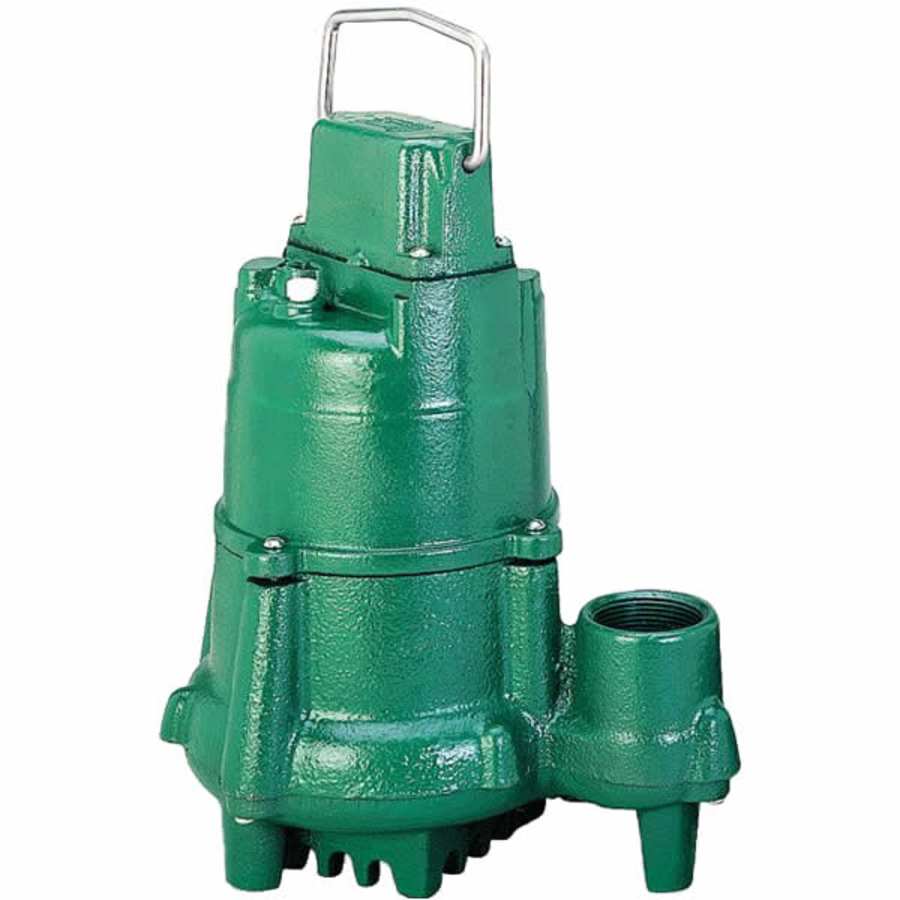

Zoeller 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic)

Zoeller 98-0002 Features:

Float-operated 2-pole mechanical switch
Corrosion-resistant, powder coated epoxy finish
Durable, cast iron construction
Cast iron switch case, motor, pump housing and base
No sheet metal parts to rust or corrode
All castings are cast iron class 25-30 25000# tensile strength
Stainless steel screws, guard, handle, arm and seal assembly
Permanent split capacitor motor, oil-filled and hermetically-sealed, automatic reset thermaloverload protection
Bearings – upper and lower oil-fed cast iron
Carbon and ceramic shaft seal
Entire unit pressure-tested after assembly
Watertight, neoprene square ring between motor and pump housing
Passes 1/2” spherical solids
No screens to clog
On point: 9-1/2”

Zoeller 98-0002 Specifications:

Height: 12-1/16″
Width: 10-1/8″
Motor: 1/2 HP
Voltage: 115
Hertz: 60
RPM: 1725
Discharge Size: 1-1/2″ NPT
Max Flow Rate: 72 gallons-per-minute
Max Operating Temperature: 130*

NON-AUTOMATIC – Requires Float Switch

Submersible Cast Iron Sump Pump

Offers years of reliable, trouble-free operation

No Sheet Metal Parts To Rust Or Corrode

Stainless steel screws, guard, handle, arm and seal assembly

Thermally Protected, Permanent Split Capacitor Motor

Oil-filled and hermetically sealed to prevent overheating

Carbon and Ceramic Shaft Seal

Assures maximum protection for extended pump life

Powder Coated Epoxy Finish

Provides a corrosion resistant exterior

Clog-Resistant Design

No screen to interfere with flowing debris
Capable of passing 1/2″ diameter solids

Industry Leading Quality Control

Entire unit is pressure tested after assembly
Additional Zoeller Links
View the Manufacturer Warranty

Specifications
