Product Features:

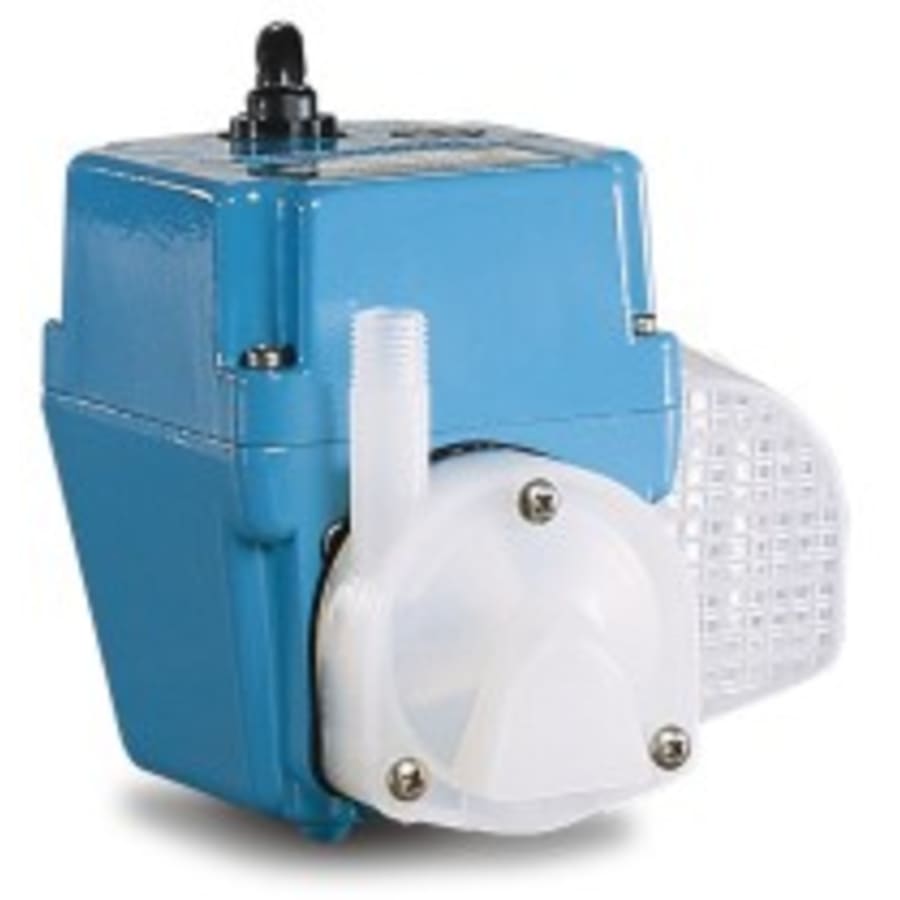

2E-N oil-filled direct drive pump for water transfer/recirculation/displays and air conditioners, designed for submersible
1/40 HP oil-filled thermally protected motor
Features an epoxy coated cast aluminum housing and cover, polypropylene volute and elbow, nitrile shaft seal, and polyethylene screen
UL listed
Features a 1 year residential warranty
Product Specifications:
Capacity: 300 GPH @ 1′
Shut Off: 11.8′
Liquid temperature: Up to 120 degrees F
Discharge: 1/4″ MNPT
Intake: Hooded
Impeller: Nylon
Cord Length: 6′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 4.6, 4.75 in. |
| Width | 3.5 in. |
| Product Weight | 4.67 lbs. |
| Length | 5.6 in. |
| Depth | 5.5 in. |
| Flow Rate (GPM) | 13.5 |
| Cord Length | 72 in. |
| Discharge Diameter | 0.25 in. |
| Inside Diameter | 0.75 in. |
| Flow Rate by Feet of Head | 300 gal / 1 ft, 255 gal / 3 ft, 208 gal / 5 ft, 70 gal / 10 ft |
| Shut Off Height | 11.8 in. |
| Shut Off Pressure | 5.1 |
Characteristics and Features
| Material | Aluminum, Nylon, Rubber |
| Configuration | Submersible Pump |
| Submersible | Yes |
| Shutoff Head in Feet | 11.8 |
Electrical and Operational Information
| Wattage | 100 |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Amperage | 3.5, 1.7 |
| Horsepower | 0.025, 0.08 |
Warranty and Product Information
| Certifications | UL |
| CARB approved | Yes |
| Color | Steel |
| Color Tone | Steel Tones |
