Product Features:

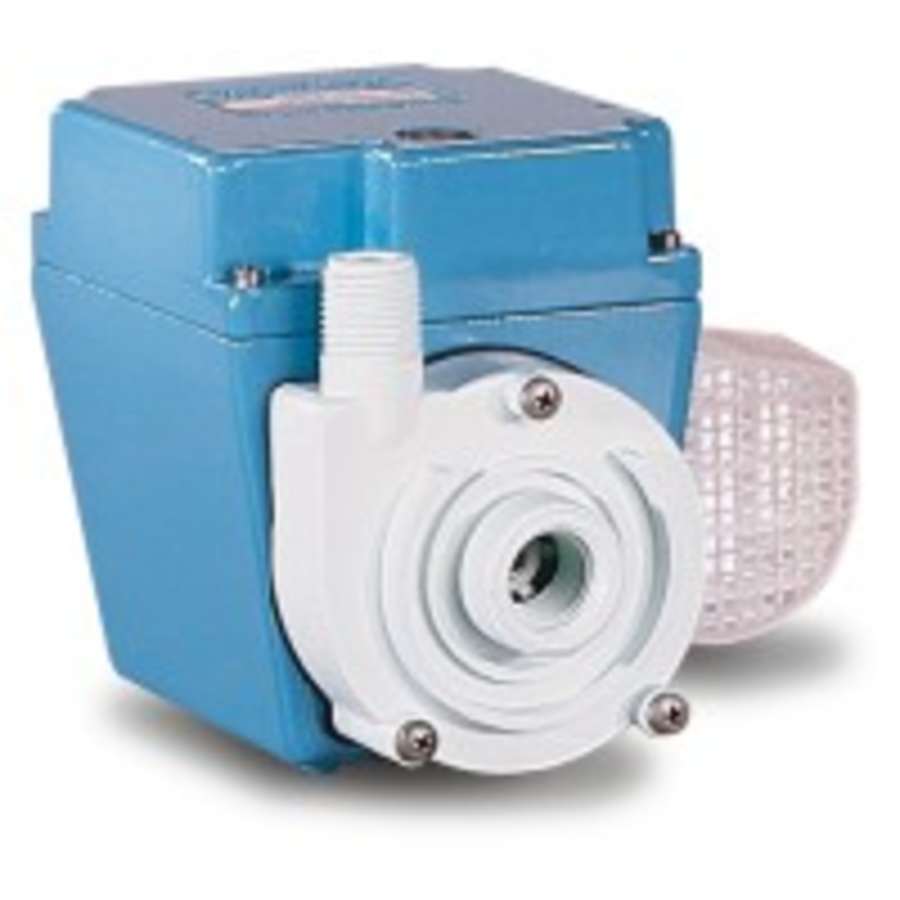

3E-34N oil-filled direct drive pump for water transfer/recirculation/displays and machine tool coolants, designed for submersible or in-line use
1/15 HP oil-filled motor
Features an epoxy coated cast aluminum housing and cover, nylon volute, stainless steel backplate, viton shaft seal, and polyethylene screen
UL listed
Features a 1 year residential warranty
Product Specifications:
Capacity: 670 GPH @ 1′
Shut Off: 20.3′
Liquid temperature: Up to 120 degrees F
Discharge: 1/2″ MNPT
Intake: 3/4″ FNPT
Impeller: Nylon
Cord Length: 10′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Height | 5.4, 5.5 in. |
| Width | 4.4, 4.5 in. |
| Depth | 7 in. |
| Length | 7 in. |
| Product Weight | 8.25 lbs. |
| Flow Rate (GPM) | 60 |
| Cord Length | 11 in. |
| Flow Rate by Feet of Head | 575 gal / 5 ft, 460 gal / 10 ft, 10.83 gal / 1 ft, 650 gal / 3 ft |
| Shut Off Height | 20.3 in. |
| Shut Off Pressure | 8.8 |
Electrical and Operational Information
| Frequency | 60 Hertz |
| Wattage | 208 |
| Voltage | 115 |
| Amperage | 2.5 |
| Horsepower | 0.066, 0.3 |
Characteristics and Features
| Configuration | Dual Purpose Pump |
| Submersible | Yes |
| Shutoff Head in Feet | 20.3 |
Warranty and Product Information
| CARB approved | Yes |
| Color | Steel |
| Color Tone | Steel Tones |
