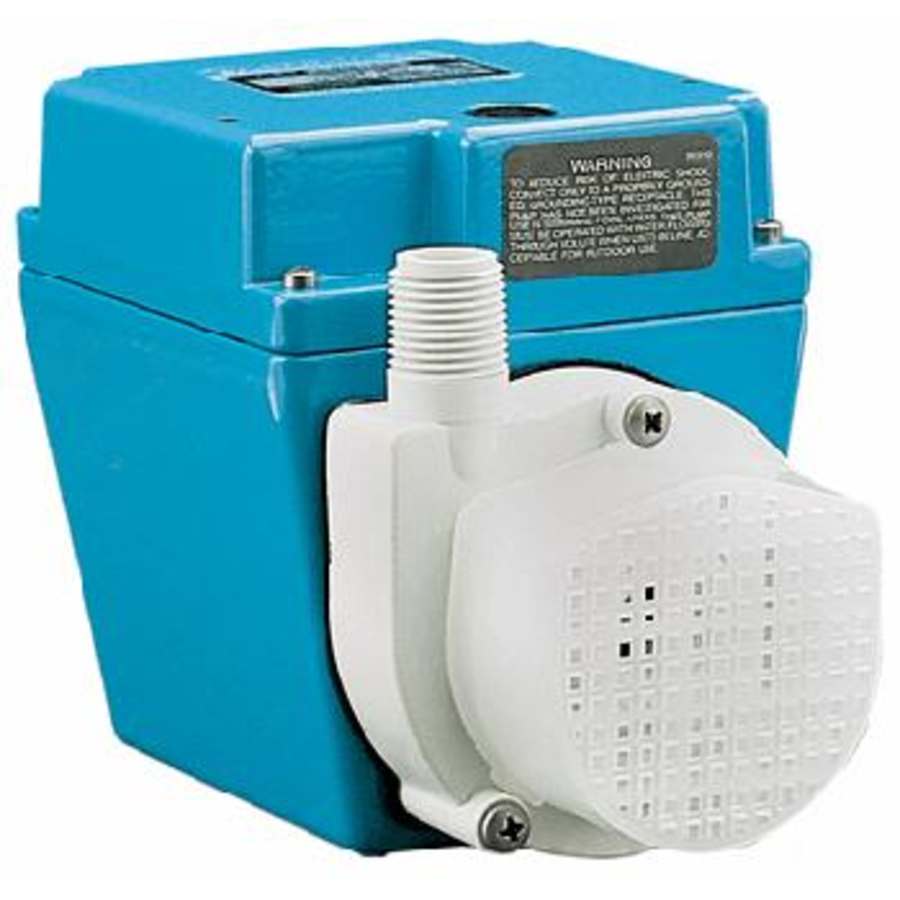

1/12 HP 810 GPH 115V Small Submersible Permanently Lubricated Pump with 12′ Power Cord – No Plug
Small submersible oil-filled pump with epoxy coated cast aluminum housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 710 GPH pump features a 1/2″ MNPT discharge, 23.1′ shut-off head capability, and screened inlet. The 4E series is not recommended for aquariums, swimming pools and fuel oil transfer.
810 GPH @ 1 ft
Operates submersed
12′ cord, no plug
230V 50/60 Hz
Epoxy-coated aluminum housing.
3/4″ FNPT inlet with snap-off screen for easy cleaning
1/2″ MNPT outlet accepts 3/4″ I.D. tubing.
Thermally protected.
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 5.5 in. |
| Product Weight | 8.5 lbs. |
| Width | 4.5 in. |
| Depth | 7 in. |
| Cord Length | 144 in. |
| Discharge Diameter | 0.5 in. |
| Flow Rate by Feet of Head | 12.42 gal / 5 ft, 13.5 gal / 1 ft, 13.16 gal / 3 ft, 10.22 gal / 10 ft, 2.88 gal / 20 ft |
| Shut Off Height | 24.5 in. |
| Shut Off Pressure | 10.6 |
| Material | Aluminum, Nylon, Rubber |
| Configuration | Submersible Pump |
| Submersible | Yes |
| Wattage | 210 |
| Voltage | 230 |
| Frequency | 50, 60 Hertz |
| Amperage | 1.7 |
| Horsepower | 0.083 |
| Color | Steel |
| Color Tone | Steel Tones |
