Product Features:

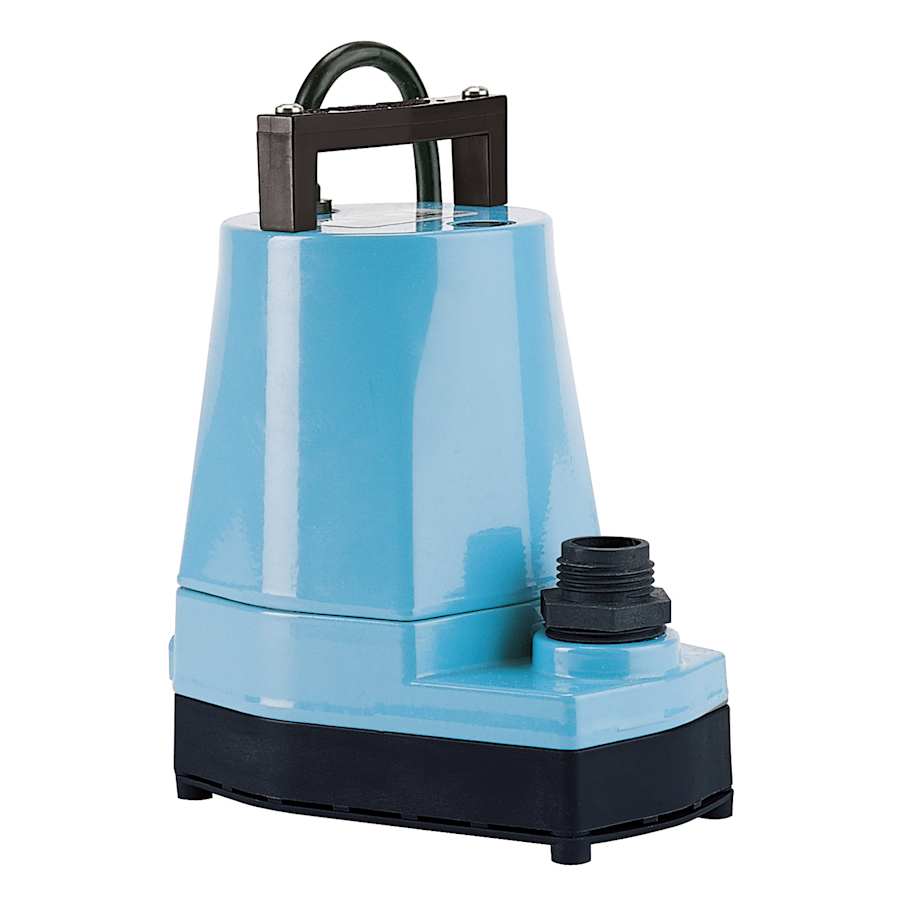

This submersible multi-purpose utility pump is ideal for emergency water removal and great for basements, rooftops, window wells and crawl spaces
1/6 HP energy efficient motor is continuous duty rated with thermal overload protection
Epoxy-coated cast aluminum construction with viton shaft seal designed to maximize pump life
Screened bottom intake removes water to within 1/8″ of the surface and screen removes for easy cleaning
Perfect for quick and easy household use; features a 1″ discharge with garden hose adaptor and 10′ power cord
Product Specifications:
Gallons per Minute: 20
Outlet Diameter: 1″
Total Head Lift: 26′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
Dimensions and Measurements
| Depth | 6.12 in. |
| Height | 8.6, 7.75 in. |
| Product Weight | 8.25 lbs. |
| Width | 4.31, 4.4 in. |
| Length | 6.1, 6.12 in. |
| Flow Rate (GPM) | 2.8 |
| Water Connection | 1" |
| Discharge Diameter | 1 in. |
| Inside Diameter | 0.5 in. |
| Cord Length | 120 in. |

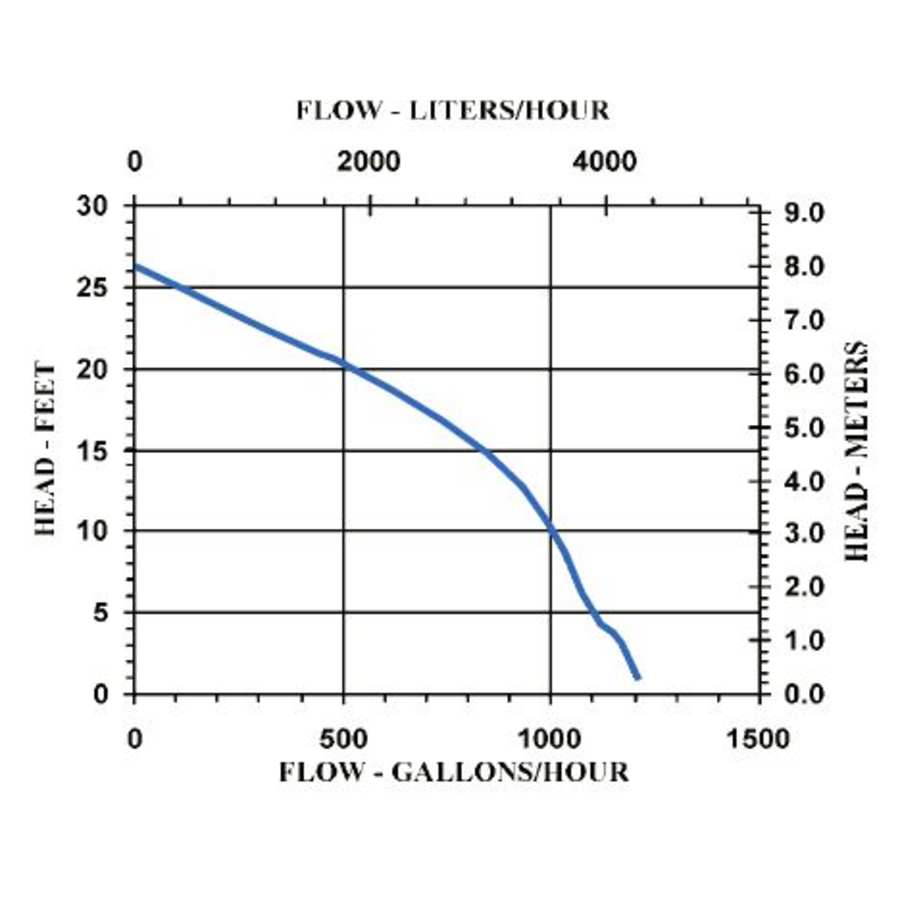

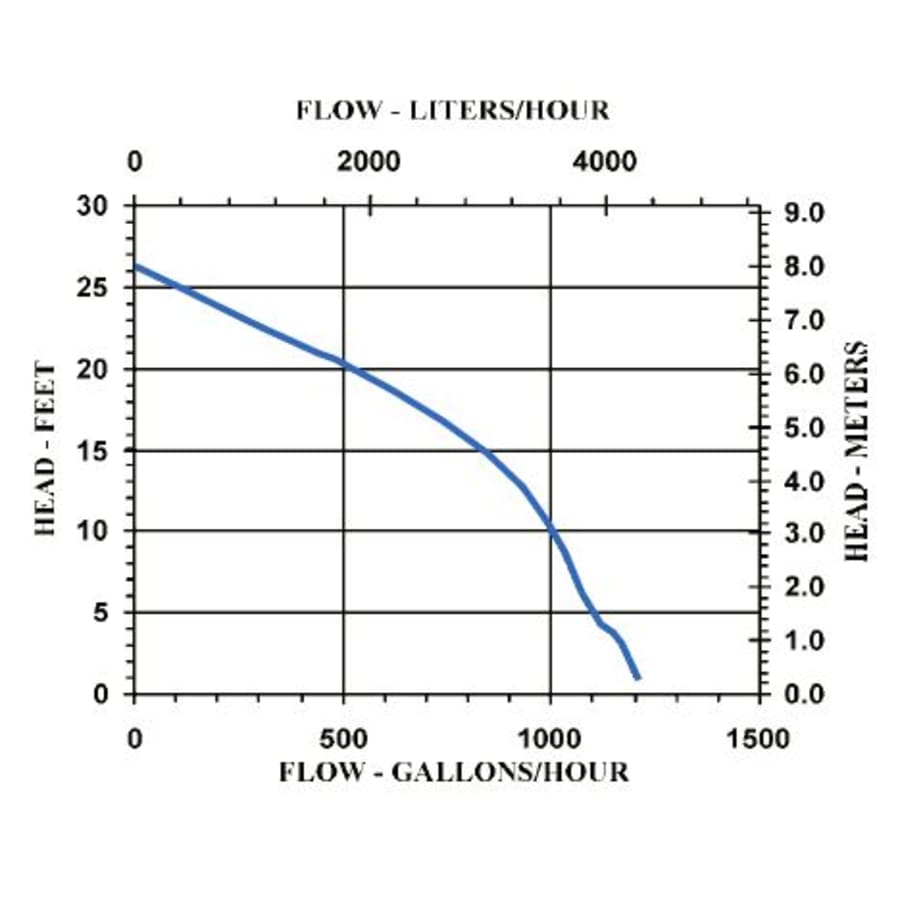

| Flow Rate by Feet of Head | 520 gal / 20 ft, 20 gal / 1 ft, 16.6 gal / 10 ft, 19.5 gal / 3 ft, 18.3 gal / 5 ft |
| Shut Off Height | 26.3 in. |
| Shut Off Pressure | 11.4 |
| Maximum Head Height | 26.3 in. |
| Minimum Head Height | 1 in. |
| Water Pressure (Max) | 11.4 PSI |
Characteristics and Features
| Material | Aluminum |
| Water Connection Type | NPT |
| Switch Type | Manual |
| Configuration | Submersible Pump |
| Submersible | Yes |
| Automatic | No |
| Impeller Material | Nylon |
| Material Casing | Aluminum |
| Material Housing | Aluminum |
| Shutoff Head in Feet | 26.3 |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Certifications | UL |
| CARB approved | Yes |
Electrical and Operational Information
| Voltage | 115 |
| Wattage | 380 |
| Frequency | 60 Hertz |
| Amperage | 5 |
| Horsepower | .167 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 120 °F |
| Color | Steel |
| Color Tone | Steel Tones |
