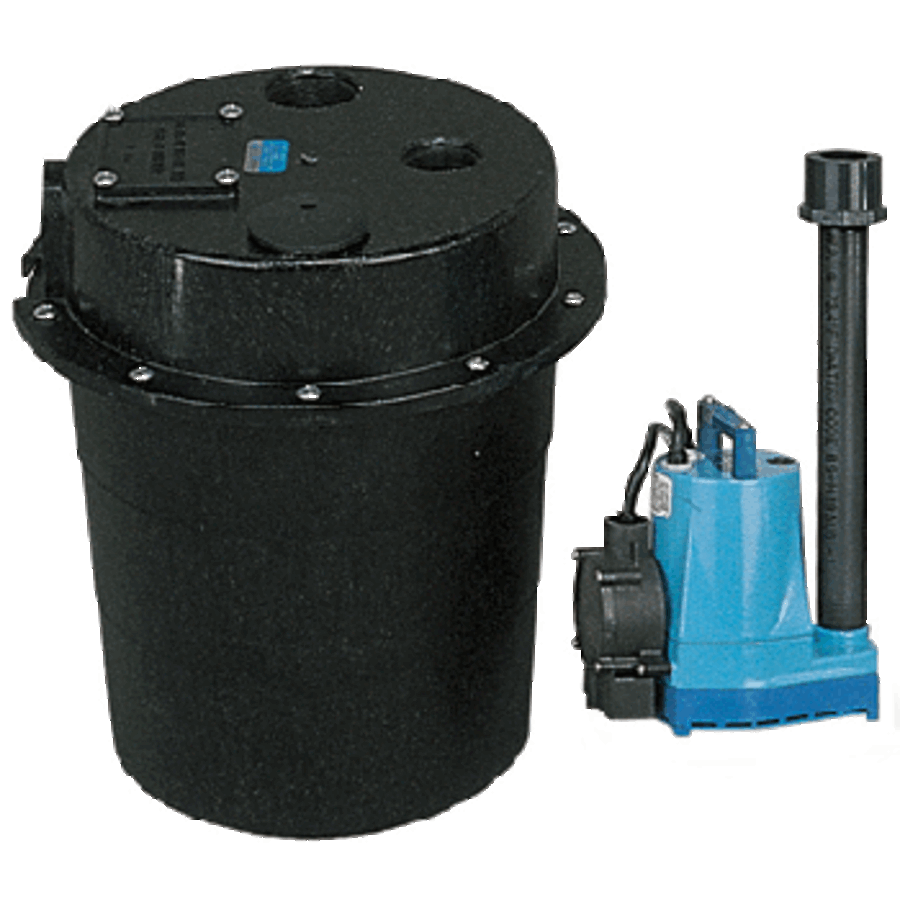

WRS Series consists of conveniently sized tank and pump combos; ideal for impractical gravity drainage areas such as under sinks and laundry trays.
Product Features:
1/6 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Does not handle solid particulates
Cover made from: Cast aluminum
Housing made from: Cast Aluminum
Impeller made from: Nylon
Switch Type: Diaphragm
Single phase operation
10′ Cord included
UL/CSA listed
Product Specifications:
1/6 Horse Power
Voltage: 115V
5 Amp maximum operation
1-1/2″ Discharge diameter
Length: 14-1/2″
Width: 14-1/2″
Height: 15-3/5″

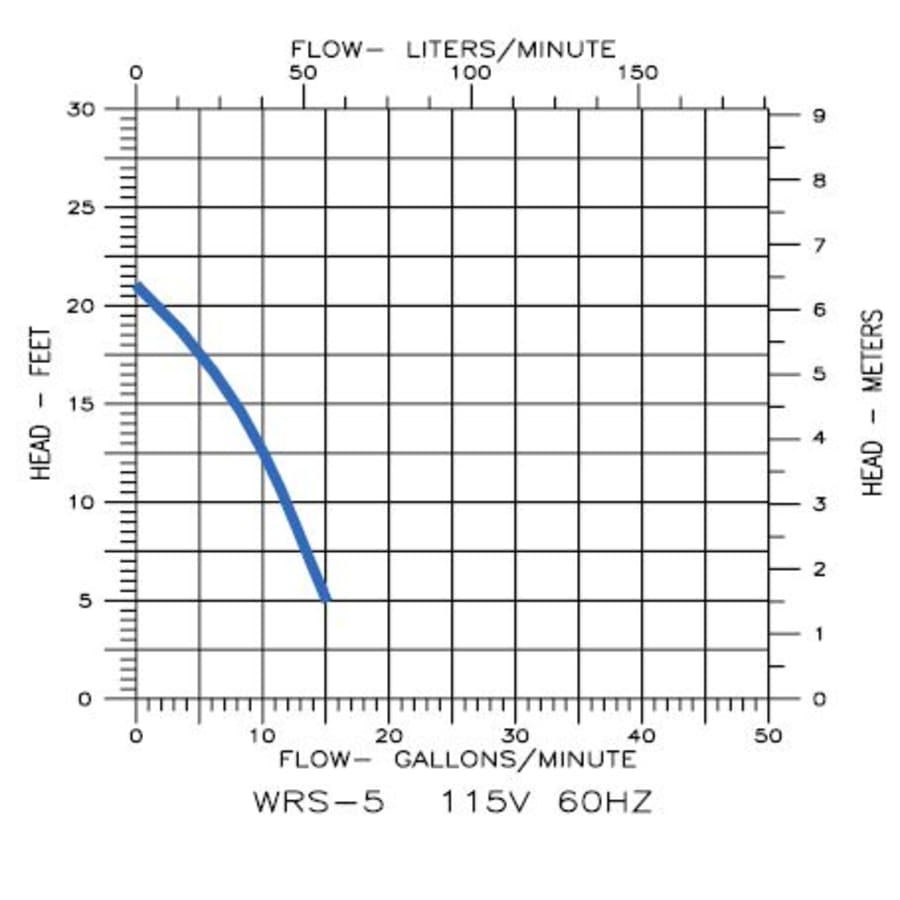

Flow rates (GPH: gallons-per-hour):
At 5 feet of head: 900
At 10 feet of head: 690
At 15 feet of head: 480
Shut Off (maximum head height): 21′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 15.6 in. |
| Product Weight | 19 lbs. |
| Width | 14.5 in. |
| Length | 14.5 in. |
| Water Connection | 1-1/2" |
| Discharge Diameter | 1.5 in. |
| Cord Length | 120 in. |
| Flow Rate by Feet of Head | 480 gal / 15 ft, 11 gal / 10 ft, 15 gal / 5 ft |
| Shut Off Height | 21 in. |
| Maximum Head Height | 21 in. |
| Minimum Head Height | 5 in. |
| Material | Aluminum |
| Water Connection Type | NPT |
| Switch Type | Diaphragm |
| Configuration | Submersible Pump |
| Submersible | Yes |
| Automatic | Yes |
| Impeller Material | Nylon |
| Material Casing | Aluminum |
| Material Housing | Aluminum |
| Shutoff Head in Feet | 21 |
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| Voltage | 115 |
| Wattage | 380 |
| Frequency | 60 Hertz |
| Amperage | 5 |
| Horsepower | .166, .3 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
