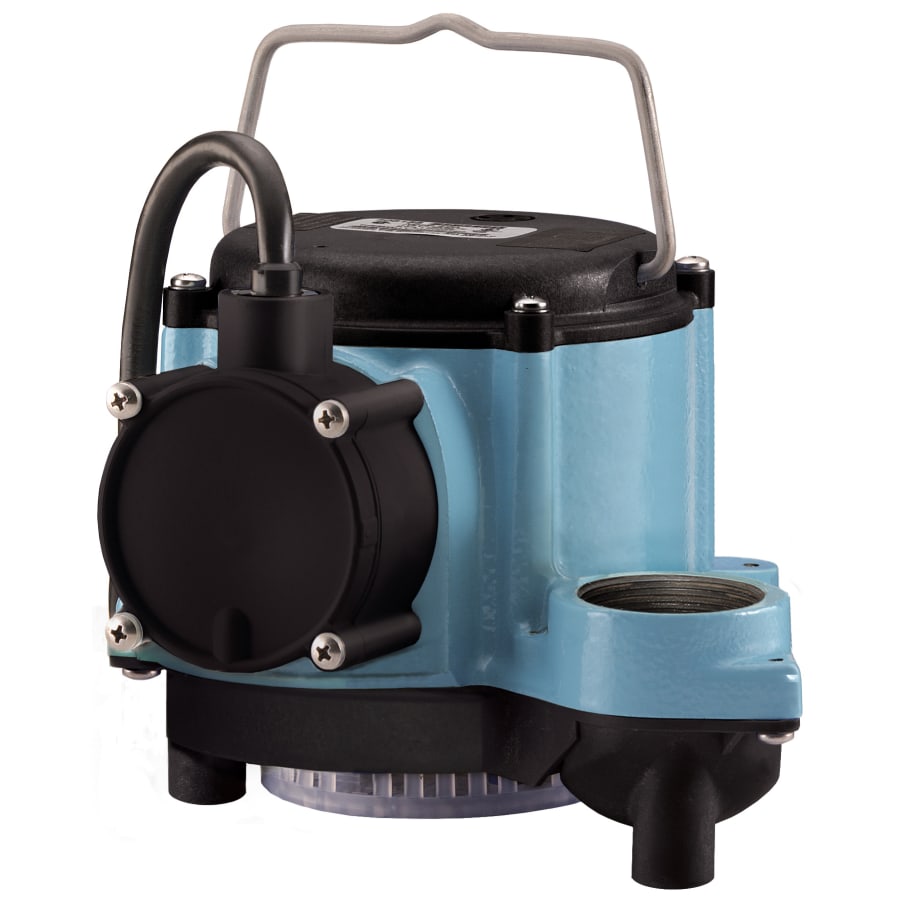

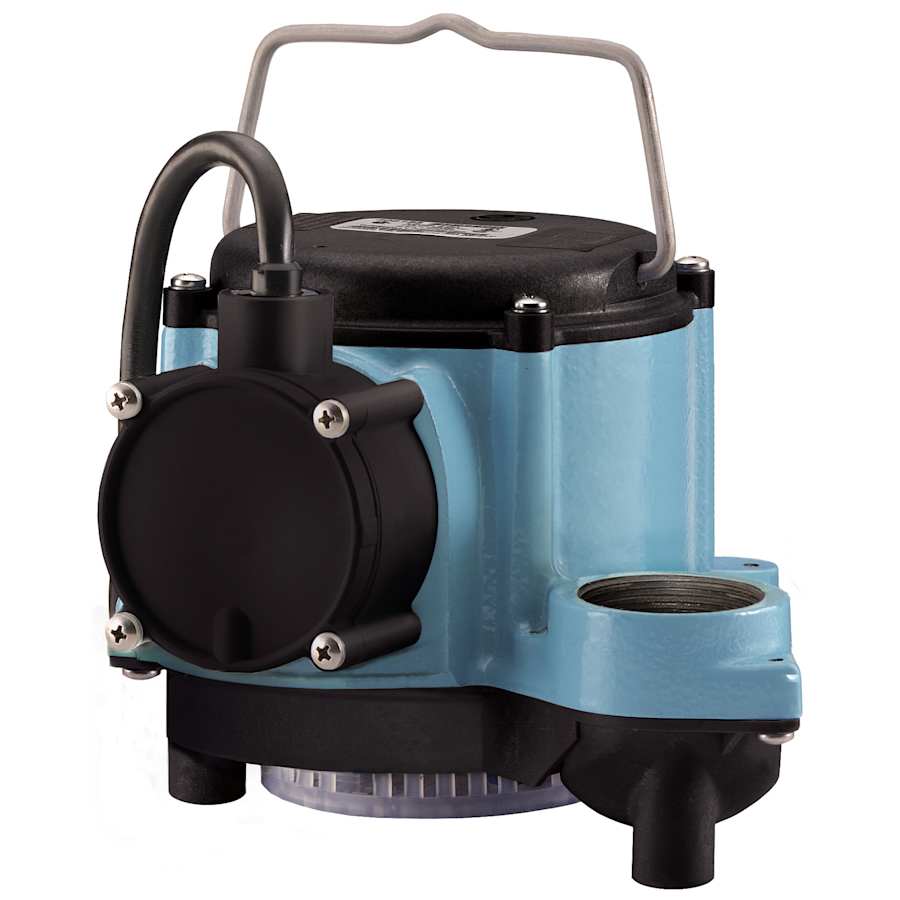

1/3 HP 230V 46 GPM Manual Submersible Sump Pump
For residential and light commercial use, the 6-CIM manual submersible sump pump provides efficient and reliable service. Pumps has a 1-1/2″ discharge with an 18′ maximum head. Cast iron motor housing is oil-filled for lifetime lubrication and excellent heat dissipation. Polycarbonate cover and polypropylene volute-base.
1/3 HP shaded pole motor with overload protection
Designed for continuous duty
Epoxy coated cast iron housing
1-1/4″ (31.7 mm) adapter and 3/4″ (19 mm) garden hose adapter available
Carbon/ceramic shaft seal
Upper and lower sintered sleeve bearings
Multiple switch options for automatic operation
Multiple power cord lengths available
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Width | 8.5 in. |
| Height | 6 in. |
| Length | 9.5 in. |
| Product Weight | 18.7 lbs. |
| Depth | 9.5 in. |
| Water Connection | 1-1/2" |
| Cord Length | 12 in. |
| Water Pressure (Max) | 7.8 PSI |
| Discharge Diameter | 1.5 in. |

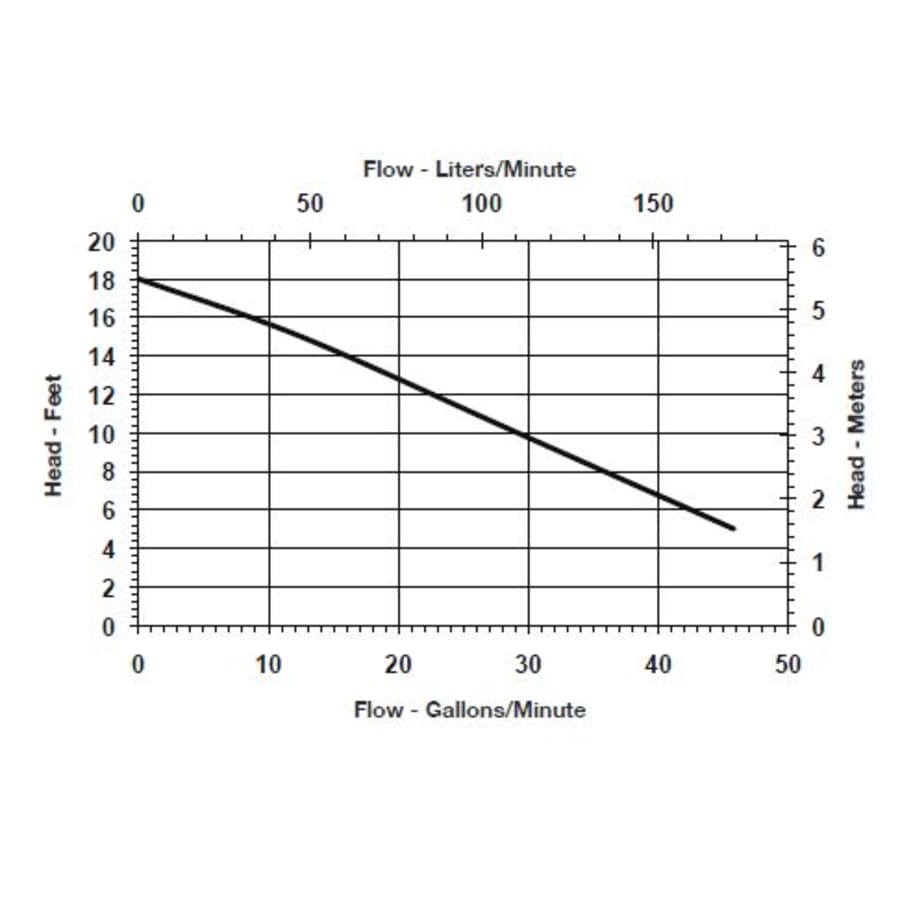

| Flow Rate by Feet of Head | 29 gal / 10 ft, 46 gal / 5 ft, 12.5 gal / 15 ft |
| Maximum Head Height | 18 in. |
| Minimum Head Height | 5 in. |
| Shut Off Height | 18 in. |
| Shut Off Pressure | 7.8 |
| Approved for Commercial Use | Yes |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Switch Type | Manual |
| Configuration | Sump Pump |
| Automatic | Yes |
| Impeller Material | Nylon |
| Material Casing | Iron, Polycarbonate |
| Material Housing | Iron |
| Shutoff Head in Feet | 18 |
| Submersible | Yes |
| Voltage | 230 |
| Wattage | 720 |
| Frequency | 50, 60 Hertz |
| Amperage | 4.5 |
| Electrical Phases | 1 |
| Horsepower | 0.33, 0.34 |
| Maximum Fluid Temperature | 140 °F |
| Color | Steel |
| Color Tone | Steel Tones |
