Product Features:
NON-AUTOMATIC – Requires Float Switch
Features a 2 year manufacturer warranty

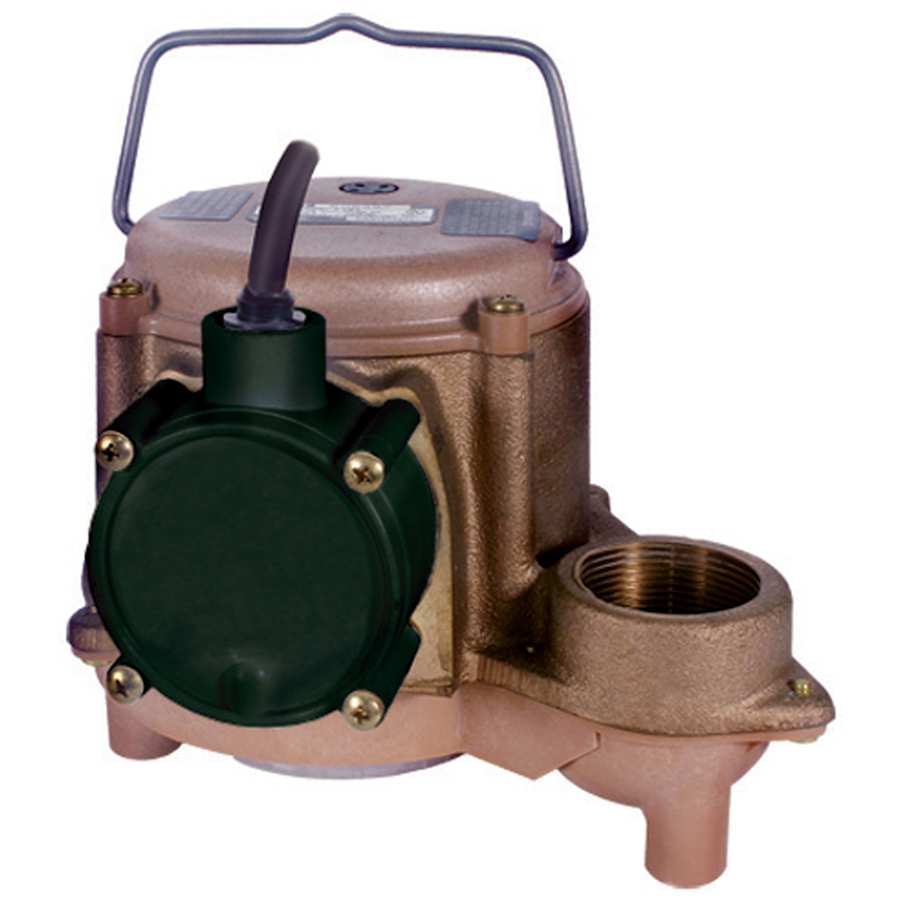

Big John submersible sump pump is continuous duty rated for residential and light commercial use
The polypropylene base with epoxy coated cast bronze pump housing minimizing rust and corrosion to extend overall pump life and is a great option for sump pits with brine water
4/10 HP shaped pole motor with thermal overload protections and oil-filled motor housing provides lower operating temperatures
The vortex style nylon impeller reduces clogging while providing consistent pumping
Stainless steel fasteners protect against corrosion in harsh sump pits
Upper wintered-sleeve bearing minimizes friction while providing smooth and quiet operation
The carbon/ceramic mechanical seal assure maximum protection against pump failure
Product Specifications:

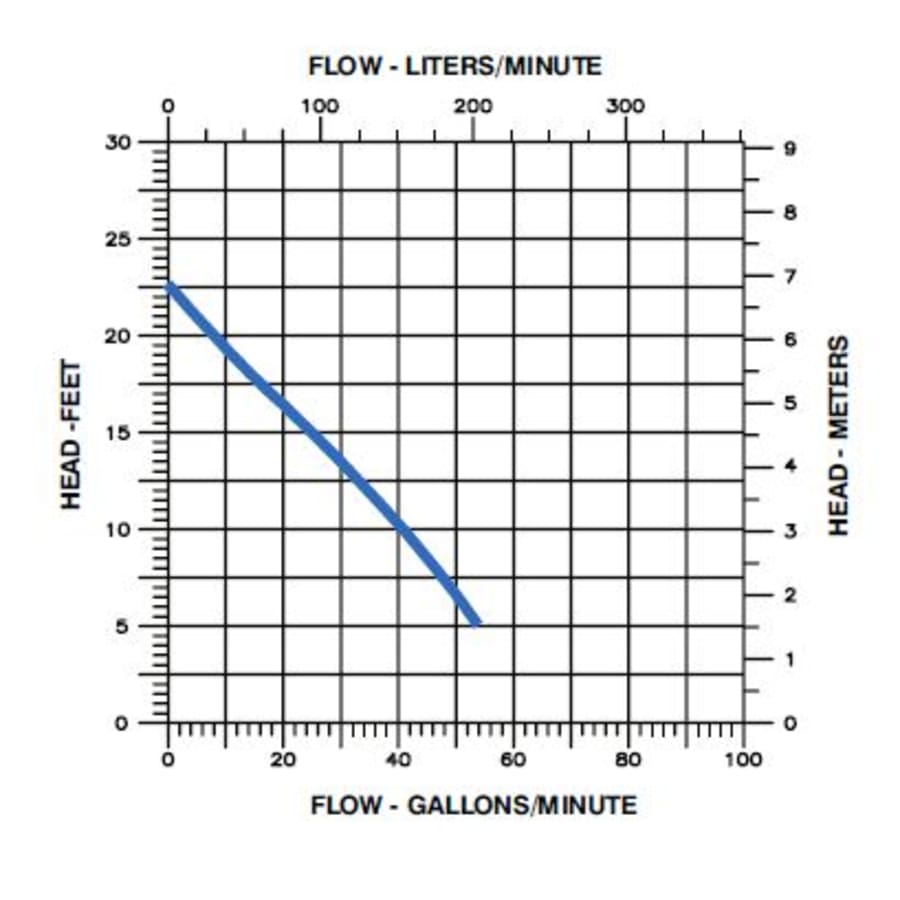

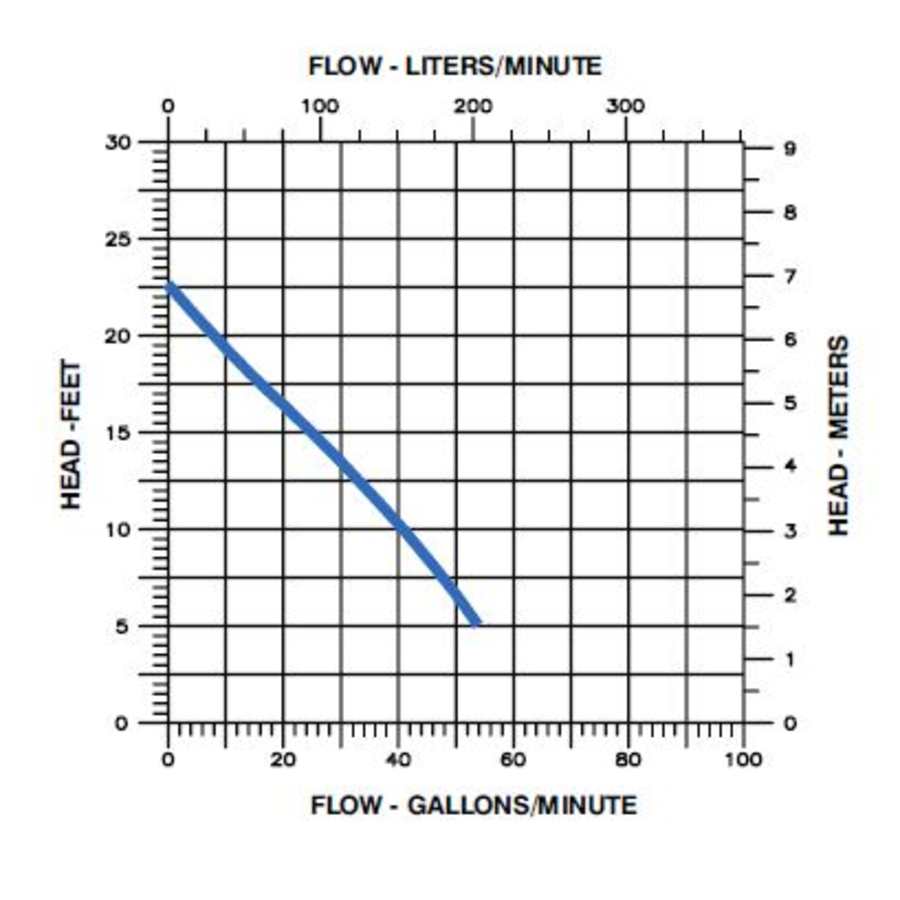

GPH @ 0 feet: 3240
GPH @ 5 feet: 3240
GPH @ 10 feet: 2520
GPH @ 15 feet: 1560
GPH @ 20 feet: 360
Discharge Port Size: 1-1/2″
Dimensions: 9.5″ long by 8.5″ wide by 6″ high
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 6 in. |
| Length | 9.5 in. |
| Product Weight | 21.3 lbs. |
| Water Connection | 1-1/2" |
| Depth | 9.5 in. |
| Width | 8.5 in. |
| Cord Length | 10, 15 in. |
| Discharge Diameter | 1.5 in. |
| Flow Rate by Feet of Head | 26 gal / 15 ft, 42 gal / 10 ft, 54 gal / 5 ft |
| Shut Off Height | 22.9 in. |
| Shut Off Pressure | 9.9 |
| Maximum Head Height | 22.9 in. |
| Minimum Head Height | 5 in. |
| Water Pressure (Max) | 9.9 PSI |
| Material | Bronze |
| Water Connection Type | NPT |
| Configuration | Submersible Pump |
| Switch Type | Manual |
| Shutoff Head in Feet | 22.9 |
| Submersible | Yes |
| Automatic | No |
| Impeller Material | Plastic |
| Material Casing | Bronze |
| Material Housing | Bronze |
| Certifications | UL, CSA |
| Approved for Commercial Use | Yes |
| CARB approved | Yes |
| Voltage | 115 |
| Wattage | 830 |
| Frequency | 60 Hertz |
| Amperage | 10 |
| Horsepower | 0.4 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
| Color | Bronze |
| Color Tone | Bronze Tones |
