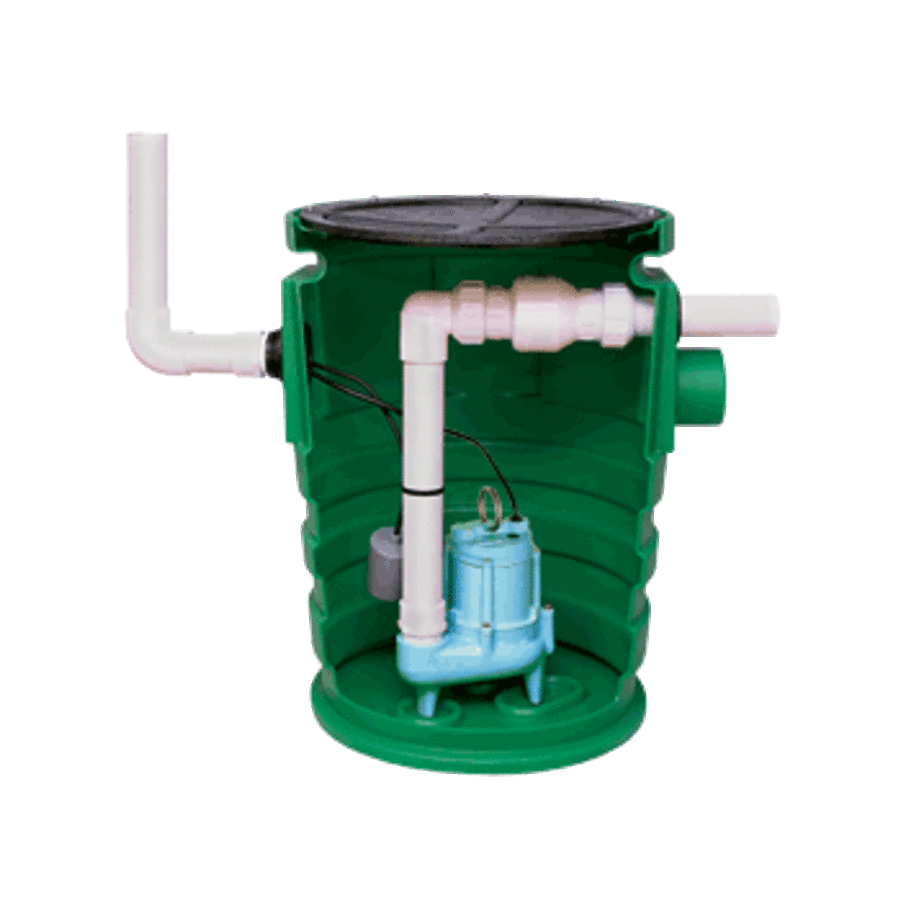

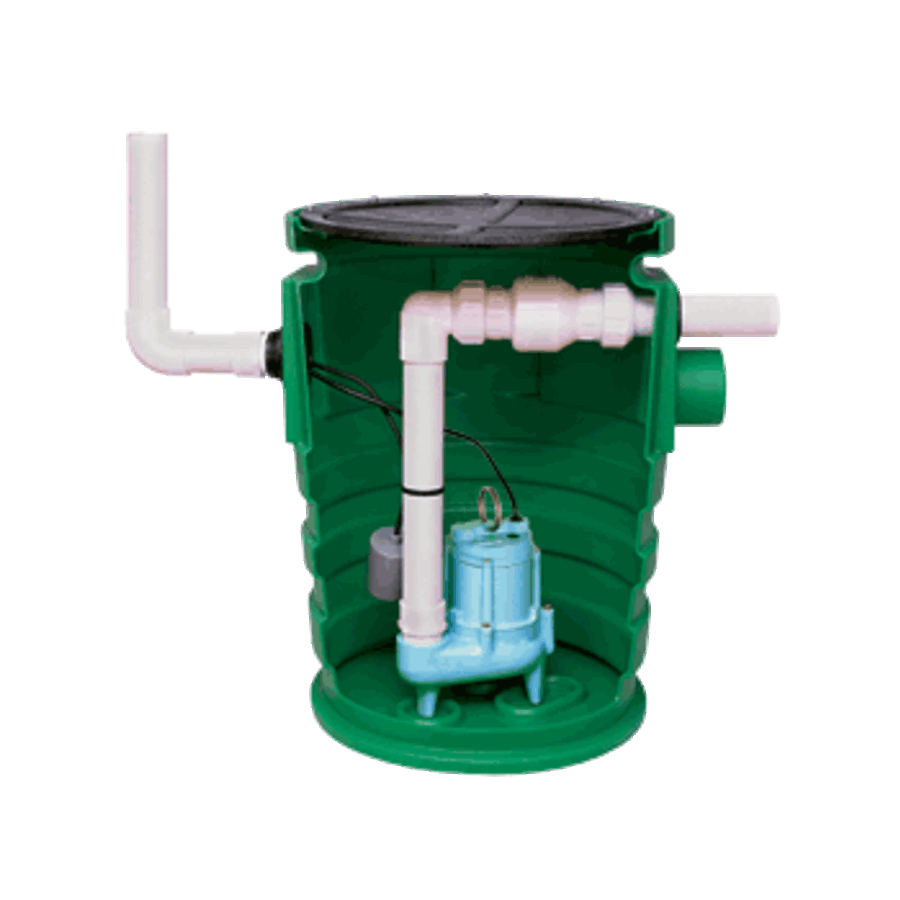

The WCR-9S wastewater system is designed for collection and removal of water run-off from low-lying problem areas. Available pre-packaged with structural foam cover. Discharge and electrical connections are made through the side of basin, allowing top of basin to be flush with ground level. No digging is required for servicing the system.
Product Features:
4/10 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 2″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Vortex
Impeller made from: Nylon
Switch Type: Mechanical float
Single phase operation
15′ Cord included
Product Specifications:
4/10 Horse Power
Voltage: 115V
13 Amp maximum operation
2″ Discharge diameter
Width: 22″
Height: 30″

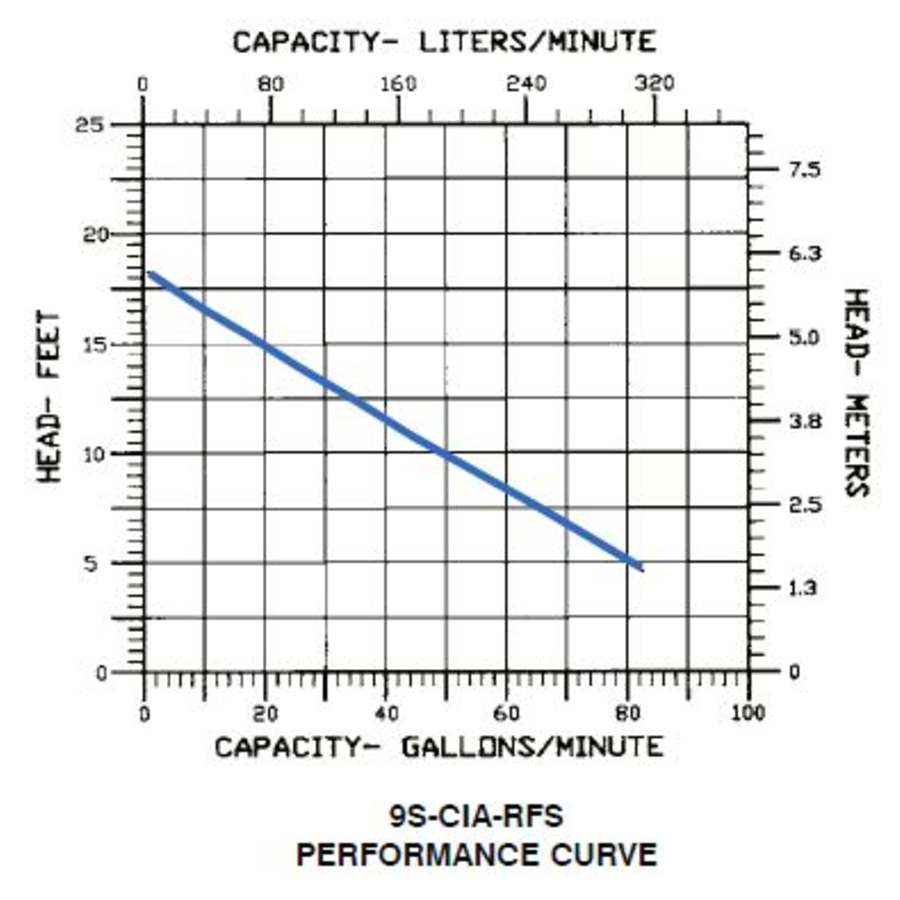

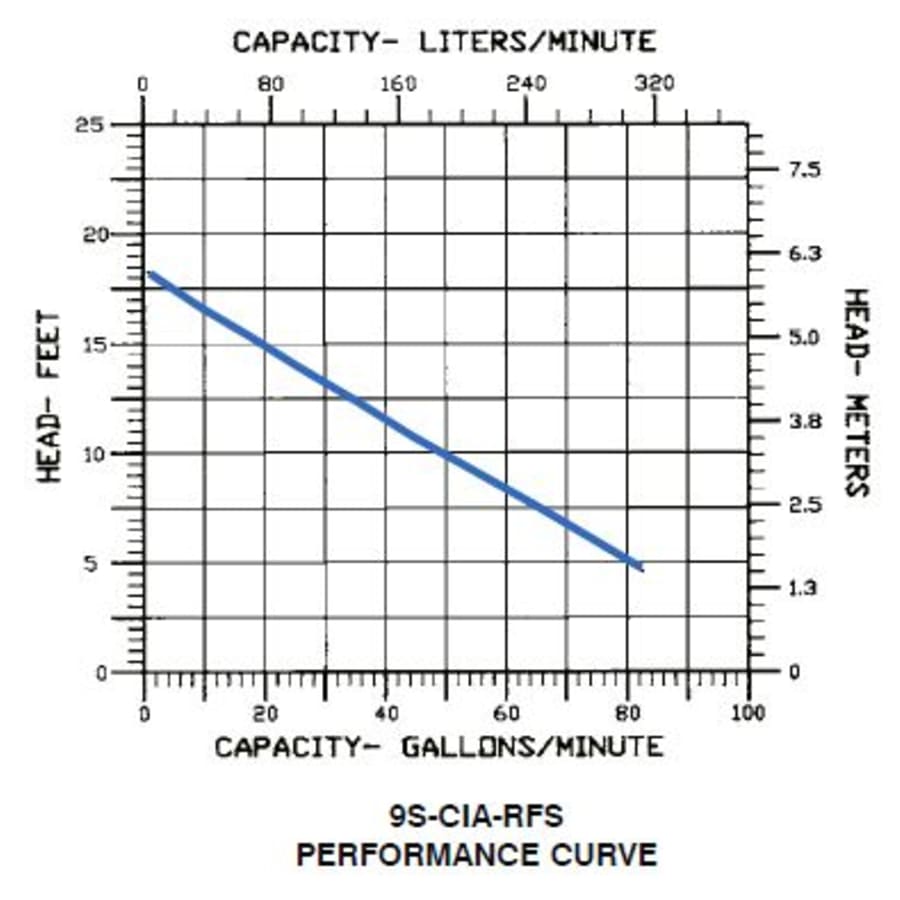

Flow rates (GPH: gallons-per-hour):
At 5 feet of head: 80
At 10 feet of head: 50
At 15 feet of head: 16
Shut Off (maximum head height): 18′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Product Weight | 67 lbs. |
| Height | 30 in. |
| Width | 22 in. |
| Water Connection | 2" |
| Cord Length | 180 in. |
| Discharge Diameter | 2 in. |
| Flow Rate by Feet of Head | 16 gal / 15 ft, 50 gal / 10 ft, 80 gal / 5 ft |
| Shut Off Height | 18 in. |
| Maximum Head Height | 18 in. |
| Minimum Head Height | 5 in. |
| Maximum Diameter Solids | 2 in. |
| Material | Cast Iron |
| Switch Type | Float |
| Automatic | Yes |
| Shutoff Head in Feet | 18 |
| Submersible | Yes |
| Impeller Material | Nylon |
| Material Casing | Iron, Plastic |
| Material Housing | Iron |
| Approved for Commercial Use | Yes |
| Frequency | 60 Hertz |
| Voltage | 115 |
| Wattage | 1020 |
| Amperage | 13 |
| Horsepower | .4 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
