The 18S Series submersible pumps from Little Giant are specifically engineered to handle the tough demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability. Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands.
Product Features:
1 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 2″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Non-clog
Impeller made from: Brass
Switch Type: Manual
Single phase operation
20′ Cord included
UL/CSA listed
Product Specifications:
1 Horse Power
Voltage: 230V
15.5 Amp maximum operation
3″ Discharge diameter
Length: 12-9/10″
Width: 8-2/5″
Height: 19-1/10″

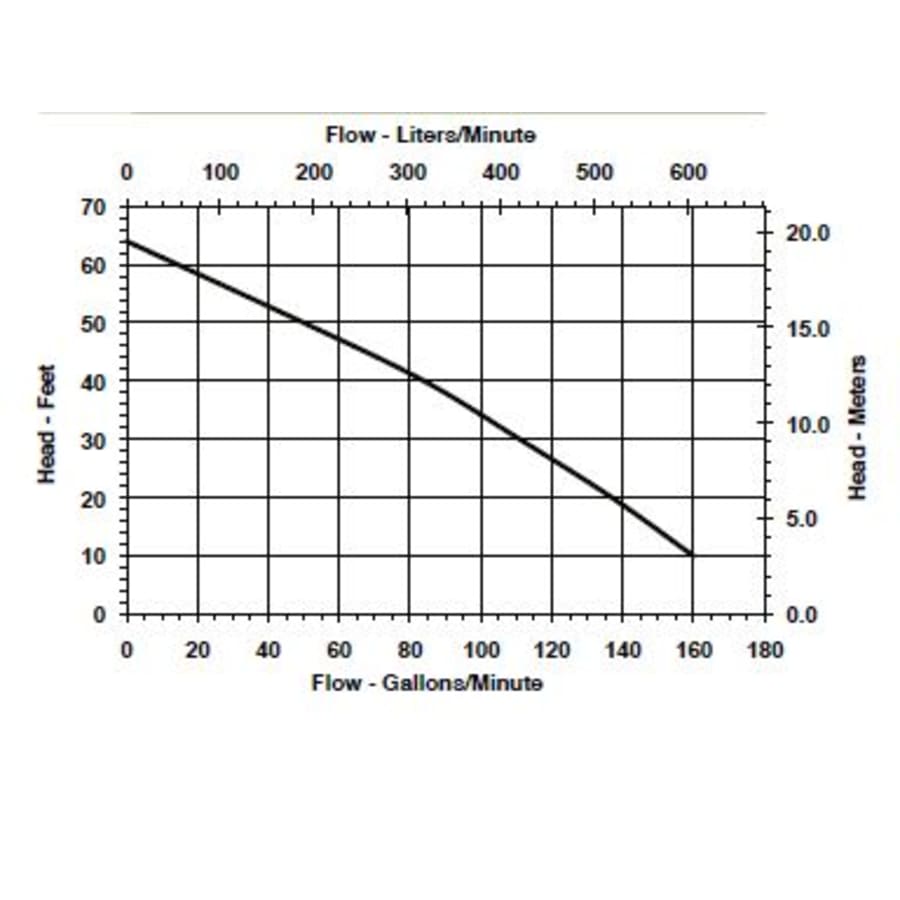

Flow rates (GPH: gallons-per-hour):
At 10 feet of head: 160
At 20 feet of head: 137
At 30 feet of head: 111
At 40 feet of head: 84
At 50 feet of head: 50
Shut Off (maximum head height): 64′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant 18S Collection
Specifications
| Approved for Commercial Use | Yes |
| Certifications | CSA |
| Height | 19.07 in. |
| Width | 8.42 in. |
| Depth | 13 in. |
| Product Weight | 96 lbs. |
| Length | 12.93 in. |
| Water Connection | 3" |
| Cord Length | 240 in. |
| Discharge Diameter | 3 in. |
| Flow Rate by Feet of Head | 84 gal / 40 ft, 160 gal / 10 ft, 15 gal / 60 ft, 50 gal / 50 ft, 127 gal / 20 ft, 111 gal / 30 ft |
| Shut Off Height | 64 in. |
| Shut Off Pressure | 27.7 |
| Maximum Head Height | 64 in. |
| Minimum Head Height | 10 in. |
| Water Pressure (Max) | 27.7 PSI |
| Maximum Diameter Solids | 2 in. |
| Material | Cast Iron |
| Configuration | Submersible Pump |
| Water Connection Type | NPT |
| Switch Type | Manual |
| Automatic | No |
| Shutoff Head in Feet | 64 |
| Submersible | Yes |
| Impeller Material | Brass |
| Material Casing | Iron |
| Material Housing | Iron |
| Voltage | 230 |
| Amperage | 15.5 |
| Frequency | 60 Hertz |
| Horsepower | 1.5 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
