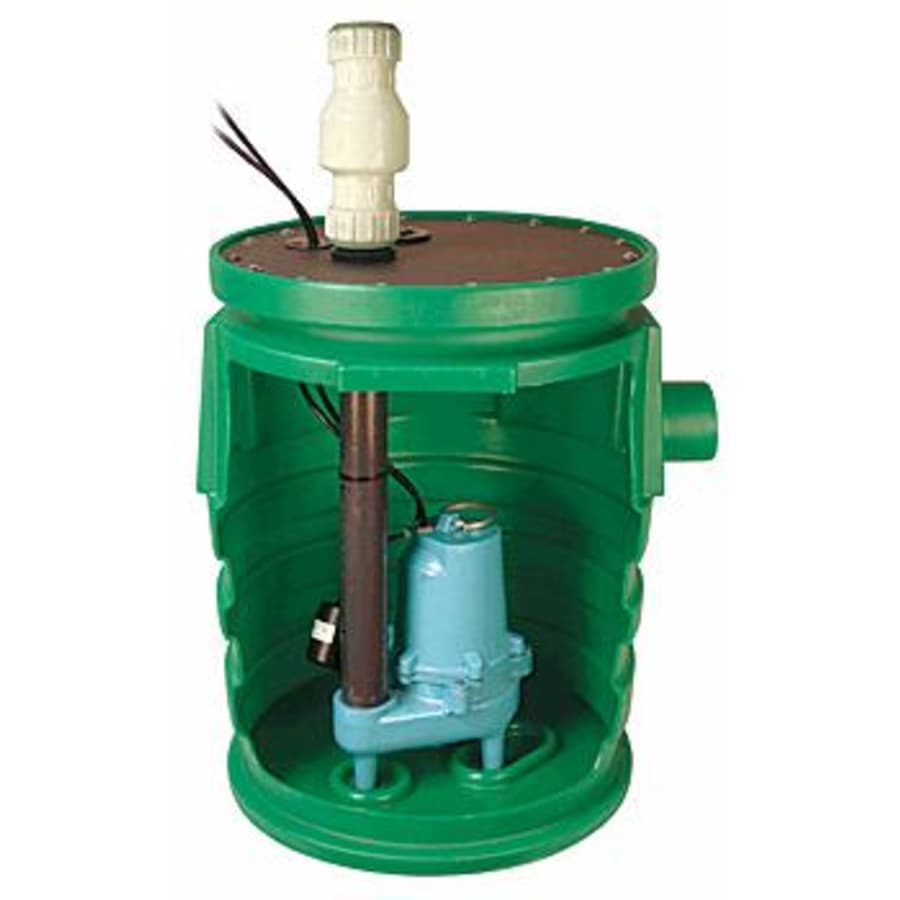

Preassembled 20″ x 30″ Pit Plus System with 1 Piece IAMPO Steel Cover, Slip-Fit Flanges, 1/2 HP ES50 Sewage Pump and Float Switch
For collection of sewage, effluent, drainage and seepage water. Suitable for homes, farms, light commercial and industrial use. Pre-Assembled system provided completely assembled and ready to install. The motor housing contains oil to cool the motor and to lubricate bearings and seals. These pumps are capable of operating with the motor housing partially exposed for extended periods, providing sufficient motor cooling.
Ships Pre-Assembled
Handles liquid and semi-solid waste materials up to 2″ spherical diameter
Larger capacity extends pump life by reducing pump cycles
20″×30″ polyethylene basin with ribs for added strength
4″ molded external inlet hub to accept flexible coupling
Molded torque stops in bottom of basin to locate pump
Anti-flotation collar
Stainless steel cover bolts
360º molded handle for ease of transportation and installation
Schedule 80 PVC discharge nipple with pre-drilled air-bleed hole
Full flow 2″check valve
IAMPO steel one-piece cover with slip-fit vent and discharge flanges.
120 GPM @ 5′ of Head
2″ NPT vertical discharge
2″ intake opening
1/2 Horsepower
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Height | 30 in. |
| Width | 20 in. |
| Cord Length | 240 in. |
| Discharge Diameter | 2 in. |
| Flow Rate by Feet of Head | 85 gal / 10 ft, 120 gal / 5 ft, 49 gal / 15 ft, 12 gal / 20 ft |
| Maximum Diameter Solids | 2 in. |
| Shut Off Height | 22 in. |
| Shut Off Pressure | 9.5 |
| Material | Cast Iron, Plastic |
| Configuration | Basin/Cover Assembly |
| Switch Type | Float |
| Submersible | Yes |
| Voltage | 115 |
| Wattage | 1180 |
| Amperage | 11.4 |
| Frequency | 60 Hertz |
| Horsepower | .5 |
