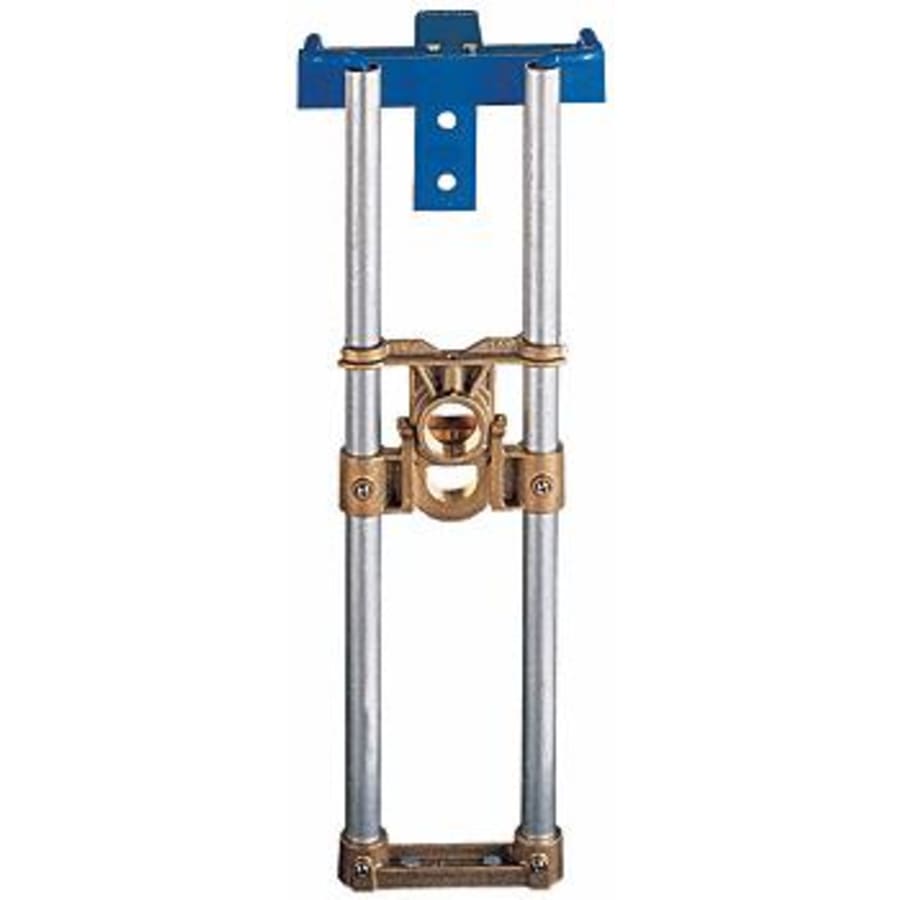

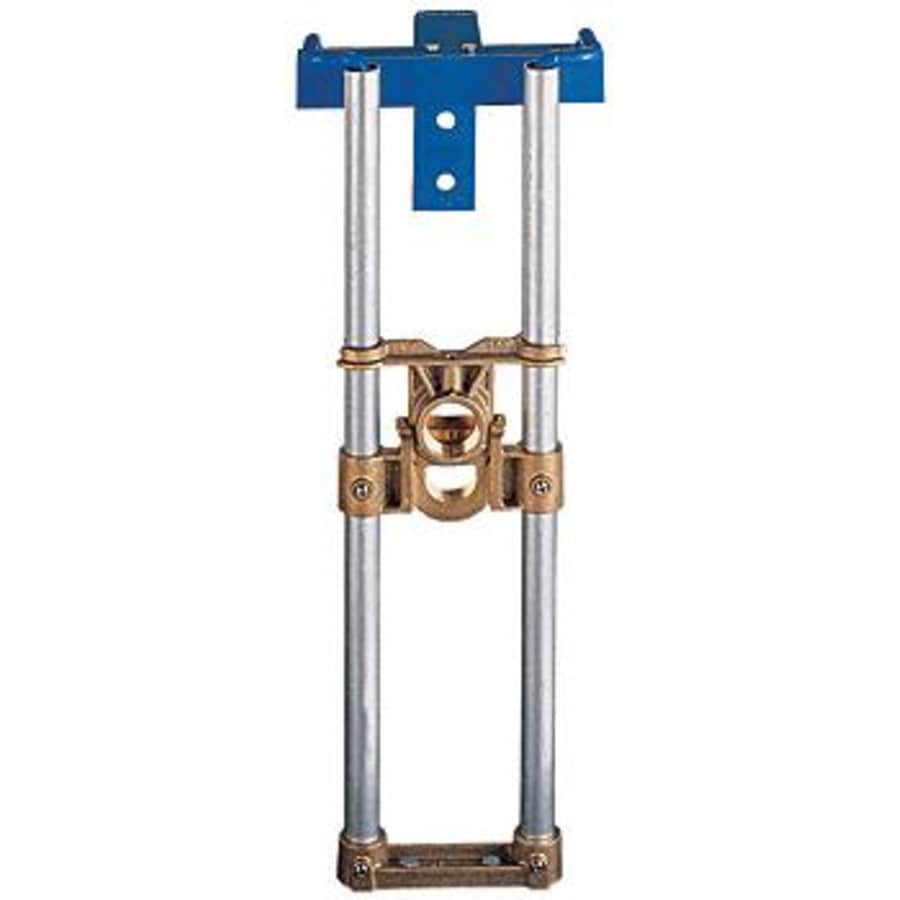

Little Giant 3/4″ Guide Rail System with 2″ NPT

3/4″ Guide Rail System with 2″ NPT

Complete systems used for installations with a total depth of over 5′ when the discharge pipe is 18″ or more below grade, particularly when the liquid level is above the discharge level. 3/4″ IPS (Iron Pipe Size) pipe rails should be used on the 2″ system and 1 1/4 IPS pipe rail on the 3″ system. Brass foot guide supplied for use with steel pipe. Guide rail brackets and steel stand-off brackets included with each system to support the upper end of the guide rail pipes. One intermediate guide rail bracket is required for every 10′ of rail. (Guide rail pipes, lifting chain and pull rod not included.) All guide rail products can be used with any of the Little Giant Pump Company effluent and sewage pumps having 2″ or 3″ discharge.

3/4″ IPS pipe rails should be used on the 1-1/4″ and 2″ system and 1-1/4″ IPS pipe rail on the 3″ system
Brass foot guide supplied for use with steel pipe
Guide rail brackets and steel stand-off brackets included with each system to support the upper end of the guide rail pipes
One intermediate guide rail bracket is required for every 10′ of rail
