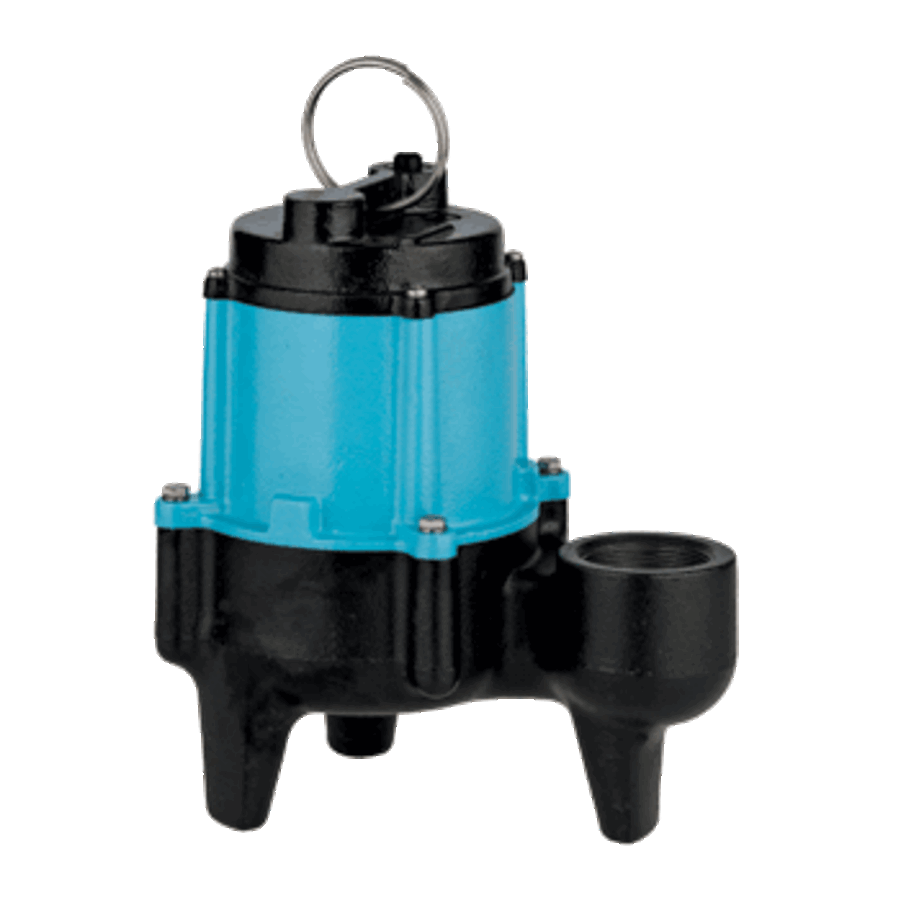

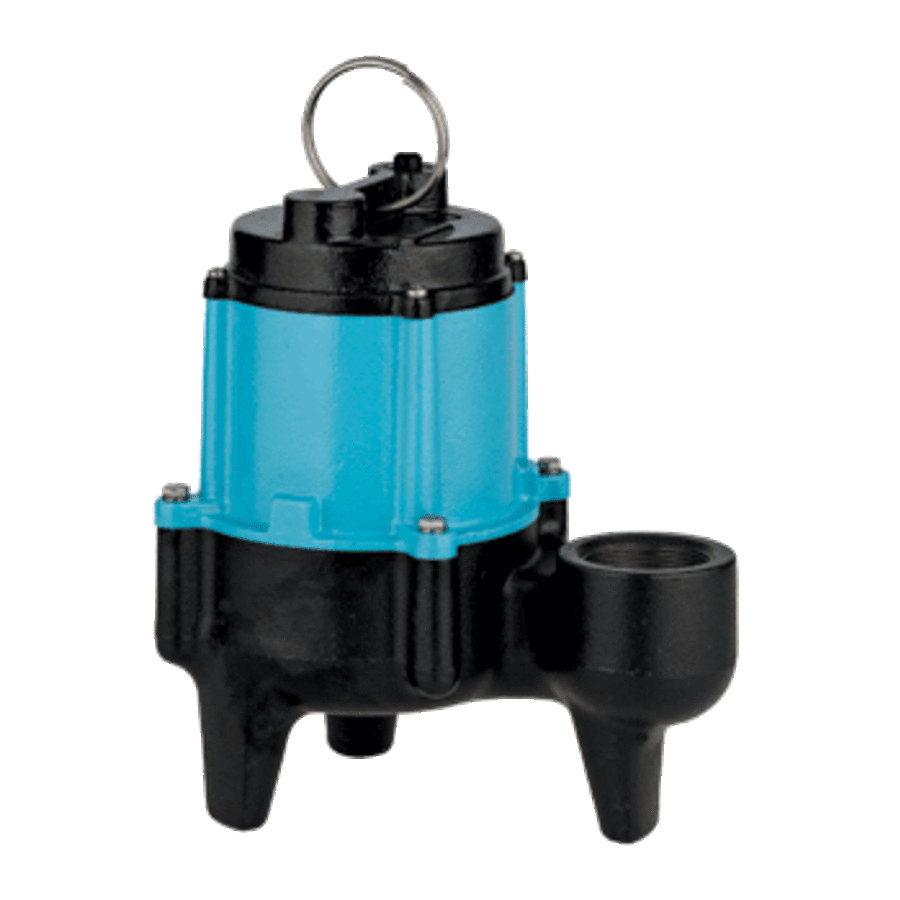

The 10SN Series submersible pumps from Little Giant are specifically engineered to handle the tough demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability. Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands.
Product Features:
1/2 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 2″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Non-clog
Impeller made from: Thermoplastic
Switch Type: Manual
Single phase operation
20′ Cord included
cCSAus listed
Product Specifications:
1/2 Horse Power
Voltage: 115V
9.5 Amp maximum operation
3″ Discharge diameter
Length: 11-13/20″
Width: 6-4/5″
Height: 11-2/5″

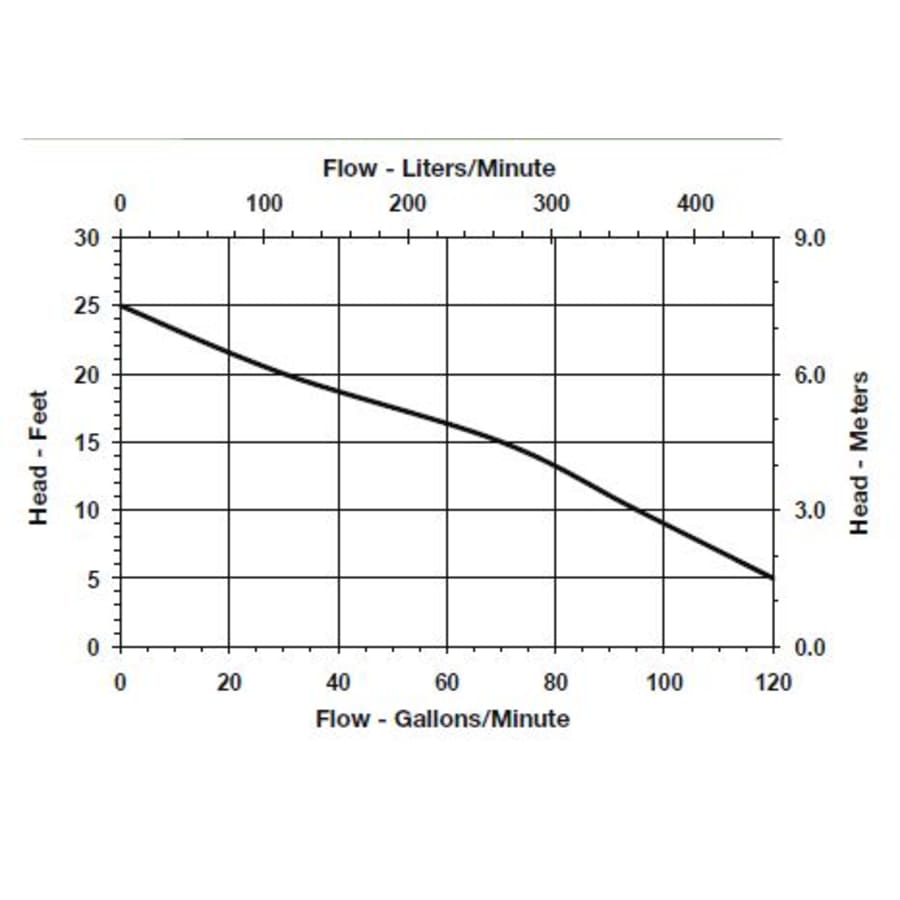

Flow rates (GPH: gallons-per-hour):
At 5 feet of head: 120
At 10 feet of head: 95
At 15 feet of head: 70
At 20 feet of head: 30
Shut Off (maximum head height): 25′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant 10SN Collection
Specifications
| Approved for Commercial Use | Yes |
| Height | 11.4 in. |
| Width | 6.8 in. |
| Product Weight | 36.5 lbs. |
| Length | 11.64 in. |
| Water Connection | 3" |
| Cord Length | 240 in. |
| Discharge Diameter | 2 in. |
| Flow Rate by Feet of Head | 70 gal / 15 ft, 30 gal / 20 ft, 95 gal / 10 ft, 120 gal / 5 ft |
| Shut Off Height | 25 in. |
| Maximum Head Height | 25 in. |
| Minimum Head Height | 5 in. |
| Water Pressure (Max) | 10.9 PSI |
| Maximum Diameter Solids | 2 in. |
| Material | Cast Iron |
| Configuration | Submersible Pump |
| Water Connection Type | NPT |
| Switch Type | Manual |
| Automatic | No |
| Shutoff Head in Feet | 25 |
| Submersible | Yes |
| Impeller Material | Thermoplastic |
| Material Casing | Iron, Plastic |
| Material Housing | Iron |
| Voltage | 115 |
| Wattage | 1000 |
| Amperage | 9.5 |
| Frequency | 60 Hertz |
| Horsepower | .5 |
| Electrical Phases | 1 |
| Maximum Fluid Temperature | 140 °F |
