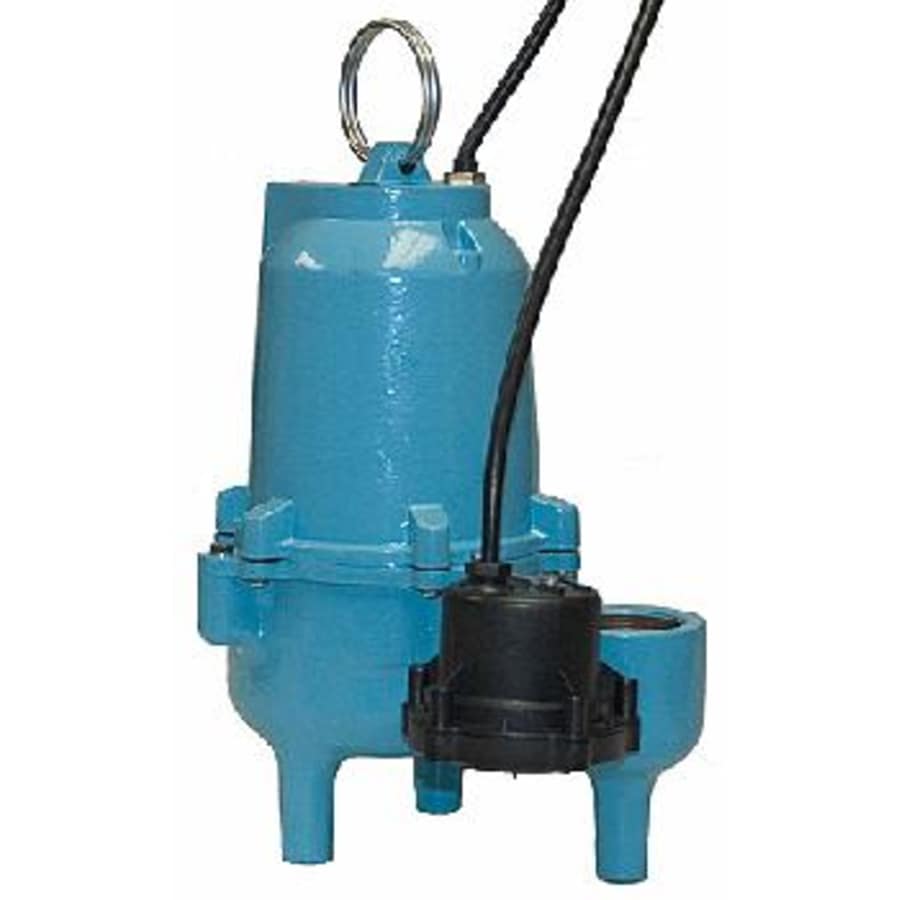

1/2 HP 120 GPM Energy Saver Submersible Sewage Pump with Piggyback Diaphragm Switch
The ES50 model pumps from Little Giant are energy-saving, high performance, fully submersible sewage/effluent/high-capacity sump pumps, designed for the professional plumbing contractor. The ES Series Pumps draw less energy while delivering greater pump flow and overall performance.
1/2 HP permanent spilt capacitor motor with energy-saving low amp draw
Designed for continuous duty
Epoxy coated cast iron housing
2″ FNPT (51 mm) discharge
Carbon/ceramic shaft seal
Upper and lower ball bearings
Vortex engineered composite impeller
Thermal overload protection
Piggyback Diaphragm Switch
Float On Level: 15.5″ – 14.5″
Float Off Level: 5.5″ – 4.5″
cCSAus listed
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Depth | 12 in. |
| Width | 9.8 in. |
| Height | 14.75 in. |
| Product Weight | 53 lbs. |
| Discharge Diameter | 2 in. |
| Cord Length | 240 in. |
| Flow Rate by Feet of Head | 85 gal / 10 ft, 120 gal / 5 ft, 48 gal / 15 ft |
| Shut Off Height | 22 in. |
| Shut Off Pressure | 9.5 |
| Maximum Diameter Solids | 2 in. |
| Material | Rubber, Steel |
| Configuration | Submersible Pump |
| Shutoff Head in Feet | 22 |
| Submersible | Yes |
| Automatic | Yes |
| Certifications | CSA |
| Voltage | 115 |
| Frequency | 60 Hertz |
| Amperage | 11.4 |
| Horsepower | .5 |
| Color | Steel |
| Color Tone | Steel Tones |
