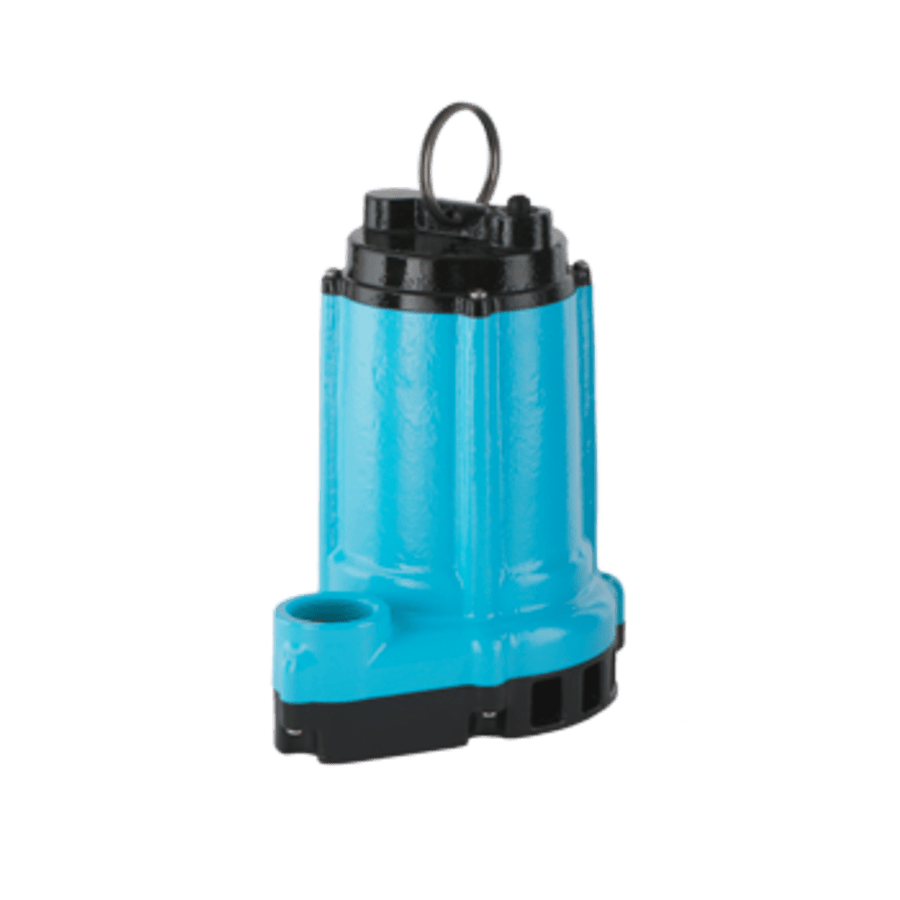

The Little Giant 10EN Series pumps feature 1/2 HP permanent split capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler running for durability. In addition to a stainless intake plate, the 10EN also features a cast iron cover on the manual and RF (remote float switch) versions.
Product Features:
1/2 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 3/4″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Non-clog
Impeller made from: Thermoplastic
Switch Type: Manual
Single phase operation
30′ Cord included
Product Specifications:
1/2 Horse Power
Voltage: 115V
9.5 Amp maximum operation
1-1/2″ Discharge diameter
Length: 9-1/2″
Width: 6-3/4″
Height: 11″
Flow rates (GPH: gallons-per-hour):
At 5 feet of head: 60
At 10 feet of head: 50
At 20 feet of head: 40
At 30 feet of head: 30
At 40 feet of head: 15
Shut Off (maximum head height): 60′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant 10ENH Collection
Specifications
| Approved for Commercial Use | Yes |
| Height | 11.03 in. |
| Width | 6.74 in. |
| Length | 9.53 in. |
| Water Connection | 1-1/2" |
| Flow Rate (GPM) | 60 |
| Cord Length | 360 in. |
| Discharge Diameter | 1.5 in. |
| Maximum Diameter Solids | .75, 0.75 in. |
| Maximum Head Height | 60 in. |
| Minimum Head Height | 5 in. |
| Water Pressure (Max) | 26 PSI |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Switch Type | Manual |
| Automatic | No |
| Impeller Material | Thermoplastic |
| Material Casing | Iron |
| Material Housing | Iron |
| Shutoff Head in Feet | 60 |
| Material Shaft | Nitrile |
| Voltage | 115 |
| Wattage | 1045 |
| Amperage | 9.5 |
| Electrical Phases | 1 |
| Horsepower | .5 |
| Maximum Fluid Temperature | 140 °F |
