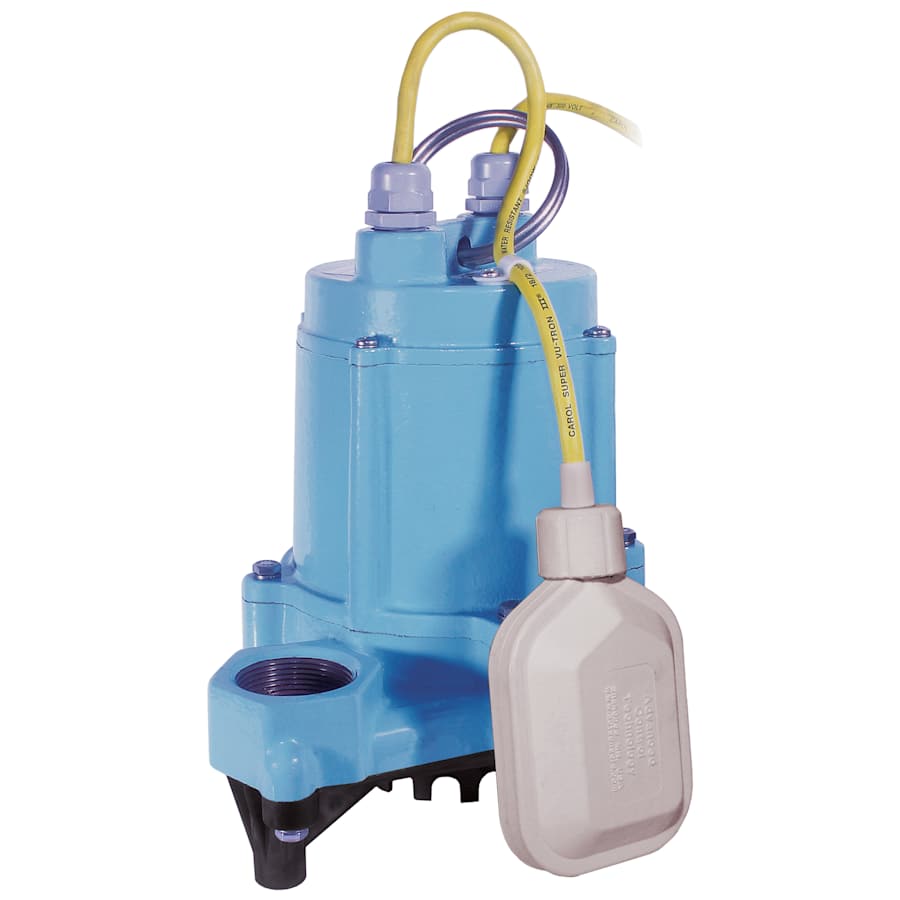

50 GPM Automatic Submersible High Temperature Effluent Pump
This high temperature version of the 6E Sump/Effluent Pump is capable of pumping heated liquid up to 200°F liquid. Uses include boiler blow-down sump pits, rendering plant wash-down sump pits, public utility underground transformer vaults, industrial steam cleaning sump pits, etc. These pumps handle liquids and solid waste materials up to 1/2″ in diameter. Pumps feature a 1-1/2″ discharge, with a lift of 20′. Cast iron housing and volute with protective epoxy coating, high-temperature thermoplastic base and vortex nylon impeller.
Handles liquids up to 200° F
1/2″ solids handling capability
Cast iron pump housing with protective epoxy coating for corrosion resistance
Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
Integral mechanical float switch
Stainless steel screws, bolts and lifting ring to protect against corrosion
Mechanical seals (stainless steel spring, Carbon and Ni-Resist faces) to assure maximum protection against pump failure
Bearings: Upper and lower sintered sleeve bearings for extended motor life
Thermal overload protection
Automatic operation has 10″ to 12″ “On” level range
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Width | 8.5 in. |
| Height | 10.9 in. |
| Length | 8.8 in. |
| Product Weight | 32 lbs. |
| Depth | 8.7 in. |
| Water Connection | 1-1/2" |
| Cord Length | 15 in. |
| Water Pressure (Max) | 8.7 PSI |
| Discharge Diameter | 1.5 in. |

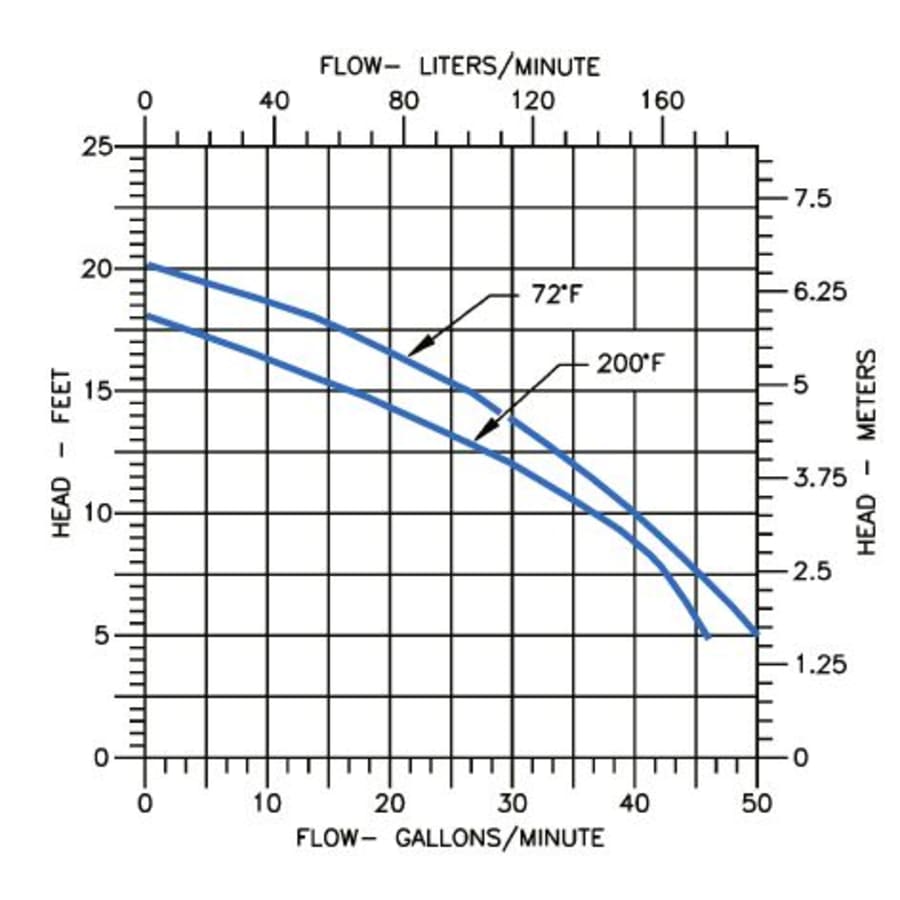

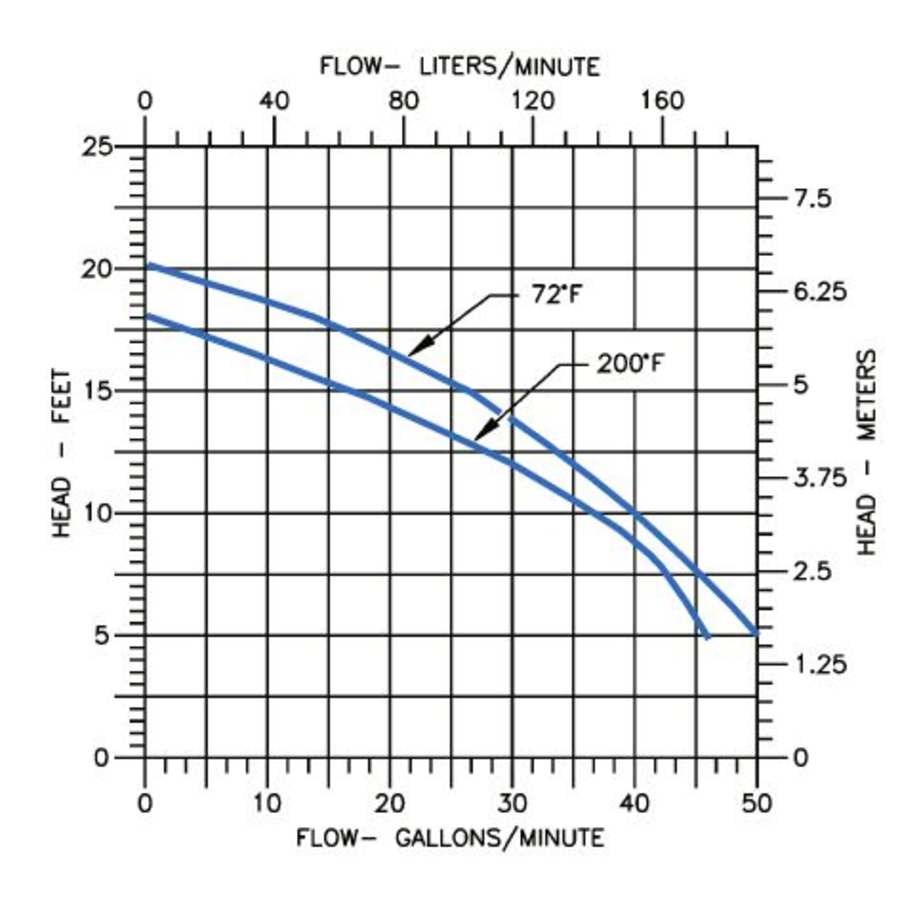

| Flow Rate by Feet of Head | 42 gal / 10 ft, 50 gal / 5 ft, 27 gal / 15 ft |
| Maximum Head Height | 20 in. |
| Minimum Head Height | 5 in. |
| Shut Off Height | 20 in. |
| Shut Off Pressure | 8.7 |
| Maximum Diameter Solids | 0.5 in. |
| Approved for Commercial Use | Yes |
| Certifications | CSA |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Switch Type | Mechanical Float |
| Configuration | Sump / Effluent Pump |
| Automatic | Yes |
| Impeller Material | Nylon |
| Material Casing | Iron |
| Material Housing | Iron |
| Shutoff Head in Feet | 20 |
| Submersible | Yes |
| Voltage | 115 |
| Wattage | 735 |
| Frequency | 60 Hertz |
| Amperage | 10.1 |
| Electrical Phases | 1 |
| Horsepower | 0.33, 0.34 |
| Maximum Fluid Temperature | 200 °F |
| Color | Steel |
| Color Tone | Steel Tones |
