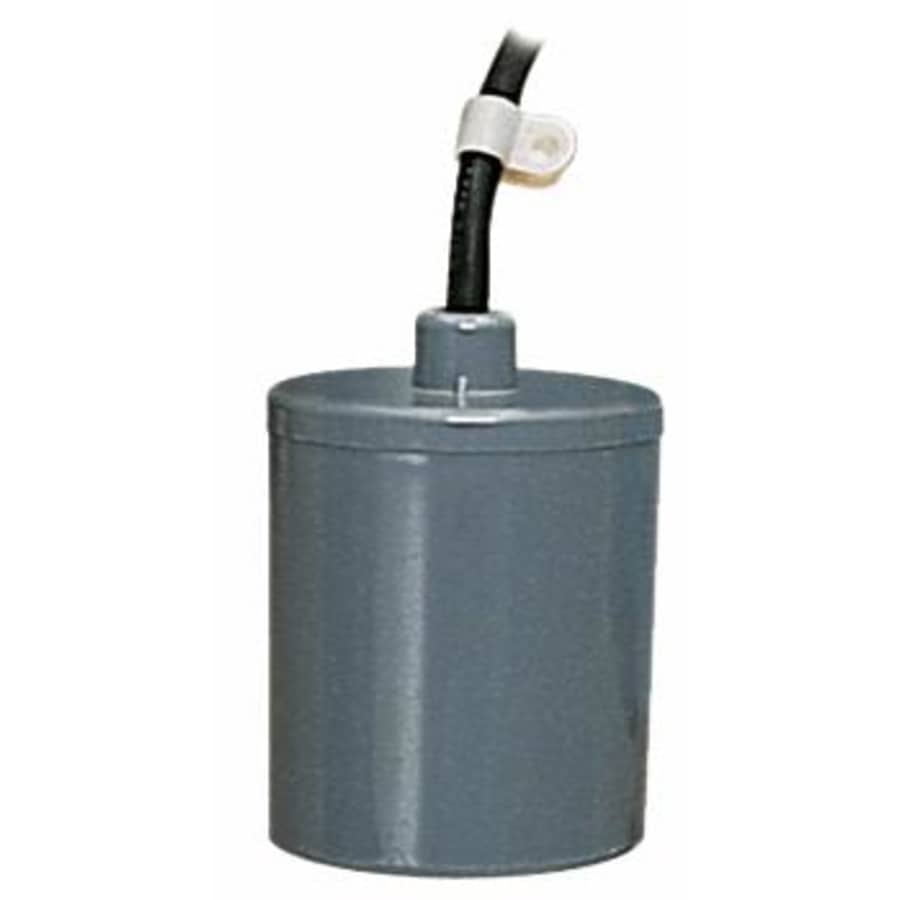

Remote Float Switch 1-1/2 to 3 HP with 30′ Cord
The float switch is a direct-acting, in-line control system for automatically controlling smaller lift pumps and sump pumps in water and sewage systems. The float switch consists of one float, one large mounting strap, and two small adjustable mounting clamps.
This pump switch is not designed to be directly wired to relays or motor contactors (the relay or motor contactor may experience chattering). A double float pump switch will operate more efficiently in these installations.
Heavy duty contacts
Totally self-contained pump switch — no control panel required
Suitable for use in water and sewage applications
Epoxy sealed switch and cord conductors
Small enough to operate when space is limited
Adjustable pumping range
Not sensitive to rotation (no “up” side) or turbulence
Piggyback plug (where applicable) allows manual operation
Non-corrosive PVC plastic float
Flexible 16 gauge (12 gauge on RFSN-20), 2 conductor, UL/CSA SJOW neoprene, water-resistant cord
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Specifications
| Product Weight | 5.5 lbs. |
| Cord Length | 360 in. |
| Voltage | 125, 250 |
| Amperage | 20 |
| Frequency | 50, 60 Hertz |
| Horsepower | 1.5, 3 |
| Certifications | UL, CSA |
| Switch Type | Float |
