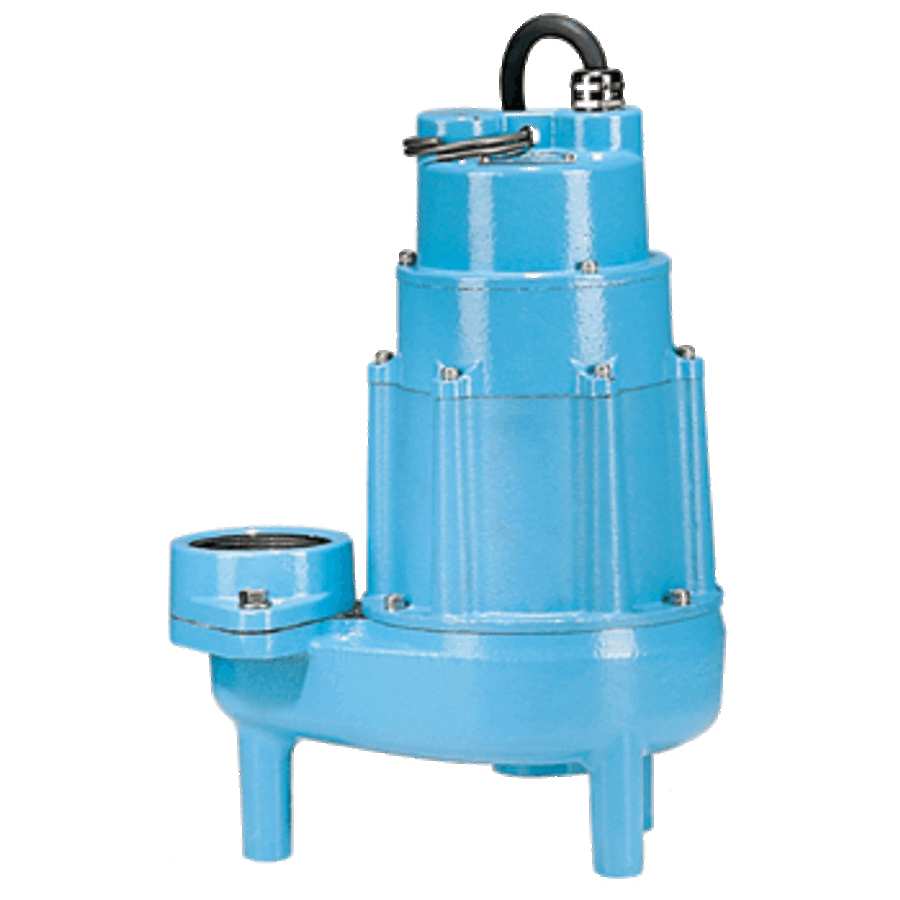

The 20E Series submersible effluent pumps from Little Giant are specifically engineered to handle the tough demanding tasks of wastewater and effluent waste transfer with high efficiency and long term dependability. Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands.
Product Features:
2 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 3/4″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Non-clog
Impeller made from: Brass
Switch Type: Manual
Triple phase operation
20′ Cord included
UL/CSA listed
Product Specifications:
2 Horse Power
Voltage: 200V-208V
13.1 Amp maximum operation
2″ Discharge diameter
Length: 12-9/10″
Width: 8-2/5″
Height: 17-1/10″
Flow rates (GPH: gallons-per-hour):
At 20 feet of head: 135
At 30 feet of head: 125
At 40 feet of head: 110
At 60 feet of head: 89
At 80 feet of head: 62
Shut Off (maximum head height): 110′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant 20E Collection
Specifications
| Height | 17.75 in. |
| Width | 8.42 in. |
| Depth | 12.92 in. |
| Product Weight | 92 lbs. |
| Length | 12.93 in. |
| Water Connection | 2" |
| Discharge Diameter | 2 in. |
| Cord Length | 240 in. |
| Flow Rate by Feet of Head | 110 gal / 40 ft, 135 gal / 20 ft, 89 gal / 60 ft, 62 gal / 80 ft, 125 gal / 30 ft |
| Maximum Diameter Solids | .75, 0.75 in. |
| Maximum Head Height | 110 in. |
| Minimum Head Height | 20 in. |
| Shut Off Height | 110 in. |
| Shut Off Pressure | 47.6 |
| Water Pressure (Max) | 47.6 PSI |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Configuration | Sump / Effluent Pump |
| Switch Type | Manual |
| Automatic | No |
| Impeller Material | Brass |
| Material Casing | Iron |
| Material Housing | Iron |
| Shutoff Head in Feet | 110 |
| Submersible | Yes |
| Approved for Commercial Use | Yes |
| Certifications | UL, CSA |
| Frequency | 60 Hertz |
| Voltage | 200, 208 |
| Amperage | 13.1 |
| Electrical Phases | 3 |
| Horsepower | 2 |
| Maximum Fluid Temperature | 140 °F |
