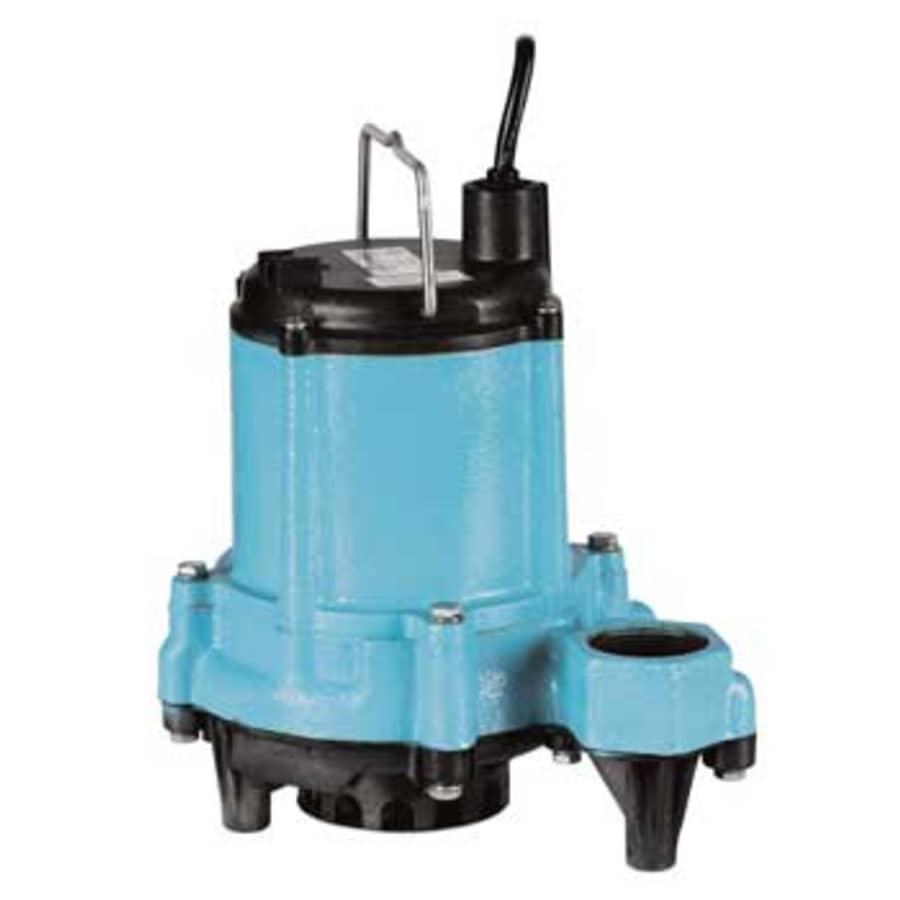

The Little Giant 6EN Series pumps feature 1/3 HP permanent split capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler running for durability. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Product Features:
1/3 Horse Power with overload protection
New cooler running motor which extends the life of the pump
Designed for continuous duty
Covered by 12 month limited warranty
Handles 1/2″ solids
Cover made from: Cast iron
Housing made from: Cast iron
Impeller Type: Vortex
Impeller made from: Nylon
Switch Type: Manual
Single phase operation
20′ Cord included
Product Specifications:
1/3 Horse Power
Voltage: 230V
3.0 Amp maximum operation
1-1/2″ Discharge diameter
Length: 8-3/4″
Width: 8-1/2″
Height: 9-9/10″

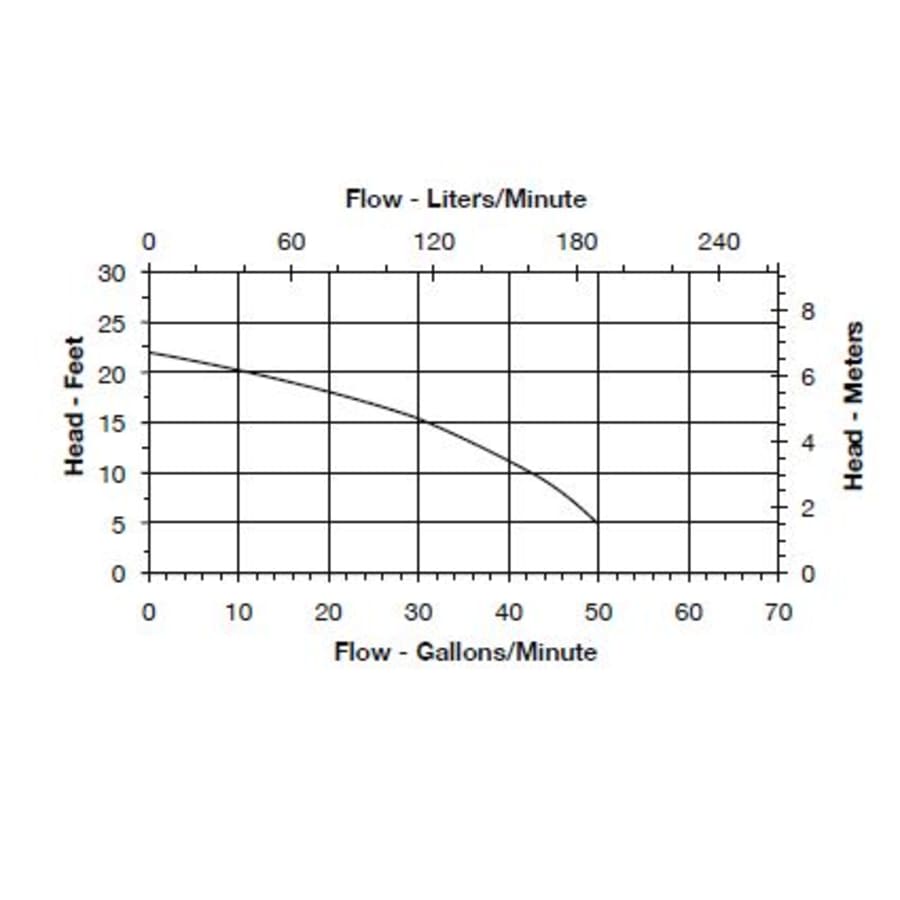

Flow rates (GPH: gallons-per-hour):
At 5 feet of head: 50
At 10 feet of head: 42
At 15 feet of head: 30
Shut Off (maximum head height): 22′
Additional Little Giant Links
View the Manufacturer Warranty
Browse all Little Giant Products
Little Giant 6EN Collection
Specifications
| Approved for Commercial Use | Yes |
| Height | 9.87 in. |
| Width | 8.5 in. |
| Length | 8.75 in. |
| Water Connection | 1-1/2" |
| Cord Length | 240 in. |
| Discharge Diameter | 1.5 in. |
| Maximum Head Height | 22 in. |
| Minimum Head Height | 5 in. |
| Water Pressure (Max) | 9.5 PSI |
| Material | Cast Iron |
| Water Connection Type | NPT |
| Switch Type | Manual |
| Impeller Material | Nylon |
| Material Casing | Iron, Plastic |
| Material Housing | Iron |
| Voltage | 230 |
| Amperage | 3 |
| Electrical Phases | 1 |
| Horsepower | .34 |
| Maximum Fluid Temperature | 140 °F |
